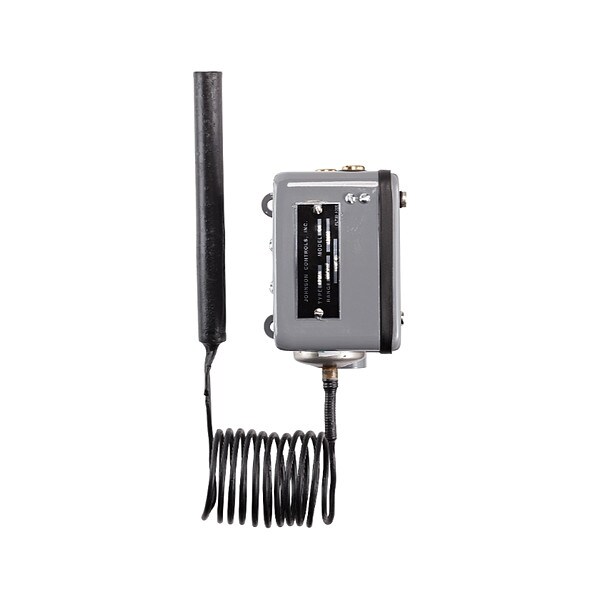

Line Volt Mechanical Tstat, Close on Rise, 25 Degrees to 90 Degrees F, DPST, 120 to 600V AC
| Switch Action | Close on Rise |
|---|---|
| Voltage | 120 to 600V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 4 Degrees to 25 Degrees F |
| Number of Relay Inputs | 2 |
| Thermostat Control Range | 25 to 90 deg F |
| Switch Type | DPST |
| Color | Gray |
| Width | 3-1/8 in |
| Height | 4-1/16 in |
| Enclosure Type | Steel, Weather Resistant |
| Capillary Length | 72 in |
| Resistive Amps @ 208VAC | 24 A |
| Sensing Bulb Length | 6-7/8 in |
| Remote Sensing Bulb Included | Yes |
| Inductive Amps @ 240V | 15 A, 24 A |
| Remote Sensing Capability | Yes |
| Contact Rating Resistive @ 120V | 24 A |
| Number of Switches | 2 |
| Thermostat Heating/Cooling | Heating, Cooling |
| Full Load Amps @ 120VAC | 24 A |
| Thermostat Switch Type | DPST |
| Item | Line Volt Mechanical Tstat |
| Thermostat Programmable | No |
| Inductive Amps @ 120V | 24 A |
| Thermostat Voltage | 120 to 600 V AC |
| Includes | Remote Sensing Bulb |
| Inductive Amps @ 208V | 24 A |
| Full Load Amps @ 240VAC | 24 A |
| Locked Rotor Amps @ 120V | 144 A |
| Mounting Type | Flat Surface |
| Control Range | 25 to 90 deg F |
| Sensing Bulb Dia. | 3/4 in |
| Pilot Duty Contacts (VA) | 125 VA |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Depth | 2-15/16 in |
| Standards | CSA LR948/1222 01, UL SA516 |
| Locked Rotor Amps @ 240V | 144 A |
| Temp. Sensitivity | +/-2 deg F |
| Contact Rating Resistive @ 240V | 24 A |
| Application | Cool Only |
| Thermostat Type | Weatherproof Single-Stage Controls |
| Number of Relay Outputs | 2 |
| Mounting | Flat Surface |
| For Use With | Cooling Towers and Evaporative Condensers |
| Phase | 1, 2, 3 |
| Control Type | Screwdriver |
| Overall Depth | 3 in |
| Temperature Scale | Fahrenheit, Celsius |
| Maximum Operating Temperature | 150 deg F |
| Pilot Duty Rating | 125 VA @ 120 to 600V AC, 57.5 VA @ 120 to 300V DC |
| Enclosure Finish | Baked Enamel |
| Full Load Amps @ 240V AC | 24 A |
| Overall Width | 3-1/8 in |
| Switch Type/Action | DPST on Rise |
| Stages | 1C |
| Temperature Sensitivity | +/-2 deg F |
| Temperature Control Range | 25 to 90 deg F |
| Contact Rating | 120V AC, 208V AC, 220V AC, 240V AC |
| Electrical Connection Type | Hardwired |
| Differential Type | Adjustable |
| Overall Height | 4-1/8 in |
| Capillary Length/Bulb Diameter | 6 ft Capillary, 6 3/4 in x 11/16 in Bulb |
| Number of Cooling Stages | 1 |
| Temperature Differential | 4 Degrees to 25 Degrees F |
| Minimum Control Temperature | 25 deg F |
| Enclosure Color | Gray |
| Full Load Amps @ 120V AC | 24 A |
| Contact Type | Snap Action |
| Changeover Type | Manual |
| Operating Temperature Range | -65 to 150 deg F |
| Compatible System Type | Cooling Tower, Motorized Valves, Solenoid Operated Valves |
| Mounting Hole Diameter | 1/4 in, 3/8 in |
| Enclosure Material | Steel |
| Number of Poles | 2 |
| Sensor Location | Remote |
| Minimum Operating Temperature | -65 deg F |
| Maximum Control Temperature | 90 deg F |
| Bulb Length | 6-3/4 in |
| Number of Heating Stages | 1 |
| Bulb Diameter | 3/4 in |
| Resistive Amps @ 208V AC | 24 A |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
