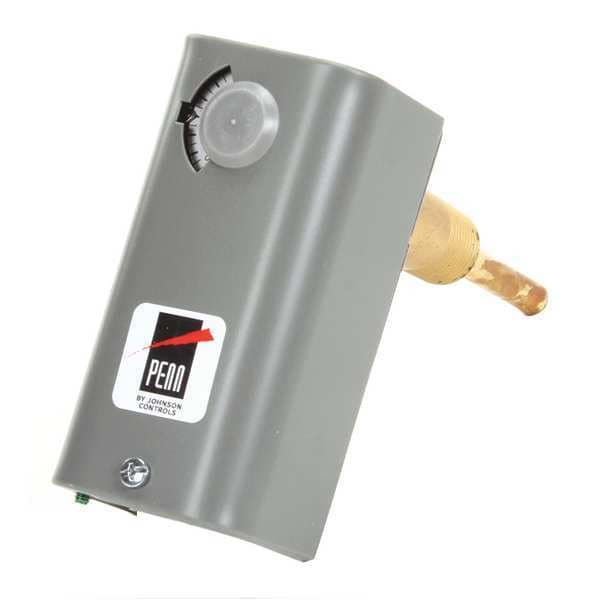

Line Volt Mechanical Tstat, Close on Rise, -30 Degrees to 100 Degrees F, SPST, 120 to 277 V AC
| Switch Action | Close on Rise |
|---|---|
| Voltage | 120 to 277 V AC |
| Sensor Type | Bulb |
| Differential | 3 Degrees to 12 Degrees F |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | -30 to 100 deg F |
| Switch Type | SPST |
| Color | Gray |
| Width | 2-1/8 in |
| Height | 4-3/8 in |
| Inductive Amps @ 120V | 16 A |
| Remote Sensing Capability | Yes |
| Locked Rotor Amps @ 240V | 48 A |
| Remote Sensing Bulb Included | Yes |
| Thermostat Programmable | No |
| Inductive Amps @ 240V | 8 A |
| Inductive Amps @ 208V | 9.2 A |
| Thermostat Switch Type | SPST |
| Full Load Amps @ 120VAC | 16 A |
| Thermostat Heating/Cooling | Cooling |
| Sensing Bulb Dia. | 3/8 in |
| Depth | 1-13/16 in |
| Enclosure Type | Galvanized/Steel |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Contact Rating Resistive @ 277V | 22 A |
| Thermostat Voltage | 120 to 277 V AC |
| Item | Line Volt Mechanical Tstat |
| Number of Switches | 1 |
| Pilot Duty Contacts (VA) | 125 VA |
| Capillary Length | 72 in |
| Standards | CSA LR948/4813 02, UL E6688 |
| Resistive Amps @ 208VAC | 22 A |
| Full Load Amps @ 240VAC | 8 A |
| Contact Rating Resistive @ 120V | 22 A |
| Mounting Type | Flat Surface |
| Sensing Bulb Length | 5 in |
| Contact Rating Resistive @ 240V | 22 A |
| Temp. Sensitivity | +/-2 deg F |
| Locked Rotor Amps @ 120V | 96 A |
| For Use With | HVAC/R Applications |
| Input Voltage | 120 to 277VAC |
| Mounting | Flat Surface |
| Control Range | -30 to 100 deg F |
| Overall Length | 4-3/8 in |
| Thermostat Type | Single Stage Electromechanical Temperature Control |
| Application | Cool Only |
| Agency Compliance | UL E6688; CSA LR948/4813 02 |
| Number of Relay Outputs | 1 |
| Type | Heating/Cooling |
| Control Type | Screwdriver |
| Voltage Range | 120 to 277 VAC |
| Overall Height | 4-3/8 in |
| Overall Width | 2-1/8 in |
| Number of Poles | 1 |
| Stages | 1C |
| Number of Cooling Stages | 1 |
| Programming Capability | Not Programmable |
| Contact Rating | 120V AC, 240V AC |
| Compatible System Type | Electric Cooling |
| Temperature Control Range | -30 to 100 deg F |
| Overall Depth | 1-13/16 in |
| Temperature Sensitivity | +/-2 deg F |
| Pilot Duty Rating | 125 VA (24 to 600 VAC) |
| Temperature Differential | +3 to +12 Degrees F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
