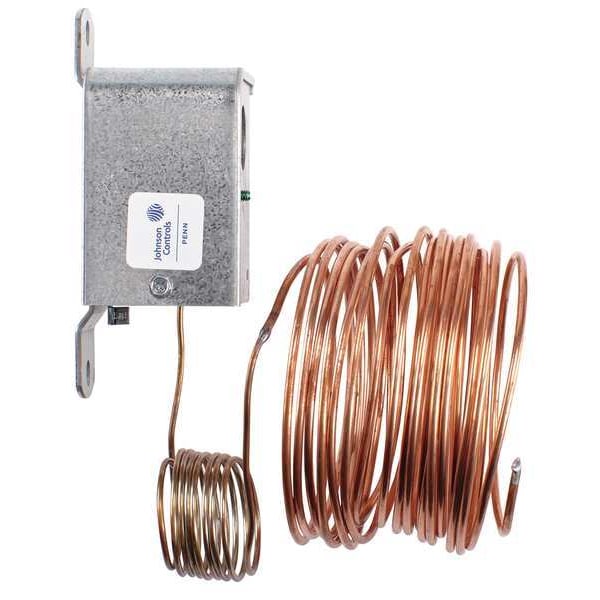

Line Volt Mechanical Tstat, Close on Rise, 35 Degrees to 45 Degrees F, SPST, 24 to 277V AC
| Switch Action | Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | Manual |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 35 to 45 deg F |
| Switch Type | SPST |
| Color | Galvanized |
| Width | 2-1/8 in |
| Height | 3-1/8 in |
| Sensing Bulb Length | 4 ft |
| Thermostat Programmable | No |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Pilot Duty Contacts (VA) | 125 VA |
| Thermostat Switch Type | SPST |
| Locked Rotor Amps @ 120V | 96 A |
| Number of Switches | 1 |
| Inductive Amps @ 208V | 9.2 A |
| Full Load Amps @ 240VAC | 8 A |
| Remote Sensing Bulb Included | Yes |
| Thermostat Voltage | 24 to 277 V AC |
| Control Range | 35 to 45 deg F |
| Resistive Amps @ 208VAC | 9.6 A |
| Full Load Amps @ 120VAC | 15 A |
| Standards | CSA LR948/361-E-0.2, UL SA516 |
| Inductive Amps @ 240V | 8 A |
| Locked Rotor Amps @ 240V | 48 A |
| Mounting Type | Flat Surface |
| Item | Line Volt Mechanical Tstat |
| Thermostat Heating/Cooling | Cooling |
| Contact Rating Resistive @ 240V | 8 A |
| Depth | 2-3/8 in |
| Inductive Amps @ 120V | 16 A |
| Sensing Bulb Dia. | 1/8 in |
| Contact Rating Resistive @ 277V | 6.93 A |
| Contact Rating Resistive @ 120V | 16 A |
| Capillary Length | 48 in |
| Enclosure Type | Galvanized/Steel |
| Includes | Mounting Hardware |
| Remote Sensing Capability | Yes |
| Thermostat Type | Freeze Protection Indoor Single-Stage Controls |
| Mounting | Flat Surface |
| Number of Relay Outputs | 1 |
| For Use With | Low Temperature Cut Out for Coil Protection and Pipe Liquid Sensing |
| Application | Heat or Cool |
| Control Type | Screwdriver |
| Minimum Operating Temperature | 0 deg F |
| Contact Type | Snap Action |
| Compatible System Type | Pipes, Cooling Coils, Hydronic Coils |
| Temperature Scale | Fahrenheit, Celsius |
| Full Load Amps @ 240V AC | 8 A |
| Full Load Amps @ 120V AC | 16 A |
| Enclosure NEMA Rating | 1 |
| Capillary Length/Bulb Diameter | 4 ft Capillary, 20 ft x 1/8 in Bulb |
| Maximum Operating Temperature | 140 deg F |
| Sensor Location | Remote |
| Overall Height | 3-1/8 in |
| Resistive Amps @ 208V AC | 9.2 A |
| Mounting Hole Diameter | 1/4 in |
| Number of Poles | 1 |
| Electrical Connection Type | Hardwired |
| Enclosure Material | Steel |
| Pilot Duty Rating | 125 VA @ 24 to 277V AC |
| Operating Temperature Range | 0 to 140 deg F |
| Mounting Direction | Vertical, Horizontal |
| Overall Depth | 2-3/8 in |
| Overall Width | 2-1/8 in |
| Temperature Differential | 12 Degrees F |
| Changeover Type | Manual |
| Minimum Control Temperature | 35 deg F |
| Bulb Diameter | 1/8 in |
| Temperature Control Range | 35 to 45 deg F |
| Differential Type | Manual Reset |
| Contact Rating | 120V AC, 240V AC, 277V AC |
| Maximum Control Temperature | 45 deg F |
| Bulb Length | 20 ft |
| Switch Type/Action | SPST on Rise |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
