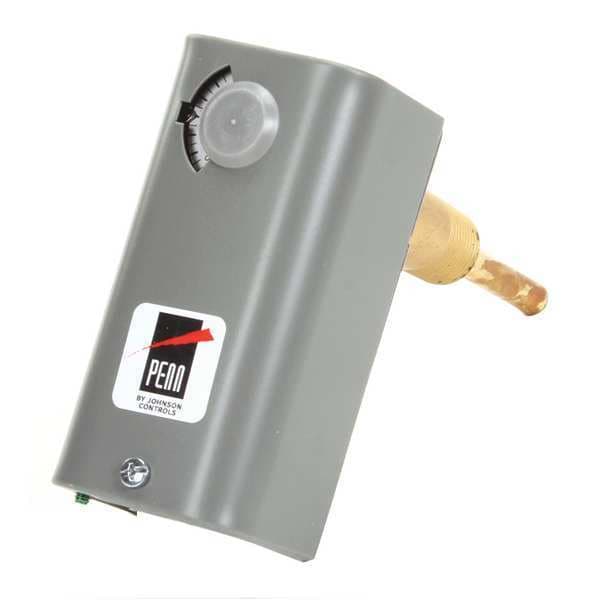

Line Volt Mechanical Tstat, Open on Rise, 200 Degrees to 550 Degrees F, SPST, 120 to 277V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 10 Degrees F |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 200 to 550 deg F |
| Switch Type | SPST |
| Color | Gray |
| Width | 2-1/8 in |
| Height | 4-3/8 in |
| Inductive Amps @ 120V | 16 A |
| Locked Rotor Amps @ 120V | 96 A |
| Includes | Bulb Mounting Clip |
| Thermostat Switch Type | SPST |
| Thermostat Programmable | No |
| Thermostat Voltage | 120 to 277 V AC |
| Inductive Amps @ 208V | 9.2 A |
| Item | Line Volt Mechanical Tstat |
| Contact Rating Resistive @ 120V | 22 A |
| Locked Rotor Amps @ 240V | 48 A |
| Number of Switches | 1 |
| Depth | 1-13/16 in |
| Contact Rating Resistive @ 240V | 22 A |
| Sensing Bulb Dia. | 3/16 in |
| Contact Rating Resistive @ 277V | 22 A |
| Thermostat Heating/Cooling | Heating |
| Resistive Amps @ 208VAC | 22 A |
| Remote Sensing Capability | Yes |
| Full Load Amps @ 240VAC | 8 A |
| Capillary Length | 96 in |
| Temp. Sensitivity | +2 to -3 Degrees F |
| Sensing Bulb Length | 6 in |
| Control Range | 200 to 550 deg F |
| Remote Sensing Bulb Included | Yes |
| Pilot Duty Contacts (VA) | 125 VA |
| Mounting Type | Flat Surface |
| Enclosure Type | Galvanized/Steel |
| Inductive Amps @ 240V | 8 A |
| Full Load Amps @ 120VAC | 15 A |
| Standards | CSA LR948/4813 02, UL E6688 |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| For Use With | High Temperature Heating/Oven |
| Number of Relay Outputs | 1 |
| Thermostat Type | High-Range Indoor Single-Stage Controls |
| Application | Heat or Cool |
| Mounting | Flat Surface |
| Features | Line Voltage Components Switch Box Mounted Which Provides Isolation of Electrical Circuit From Sensing Element, Mounting Plate Allows Easy Mounting and Wiring without Removing the Cover, Enclosed Pennswitch Provides Dust Protection for Contacts |
| Control Type | Convertible |
| Overall Height | 4-3/8 in |
| Overall Width | 2-1/8 in |
| Temperature Sensitivity | -3 deg F, 5 deg F |
| Contact Type | Snap Action |
| Number of Heating Stages | 1 |
| Bulb Diameter | 1/4 in |
| Temperature Differential | 10 Degrees F |
| Full Load Amps @ 240V AC | 8 A |
| Electrical Connection Type | Hardwired, Screw Terminal |
| Compatible System Type | Hot Water Heating Controls |
| Resistive Amps @ 208V AC | 22 A |
| Temperature Scale | Fahrenheit, Celsius |
| Bulb Length | 6 in |
| Changeover Type | Manual |
| Capillary Length/Bulb Diameter | 8 ft Capillary, 6 in x 3/16 in Bulb |
| Maximum Operating Temperature | 620 deg F |
| Differential Type | Fixed |
| Number of Poles | 1 |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC |
| Contact Rating | 120V AC, 208V AC, 240V AC |
| Sensor Location | Remote |
| Enclosure Color | Gray |
| Number of Cooling Stages | 1 |
| Full Load Amps @ 120V AC | 16 A |
| Maximum Control Temperature | 550 deg F |
| Stages | 1H, 1C |
| Switch Type/Action | Open, SPST on Rise |
| Minimum Operating Temperature | -35 deg F |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | 1 |
| Temperature Control Range | 200 to 550 deg F |
| Overall Depth | 1-7/8 in |
| Minimum Control Temperature | 200 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
