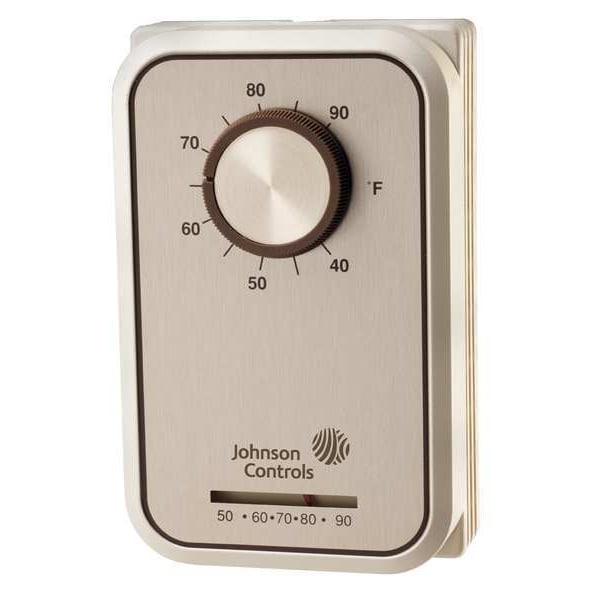

Line Volt Mechanical Tstat, Open on Rise, wall, 40 Degrees to 90 Degrees F, SPST, 24 to 277V AC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Temperature |
| Differential | 1 Degrees F |
| Display Type | Analog |
| Number of Relay Inputs | 0 |
| Thermostat Control Range | 40 to 90 deg F |
| Mounting Location | Wall |
| Switch Type | SPST |
| Color | Dark Brown/Light Brown |
| Width | 2-25/32 in |
| Height | 5-3/16 in |
| Control Range | 40 to 90 deg F |
| Locked Rotor Amps @ 240V | 18 A |
| Mounting Type | Vertical |
| Locked Rotor Amps @ 120V | 36 A |
| Enclosure Type | Steel |
| Inductive Amps @ 120V | 6 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Full Load Amps @ 120VAC | 15 A |
| Remote Sensing Bulb Included | No |
| Pilot Duty Contacts (VA) | 125 VA |
| Depth | 2-19/32 in |
| Remote Sensing Capability | No |
| Thermostat Heating/Cooling | Heating |
| Full Load Amps @ 240VAC | 3 A |
| Item | Line Volt Mechanical Tstat |
| Inductive Amps @ 240V | 3 A |
| Thermostat Switch Type | SPST |
| Standards | UL E6688 |
| Thermostat Programmable | No |
| Thermostat Voltage | 24 to 277 V AC |
| Number of Switches | 1 |
| Mounting | Wall |
| Agency Compliance | UL E6688 |
| Number of Relay Outputs | 0 |
| Overall Length | 5-13/64 in |
| For Use With | Suitable for Temperature Control in Heating, Ventilating, Air Conditioning, Refrigeration Applications |
| Thermostat Type | Line Voltage |
| Application | Heat Only |
| Features | The Liquid Charged Temperature Sensing Element and Highly Efficient Diaphragm and Leverage Provide Close Temperature Control |
| Voltage Range | 24 to 277 VAC |
| Type | Heating |
| Control Type | Exposed Dial |
| Number of Poles | 1 |
| Number of Heating Stages | 1 |
| Electrical Connection Type | Screw Terminal |
| Switch Positions | Auto-Off |
| Contact Type | Snap Action |
| Temperature Differential | 1 Degrees F |
| Full Load Amps @ 240V AC | 3 A |
| Enclosure Color | Brown |
| Temperature Scale | Fahrenheit, Celsius |
| Overall Depth | 2-5/8 in |
| Fan Settings | No Fan Setting |
| Temperature Readout | No |
| Contact Rating | 120V AC, 208V AC, 240V AC, 277V AC |
| Minimum Control Temperature | 40 deg F |
| Housing Material | Steel |
| Maximum Control Temperature | 90 deg F |
| Compatible System Type | Electric Heating |
| Overall Height | 5-3/16 in |
| Remote Control Functions | No Remote Control Included |
| Mounting Direction | Vertical |
| Temperature Control Range | 40 to 90 deg F |
| System Settings | On-Off |
| Overall Width | 2-13/16 in |
| Full Load Amps @ 120V AC | 6 A |
| Housing Color | White, Black |
| Differential Type | Fixed |
| Stages | 1H |
| Pilot Duty Rating | 125 VA |
| Includes Positive Off | Yes |
| Switch Type/Action | Open, SPST on Rise |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
