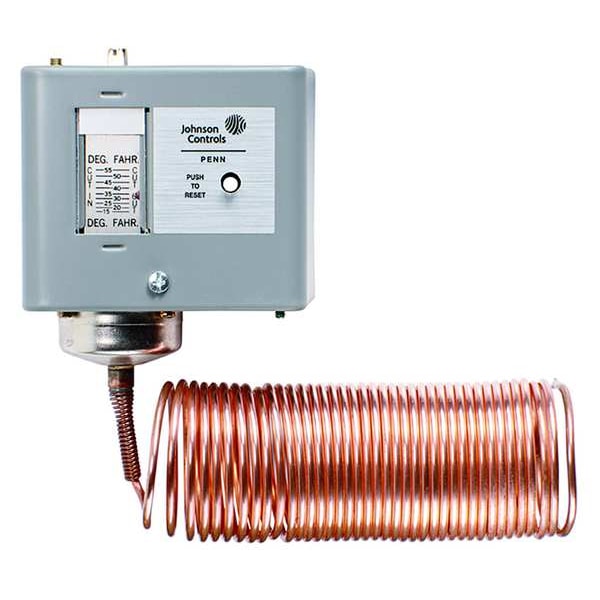

Line Volt Mechanical Tstat, Open/Close on Rise, 15 Degrees to 55 Degrees F, DPST, 120 to 600V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 600V AC |
| Sensor Type | Gas Filled Bulb |
| Differential | 2 Degrees F |
| Number of Relay Inputs | 2 |
| Thermostat Control Range | 15 to 55 deg F |
| Switch Type | SPST |
| Color | Gray |
| Width | 6-1/4 in |
| Height | 8-1/4 in |
| Remote Sensing Capability | Yes |
| Sensing Bulb Dia. | 1/8 in |
| Sensing Bulb Length | 20 ft |
| Standards | UL Listed |
| Locked Rotor Amps @ 240V | 18 A, 48 A |
| Control Range | 15 to 55 deg F |
| Capillary Length | 20 ft |
| Number of Switches | 2 |
| Contact Rating Resistive @ 120V | 6 A, 16 A |
| Temp. Sensitivity | 1 deg F |
| Thermostat Programmable | No |
| Remote Sensing Bulb Included | Yes |
| Thermostat Switch Type | DPST |
| Locked Rotor Amps @ 120V | 36 A, 96 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Contact Rating Resistive @ 240V | 6 A, 8 A |
| Pilot Duty Contacts (VA) | 125 VA |
| Thermostat Heating/Cooling | Heating, Cooling |
| Resistive Amps @ 208VAC | Less Than 1 |
| Inductive Amps @ 120V | 16 A |
| Depth | 2-1/2 in |
| Thermostat Voltage | 24 to 240 V AC |
| Item | Line Volt Mechanical Tstat |
| Includes | Mounting Bracket |
| Inductive Amps @ 240V | 8 A |
| Full Load Amps @ 240VAC | 8 A |
| Full Load Amps @ 120VAC | 15 A |
| Inductive Amps @ 208V | 9.2 A |
| Enclosure Type | NEMA 1 |
| Mounting Type | Vertical |
| Number of Relay Outputs | 2 |
| For Use With | Heating/Cooling Coils |
| Thermostat Type | Two-Circuit Indoor Single-Stage Controls |
| Application | Heat and Cool |
| Contact Rating Resistive @ 277V | 6 A, 7.2 A |
| Mounting | Vertical |
| Control Type | Screwdriver |
| Features | Quick Acting Sensor |
| Overall Height | 8-1/4 in |
| Contact Rating | 120V AC, 208V AC, 240V AC, 277V AC, 480V AC, 600V AC |
| Overall Depth | 2-1/2 in |
| Capillary Length/Bulb Diameter | 20 ft Capillary, 20 ft x 1/8 in Bulb |
| Minimum Operating Temperature | 0 deg F |
| Overall Width | 6-1/4 in |
| Electrical Connection Type | Hardwired |
| Enclosure Finish | Baked Enamel |
| Enclosure Material | Steel |
| Pilot Duty Rating | 125 VA @ 120 to 600V AC, 57.5 VA @ 120 to 300V DC |
| Bulb Length | 20 ft |
| Sensor Location | Remote |
| Switch Type/Action | Open, Close, SPST on Rise |
| Full Load Amps @ 120V AC | 6 A, 16 A |
| Resistive Amps @ 208V AC | 6 A, 9.2 A |
| Stages | 1H, 1C |
| Compatible System Type | Heating Element, Refrigeration |
| Temperature Scale | Fahrenheit, Celsius |
| Number of Poles | 1 |
| Changeover Type | Manual |
| Contact Type | Snap Action |
| Enclosure Color | Gray |
| Number of Heating Stages | 1 |
| Enclosure NEMA Rating | 1 |
| Temperature Sensitivity | +/-1 deg F |
| Number of Cooling Stages | 1 |
| Maximum Operating Temperature | 170 deg F |
| Temperature Differential | 2 Degrees F |
| Differential Type | Manual Reset |
| Mounting Direction | Vertical |
| Maximum Control Temperature | 55 deg F |
| Mounting Hole Diameter | 1/4 in, 3/8 in |
| Temperature Control Range | 15 to 55 deg F |
| Bulb Diameter | 1/8 in |
| Minimum Control Temperature | 15 deg F |
| Full Load Amps @ 240V AC | 3 A, 8 A |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
