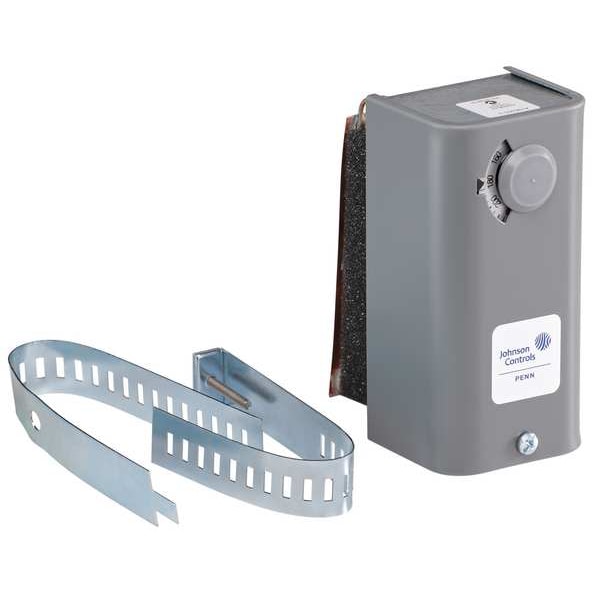

Line Volt Mechanical Tstat, Open/Close on Rise, 200 Degrees to 240 Degrees F, SPDT, 24 to 277V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Copper Bulb |
| Differential | 3.5 Degrees F |
| Number of Relay Inputs | 0 |
| Thermostat Control Range | 200 to 240 deg F |
| Switch Type | SPDT |
| Color | Gray |
| Width | 2-5/32 in |
| Height | 4-13/32 in |
| Thermostat Heating/Cooling | Heating, Cooling |
| Control Range | 200 to 240 deg F |
| Item | Line Volt Mechanical Tstat |
| Inductive Amps @ 120V | 6 A |
| Thermostat Programmable | No |
| Depth | 1-13/16 in |
| Temp. Sensitivity | +/-2 deg F |
| Includes | Adjustable Mounting Straps |
| Thermostat Switch Type | SPDT |
| Locked Rotor Amps @ 120V | 36 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Remote Sensing Bulb Included | No |
| Full Load Amps @ 240VAC | 3.4 A |
| Full Load Amps @ 120VAC | 15 A |
| Number of Switches | 1 |
| Contact Rating Resistive @ 240V | 3.4 A |
| Standards | C-tick, CSA LR948/4813 02, UL E6688 |
| Contact Rating Resistive @ 120V | 6 A |
| Sensing Bulb Dia. | 3/8 in |
| Enclosure Type | Single Gang Box |
| Mounting Type | Flat Surface |
| Pilot Duty Contacts (VA) | 125 VA |
| Inductive Amps @ 240V | 3.4 A |
| Remote Sensing Capability | No |
| Thermostat Voltage | 24 to 277 V AC |
| Locked Rotor Amps @ 240V | 20.4 A |
| Number of Relay Outputs | 0 |
| Thermostat Type | Line Voltage |
| Application | Heat and Cool |
| Control Type | Screwdriver, Knob |
| Temperature Control Range | 200 to 240 deg F |
| Sensor Location | Remote |
| Sensor Diameter | 3/8 in |
| Pilot Duty Rating | 125 A @ 24 to 277V AC |
| Enclosure Material | Steel |
| Full Load Amps @ 120V AC | 6 A |
| Mounting Direction | Vertical, Horizontal |
| Contact Type | Snap Action |
| Temperature Differential | 3.5 Degrees F |
| Contact Rating | 120V AC, 240V AC |
| Overall Width | 2-3/16 in |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Minimum Control Temperature | 200 deg F |
| Electrical Connection Type | Hardwired |
| Overall Height | 4-7/16 in |
| Differential Type | Adjustable |
| Number of Poles | 1 |
| Temperature Sensitivity | +/-2 deg F |
| Enclosure Color | Gray |
| Maximum Operating Temperature | 140 deg F |
| Full Load Amps @ 240V AC | 3.4 A |
| Overall Depth | 1-13/16 in |
| Maximum Control Temperature | 240 deg F |
| Enclosure NEMA Rating | NEMA 1 |
| Enclosure Finish | Baked Enamel |
| Temperature Scale | Fahrenheit |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
