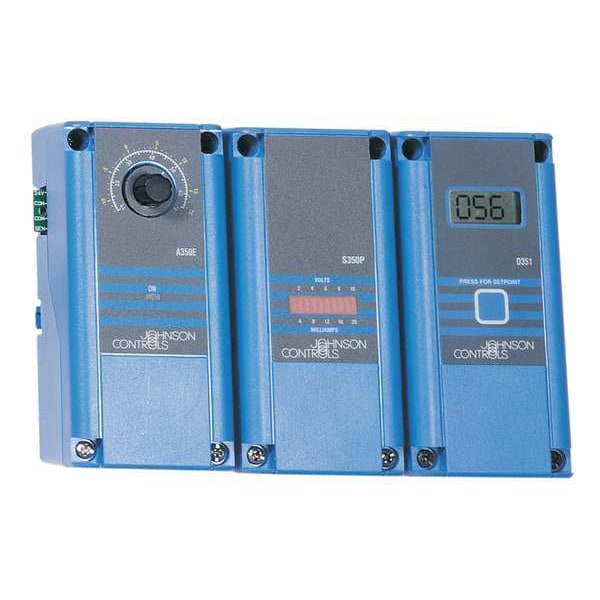

Reset Control, Close on Rise, Open on Rise, -30 Degrees to 212 Degrees F, SPDT, 120/240VAC
| Switch Action | Close on Rise, Open on Rise |
|---|---|
| Voltage | 120/240VAC |
| Sensor Type | A99 |
| Differential | 1 Degrees to 30 Degrees F |
| Display Type | Analog |
| Number of Relay Inputs | 1 |
| Switch Type | SPDT |
| Color | Blue |
| Width | 2-1/2 in |
| Height | 5 in |
| Thermostat Switch Type | SPDT |
| Enclosure Type | NEMA 1 |
| For Use With | A99 |
| Control Range | -30 to 212 deg F |
| Item | Reset Control |
| Includes | A99BC-25C Temperature Sensor |
| Number of Relay Outputs | 1 |
| Standards | cUL File E27734, cUL Guide No. XAPX7, UL Guide No. XAPX |
| Depth | 2-1/2 in |
| Voltage Range | 20 to 30V AC |
| Number of Stages | Dual |
| Number of Switches | 1 |
| Input Voltage | 20 to 30V AC |
| Application | Air Conditioning, Heating Control, Refrigeration |
| Mounting | DIN |
| Housing Color | Blue |
| Overall Width | 2-3/8 in |
| Ambient Humidity | 0% to 95% RH |
| Maximum Temperature Differential Setting | 30 deg F |
| Contact Form | SPST |
| Power Consumption | 3.2 VA |
| IP Rating | IP20 |
| NEMA Rating | 1 |
| Number of SPDT Outputs | Not Applicable |
| Compatible with Series | 350 |
| Product Type | Reset Control |
| Number of Sensors Included | 1 |
| Overall Height | 5 in |
| Number of Sensor Inputs | 1 |
| Overall Depth | 2-1/4 in |
| Housing Material | Thermoplastic |
| Minimum Control Temperature | 40 deg F |
| Variable Output Voltage | No |
| Maximum Control Temperature | 70 deg F |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Temperature Control Function | Cool, Heat |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
