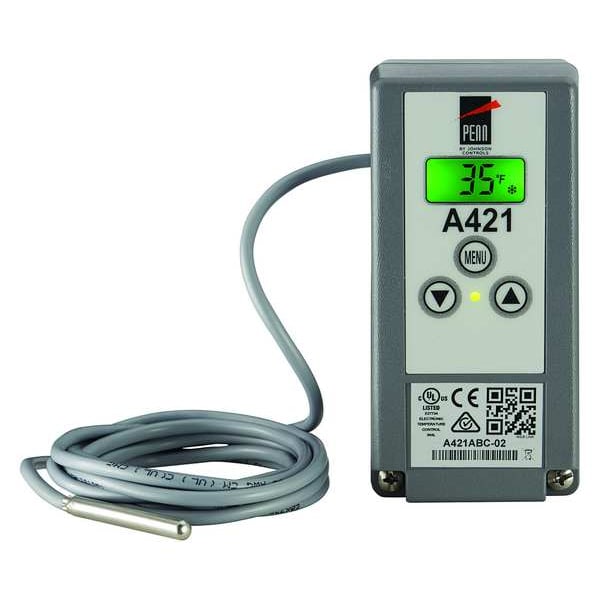

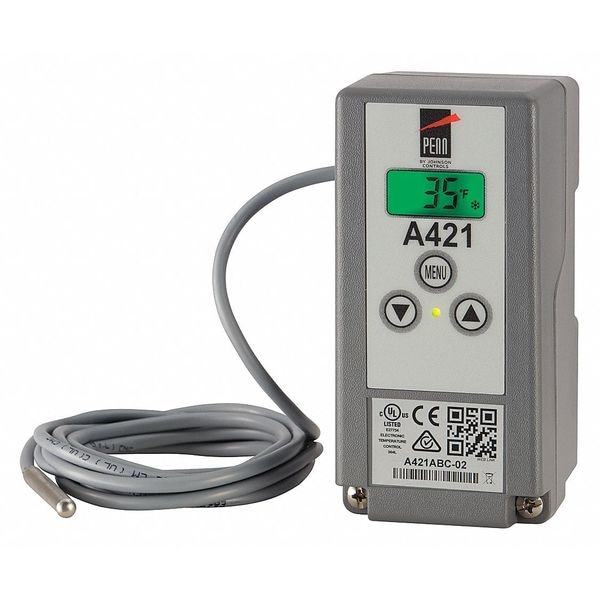

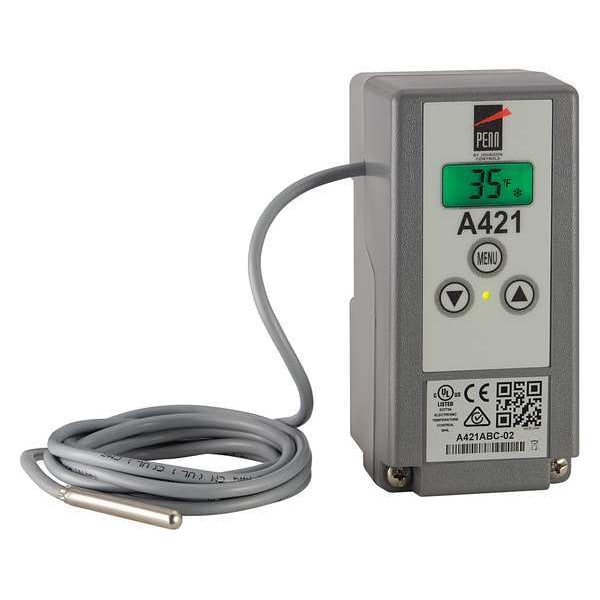

Temperature Control, Close on Rise, Open on Rise, -40 Degrees to 212 Degrees F, SPDT, 120/240VAC
| Switch Action | Close on Rise, Open on Rise |
|---|---|
| Voltage | 120/240VAC |
| Sensor Type | A99BB-400C |
| Differential | 1 Degrees to 30 Degrees F |
| Display Type | Digital |
| Number of Relay Inputs | 1 |
| Switch Type | SPDT |
| Color | Gray |
| Width | 2-3/8 in |
| Height | 5 in |
| Sensing Bulb Length | 2 in |
| Standards | CE, Class B Industry Canada (IC) Compliant to Canadian ICES-003, cULus, FCC CFR47, UL 60730 File E27734, Vol. 1 |
| Full Load Amps @ 120VAC | 16 A |
| Voltage Range | 120/240V AC |
| Sensing Bulb Dia. | 1/4 in |
| Number of Relay Outputs | 1 |
| Display Size | 1.5 x .5 sq in |
| Full Load Amps @ 240VAC | 8 A |
| Includes | A99BB-400C Temperature Sensor |
| Item | Temperature Control |
| Features | Removable Sensor with Screw Terminals, Keypad Lock Out, Sensor Failure, Adjustable Anti Short Cycle Delay |
| Control Range | -40 to 212 deg F |
| Display Color | Gray |
| For Use With | Suitable for Temperature Control In Heating, Cooling Applications |
| Depth | 2-3/8 in |
| Agency Compliance | C-UL listed, UL |
| Thermostat Switch Type | SPDT |
| Enclosure Type | NEMA 1 |
| Contact Rating Resistive @ 120V | 15 A |
| Input Voltage | 120V AC, 240V AC |
| Contact Rating Resistive @ 240V | 10 A |
| Contact Rating Resistive @ 277V | 10 A |
| Number of Stages | Single |
| Application | Boiler Control, Chiller Control, Fan Control, Cooling Control, Temperature Sensing and Control, Heating Control, Damper Control |
| Number of Switches | 1 |
| Display Width | 1/2 in |
| Maximum Temperature Differential Setting | 30 deg F |
| Resistive Load Current @ 240V | 10 A |
| Display Height | 1 1/2 in |
| Overall Height | 5 in |
| Maximum Control Temperature | 212 deg F |
| Overall Width | 2-3/8 in |
| Number of Sensors Included | 1 |
| IP Rating | IP20 |
| Minimum Control Temperature | -40 deg F |
| Resistive Load Current @ 120V | 15 A |
| Overall Depth | 2-3/8 in |
| NEMA Rating | 1 |
| Number of Sensor Inputs | 1 |
| Full Load Current @ 240V AC | 8 A |
| Temperature Control Function | Cool, Heat |
| Full Load Current @ 120V AC | 16 A |
| Horsepower @ 240V AC | 1 HP |
| Contact Form | SPDT |
| Number of SPDT Outputs | 1 |
| Ambient Humidity | 0% to 95% RH |
| Horsepower @ 120V AC | 1 HP |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Housing Material | Silicon |
| Power Consumption | 1.8 VA |
| Sensing Bulb Diameter | 1/4 in |
| Variable Output Voltage | No |
| Compatible with Series | A99 |
| Product Type | Temperature Control |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
