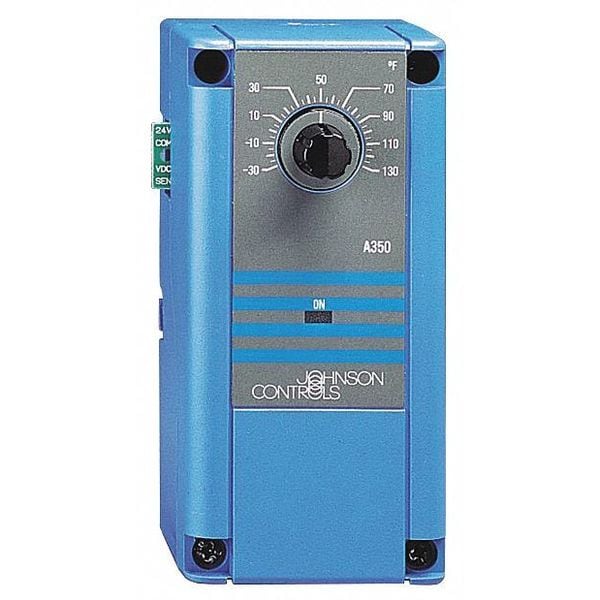

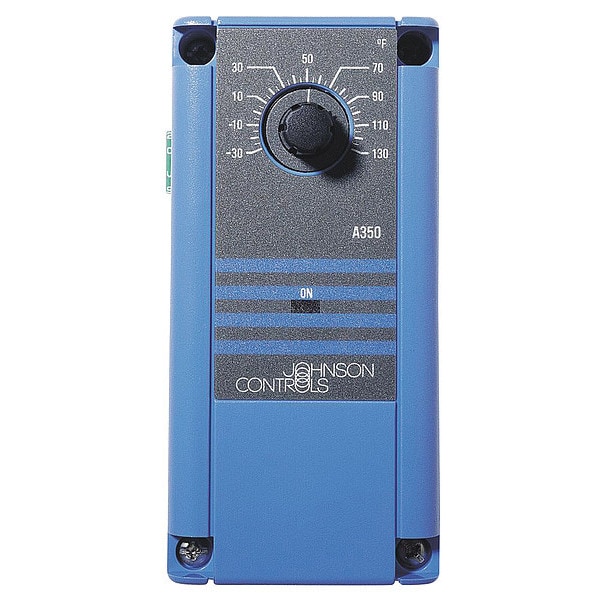

Temperature Control, Close on Rise, Open on Rise, 90 Degrees to 250 Degrees F, SPDT, 120/240VAC
| Switch Action | Close on Rise, Open on Rise |
|---|---|
| Voltage | 120/240VAC |
| Sensor Type | A99BC-25C |
| Differential | 1 Degrees to 30 Degrees F Adjustable |
| Display Type | Analog |
| Number of Relay Inputs | 1 |
| Switch Type | SPDT |
| Color | Blue |
| Width | 2-1/2 in |
| Height | 5 in |
| For Use With | A99 |
| Control Range | 90 to 250 deg F |
| Enclosure Type | NEMA 1 |
| Depth | 2-1/2 in |
| Number of Relay Outputs | 2 |
| Full Load Amps @ 120VAC | 9.8 A |
| Item | Temperature Control |
| Includes | A99BC-25C Temperature Sensor |
| Full Load Amps @ 240VAC | 4.9 A |
| Voltage Range | 20 to 30V AC |
| Standards | CCN XAPX, UL |
| Thermostat Switch Type | SPDT |
| Mounting | DIN |
| Number of Stages | Single |
| Input Voltage | 120V AC, 240V AC |
| Number of Switches | 1 |
| Application | Beverage Coolers, Chiller Control, Cooling Tower Control, Refrigeration, Temperature Sensing and Control |
| Number of Sensor Inputs | 1 |
| Overall Height | 5 in |
| Ambient Humidity | 0% to 95% RH |
| Horsepower @ 240V AC | 0.5 HP |
| Minimum Control Temperature | 90 deg F |
| Full Load Current @ 120V AC | 9.8 A |
| Variable Output Voltage | No |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Maximum Control Temperature | 250 deg F |
| Number of Sensors Included | 1 |
| Horsepower @ 120V AC | 0.5 HP |
| Product Type | Temperature Control |
| Full Load Current @ 240V AC | 4.9 A |
| Overall Width | 2-3/8 in |
| Temperature Control Function | Cool, Heat |
| IP Rating | IP20 |
| Maximum Temperature Differential Setting | 30 deg F |
| Contact Form | SPDT |
| Number of SPDT Outputs | 2 |
| Housing Material | Silicon |
| NEMA Rating | 1 |
| Power Consumption | 1.4 VA |
| Compatible with Series | 350 |
| Resistive Load Current @ 240V | 29.4 A |
| Overall Depth | 2-1/2 in |
| Resistive Load Current @ 120V | 58.8 A |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
