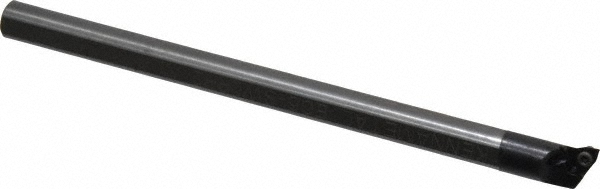

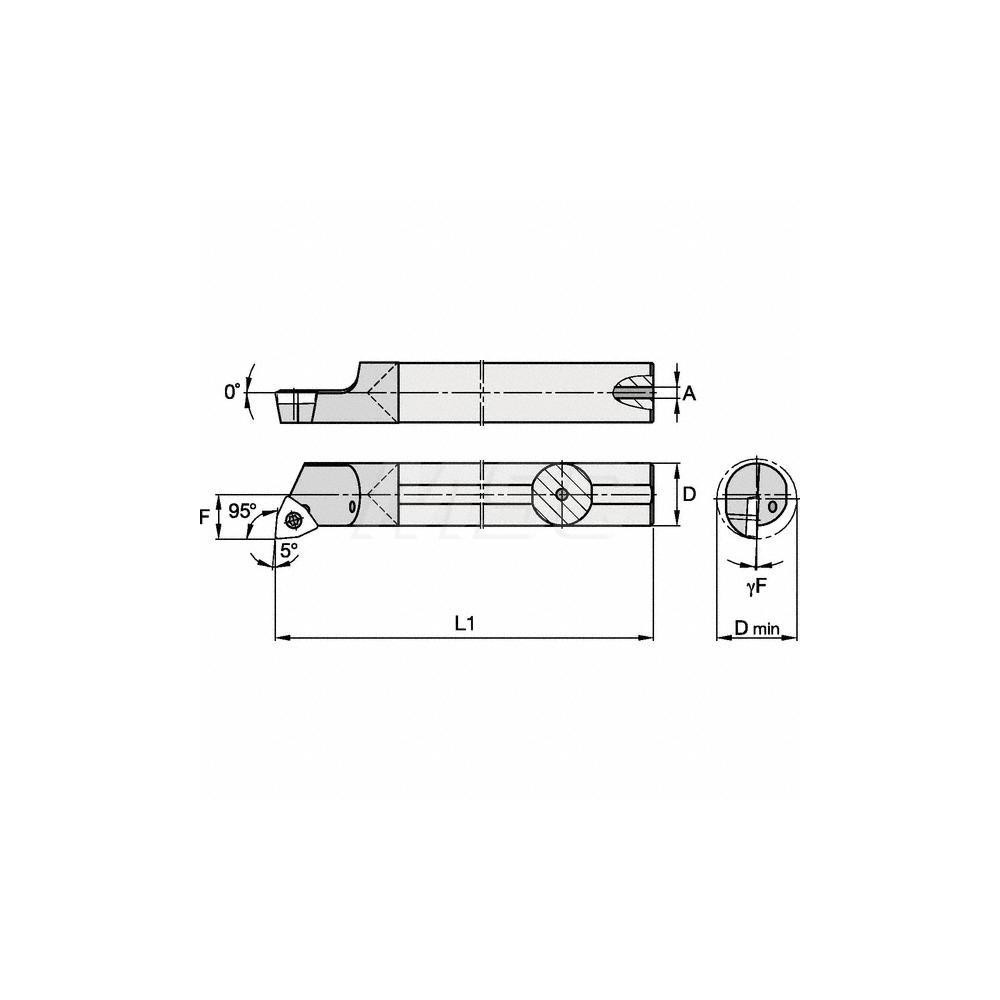

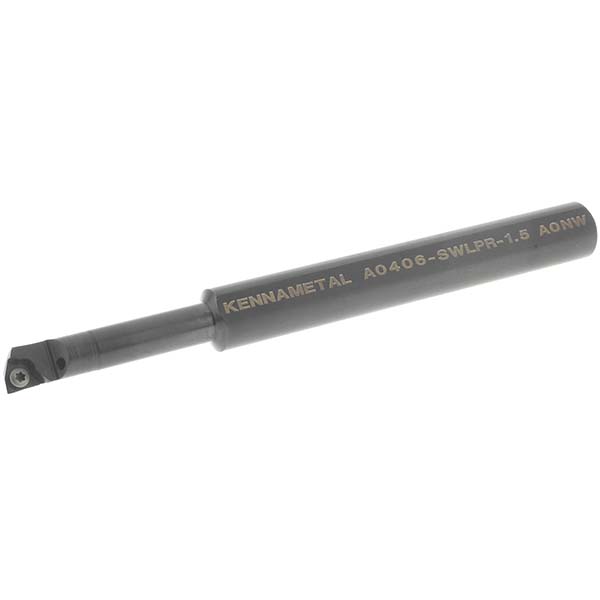

101.60 mm OAL, Screw, Uses WP.. Inserts
| Minimum Bore Diameter (mm) | 8.15 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3210 |
| Toolholder Style | E-SWLP |
| Tool Material | Solid Carbide |
| Insert Compatibility | WP.. |
| Shank Diameter (mm) | 6.35 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (mm) | 101.60 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -3 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.1560 |
| Center to Cutting Edge (Decimal Inch) | 0.1560 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 5/64 |
| Coolant Hole Diameter (Decimal Inch) | 0.0470 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 86461324 |
