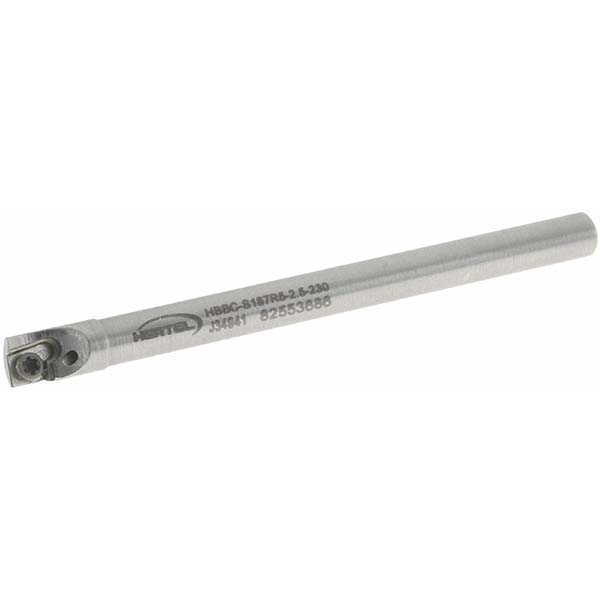

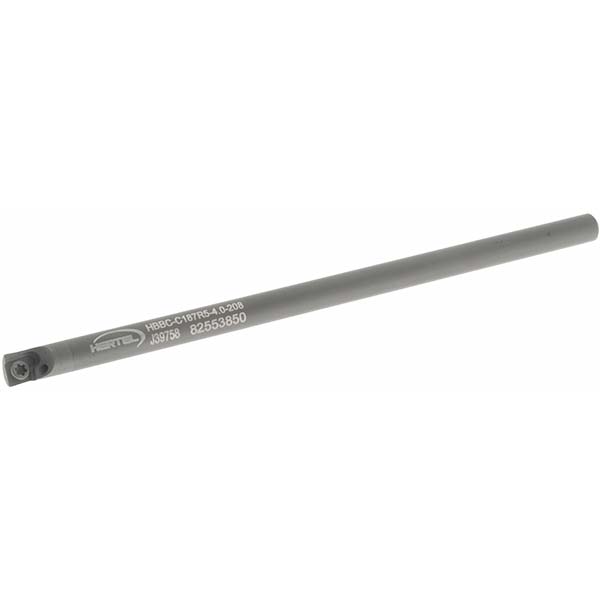

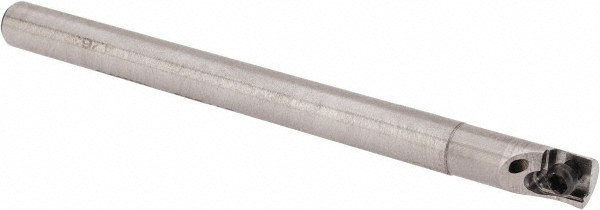

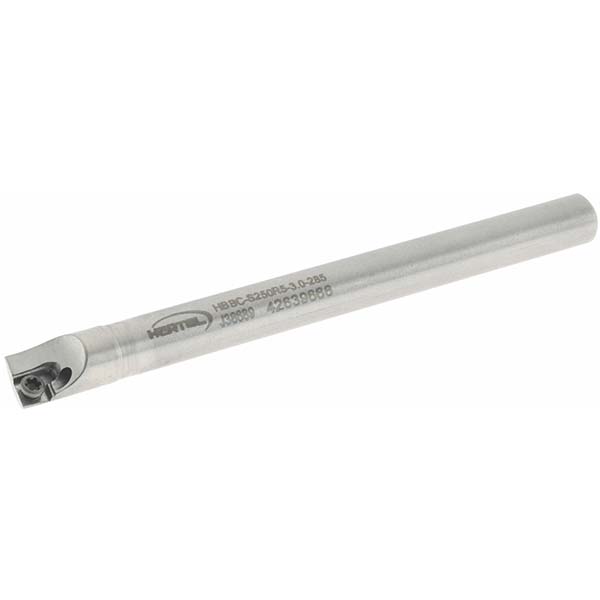

2.5000" OAL, Screw, Uses CD.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.2300 |
|---|---|
| Toolholder Style | A-SCLD |
| Tool Material | Steel |
| Insert Compatibility | CD.. |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 2.5000 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 5.00 |
| Lead Angle | 5 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.1160 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 1/4 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 73009854 |
