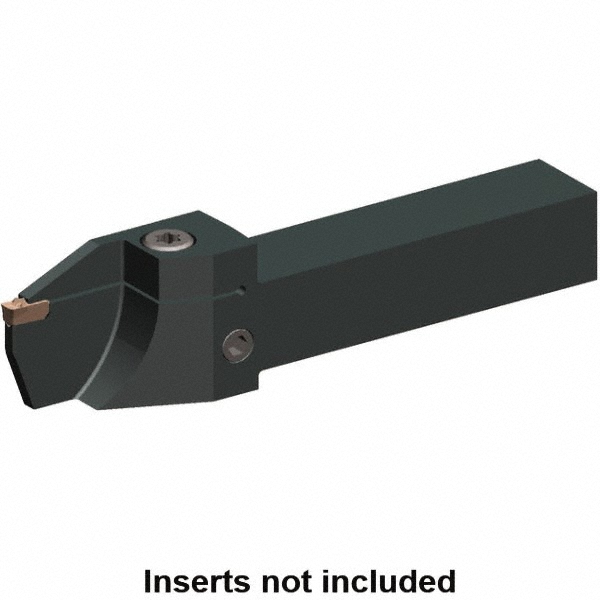

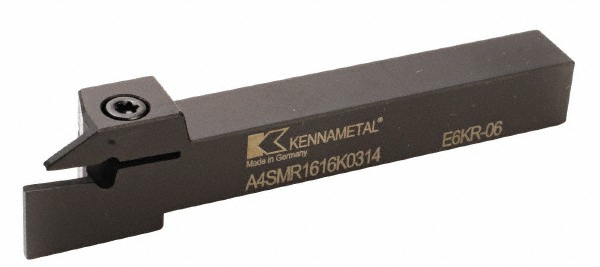

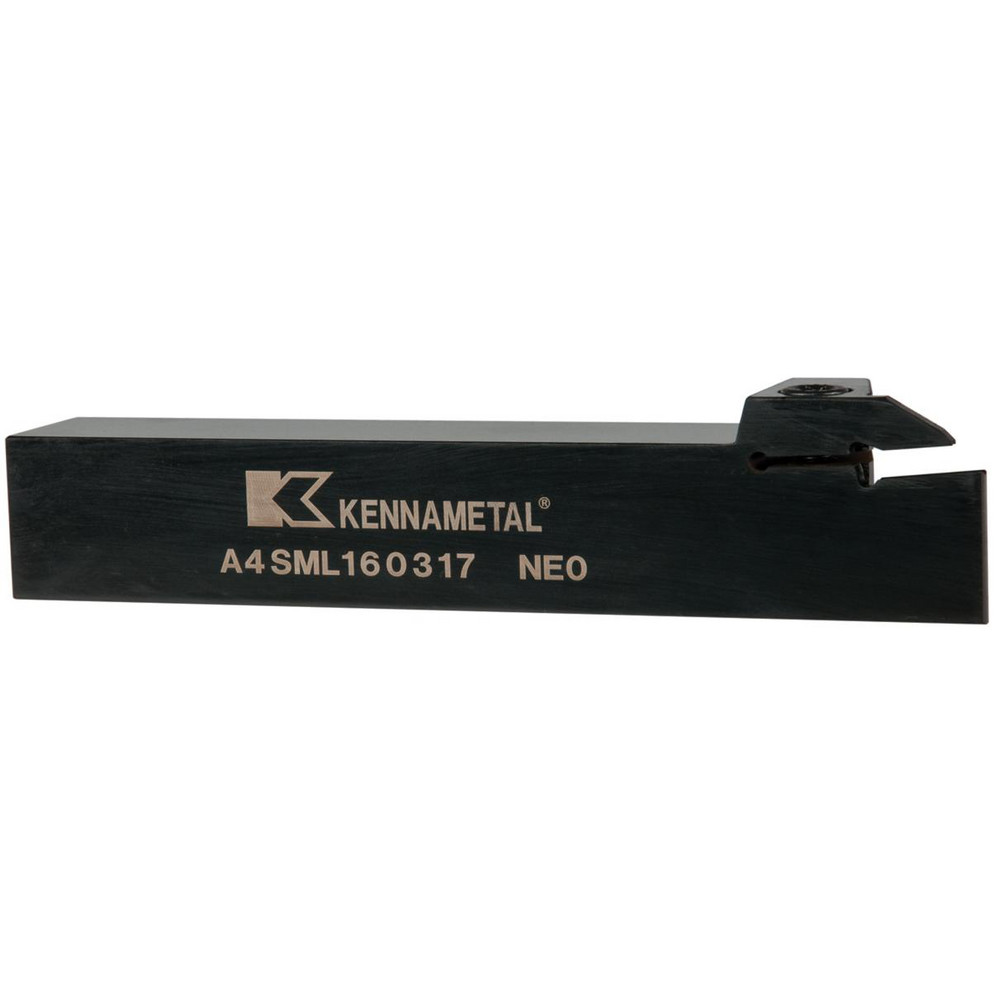

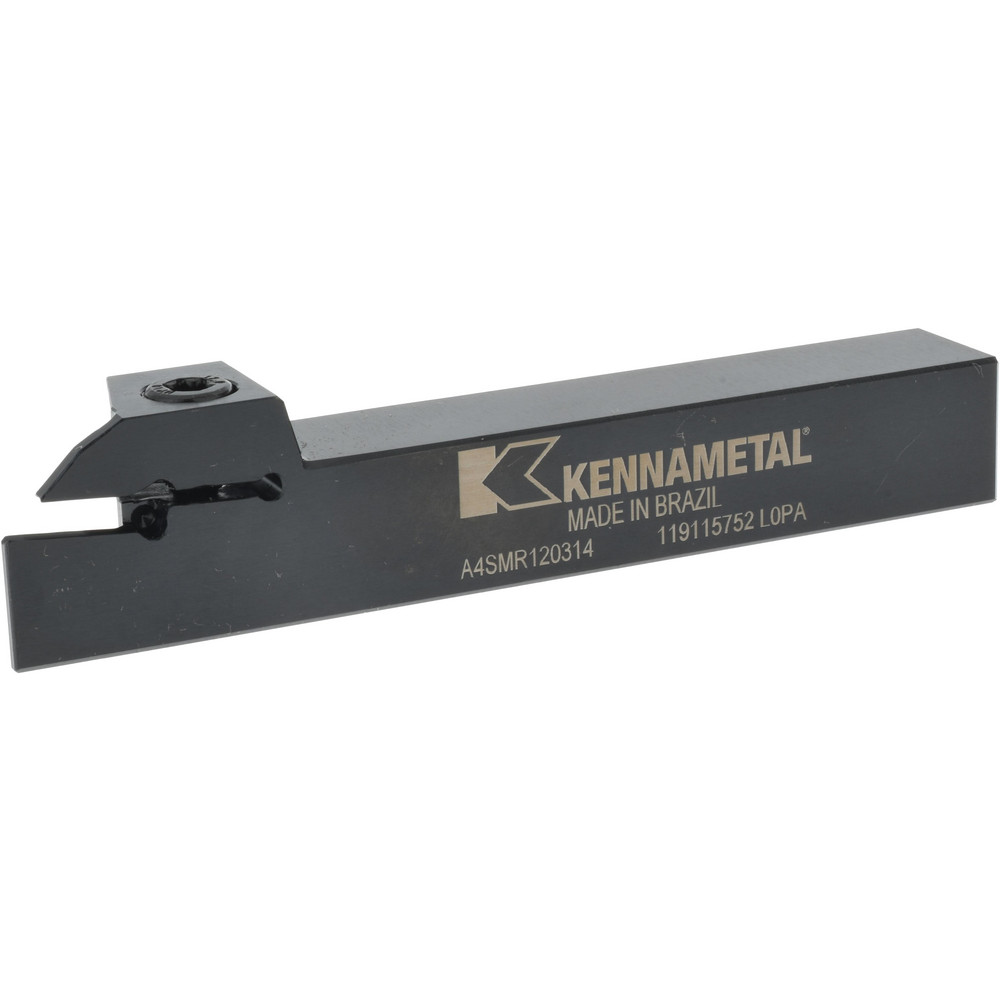

Uses A4..03.. Inserts, 1 x 1" Shank, Series A4
| Hand of Holder | Neutral |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Maximum Depth of Cut (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | A4EN |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..03.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 127.40 |
| Shank Length (Decimal Inch) | 5.0157 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | A4 |
| Overall Length (mm) | 152.40 |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2130 |
| Head Height (Decimal Inch) | 1.2600 |
| Head Height (mm) | 32.00 |
| Head Length (Decimal Inch) | 0.9800 |
| Head Length (mm) | 25.00 |
| Coating Classification | Kennametal |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Germany |
| MSC Number | MSC# 01761758 |
