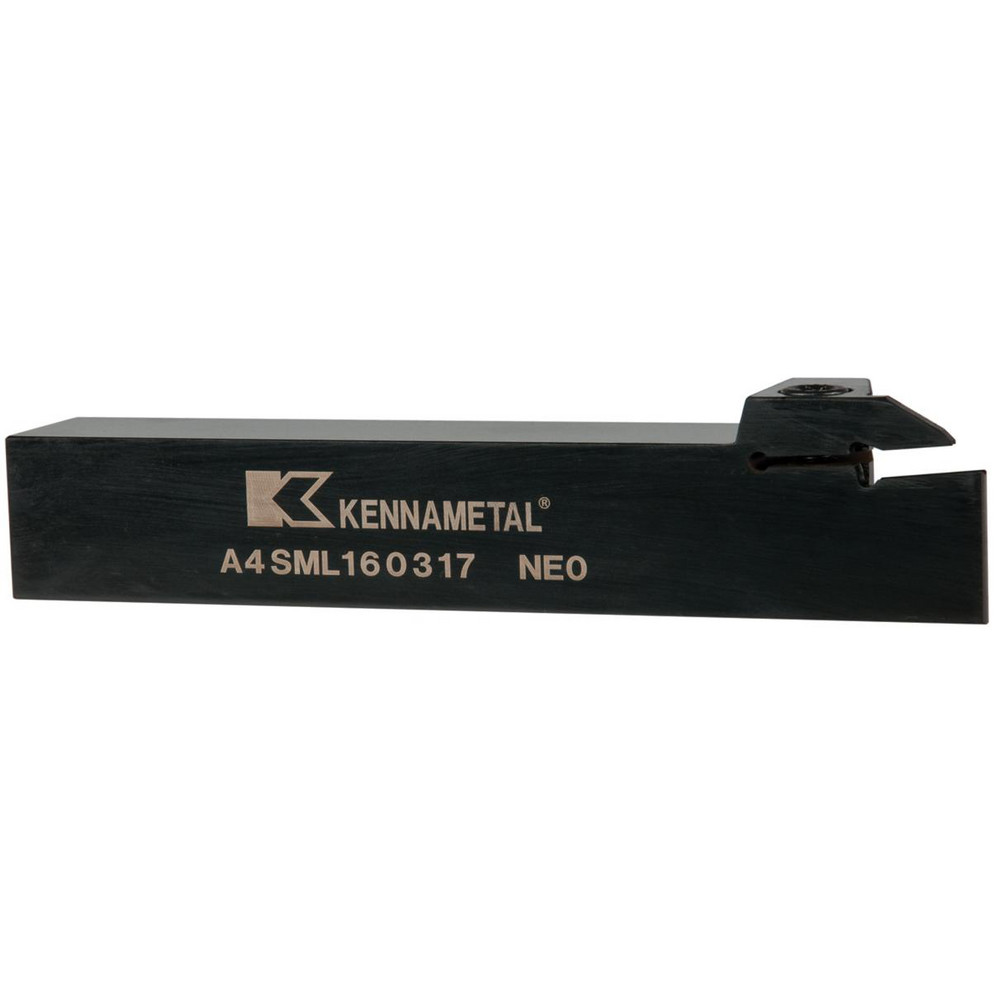

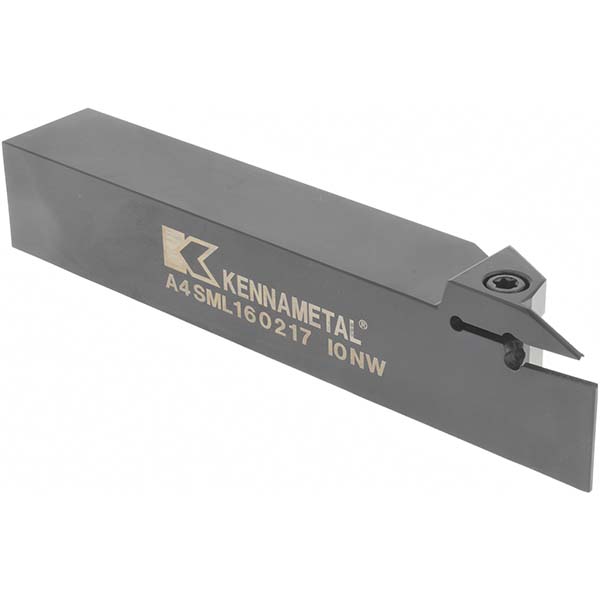

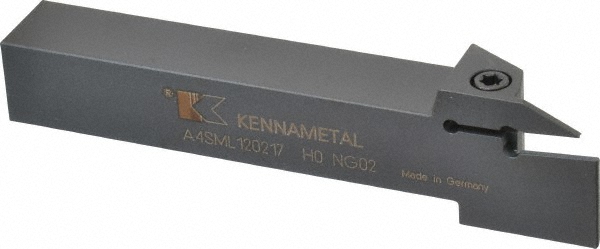

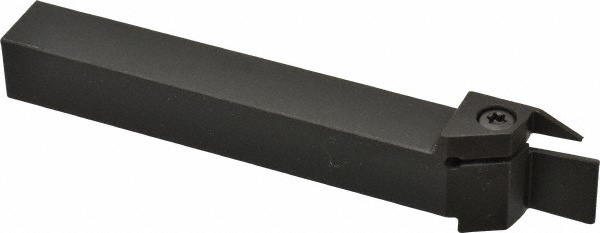

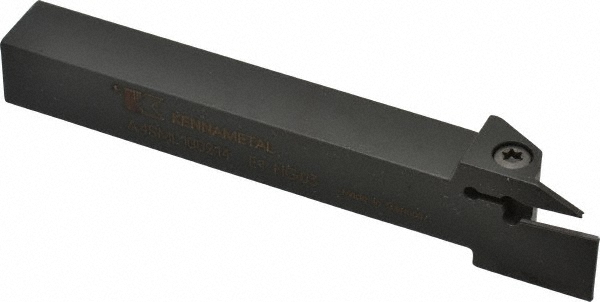

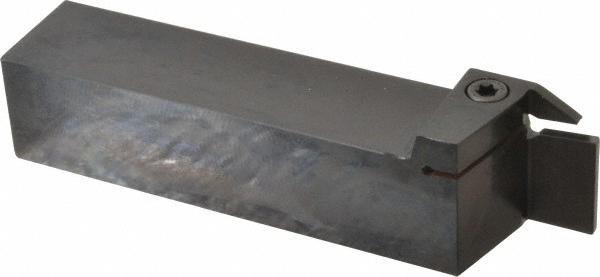

Uses A4..02.. Inserts, 3/4 x 3/4" Shank, Series A4
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Maximum Depth of Cut (mm) | 17.00 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Toolholder Style | A4SM |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..02.. |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Length (mm) | 92.00 |
| Shank Length (Decimal Inch) | 3.6220 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | A4 |
| Overall Length (mm) | 127.00 |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.1800 |
| Head Length (Decimal Inch) | 1.3400 |
| Coating Classification | Kennametal |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 01762020 |
