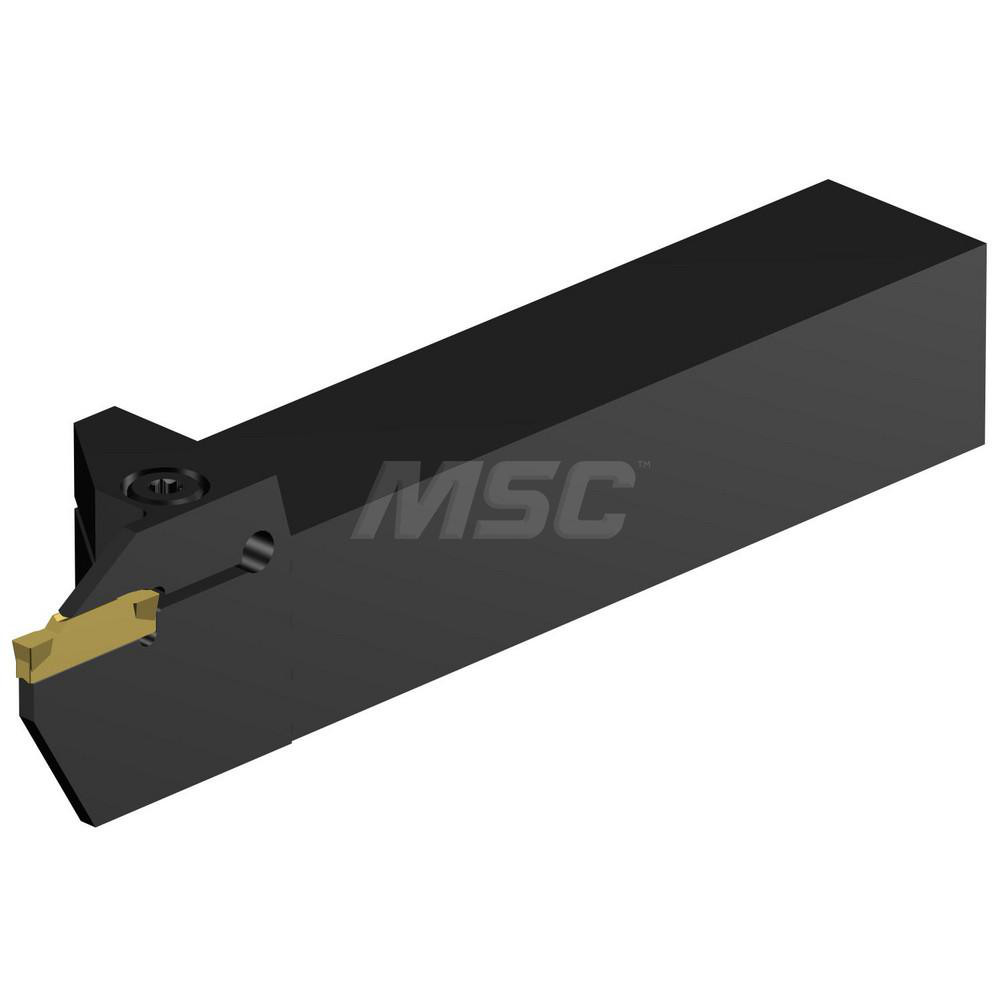

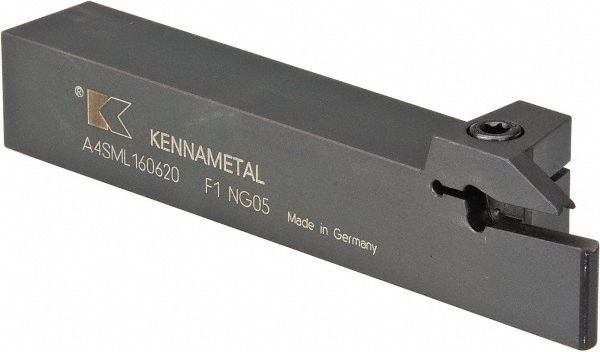

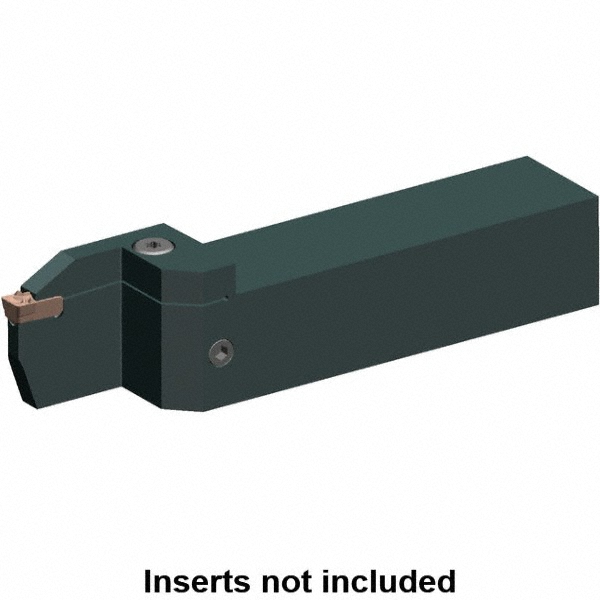

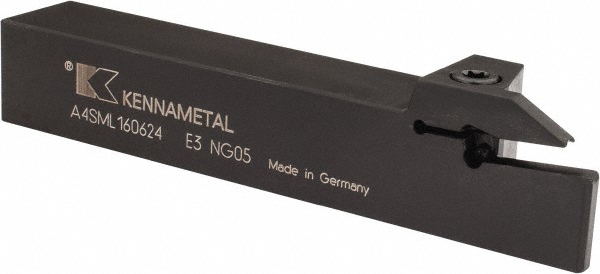

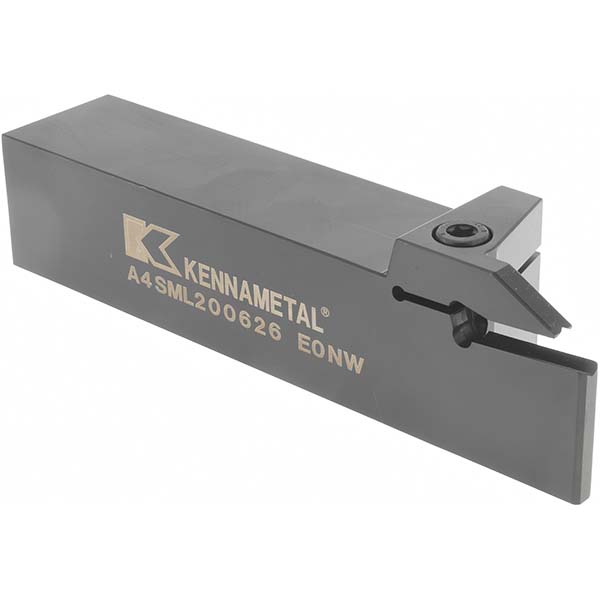

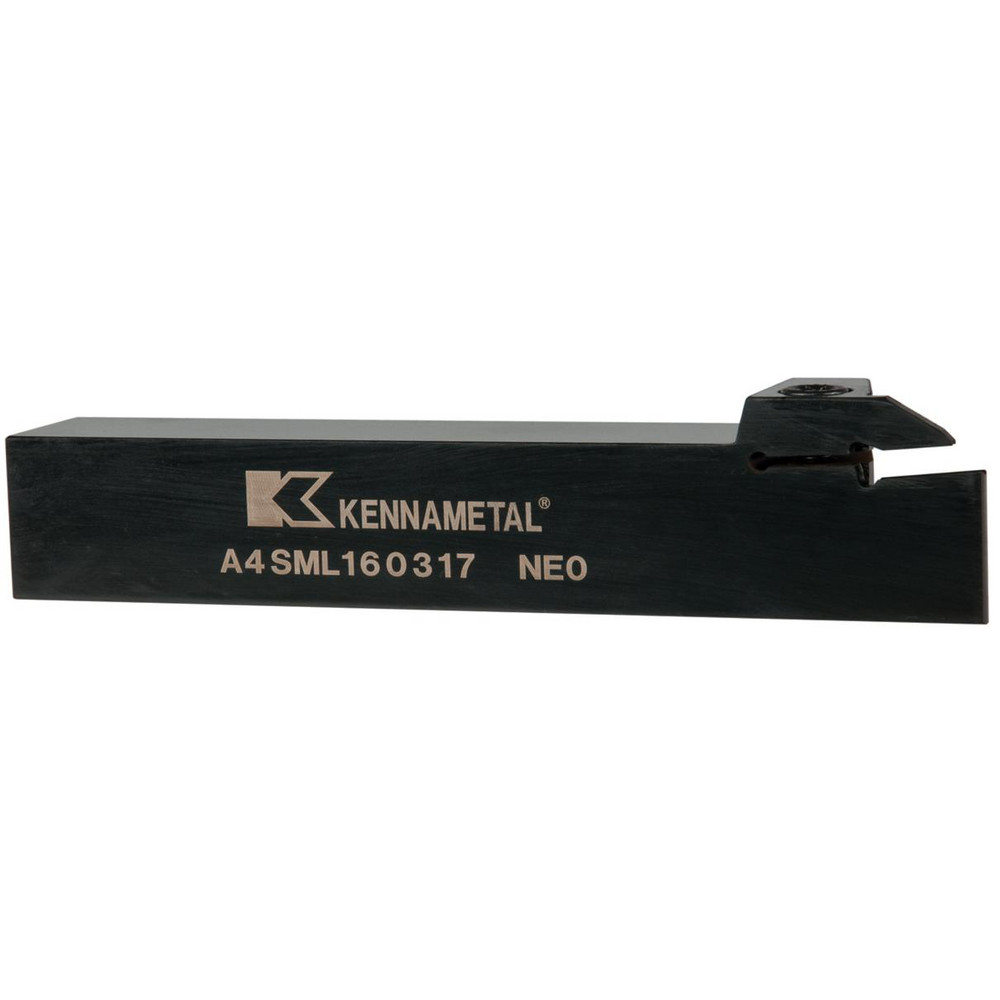

Uses A4..06.. Inserts, 1 x 1" Shank, Series A4
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Minimum Groove Width (mm) | 6.00 |
| Toolholder Style | A4SM |
| Insert Holding Method | Clamp |

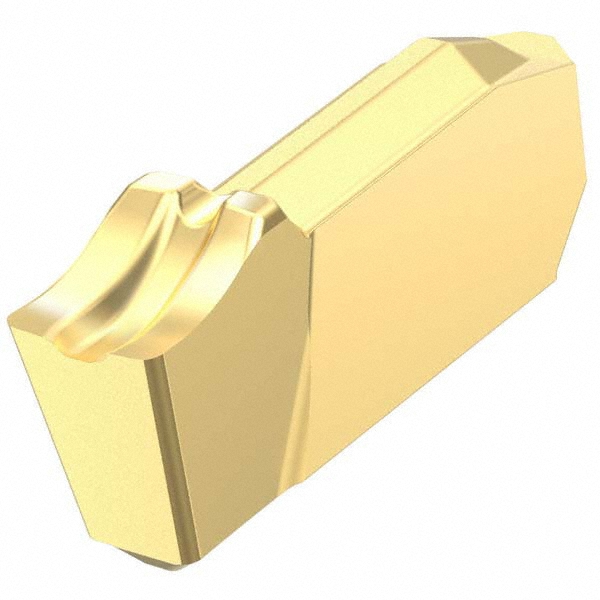

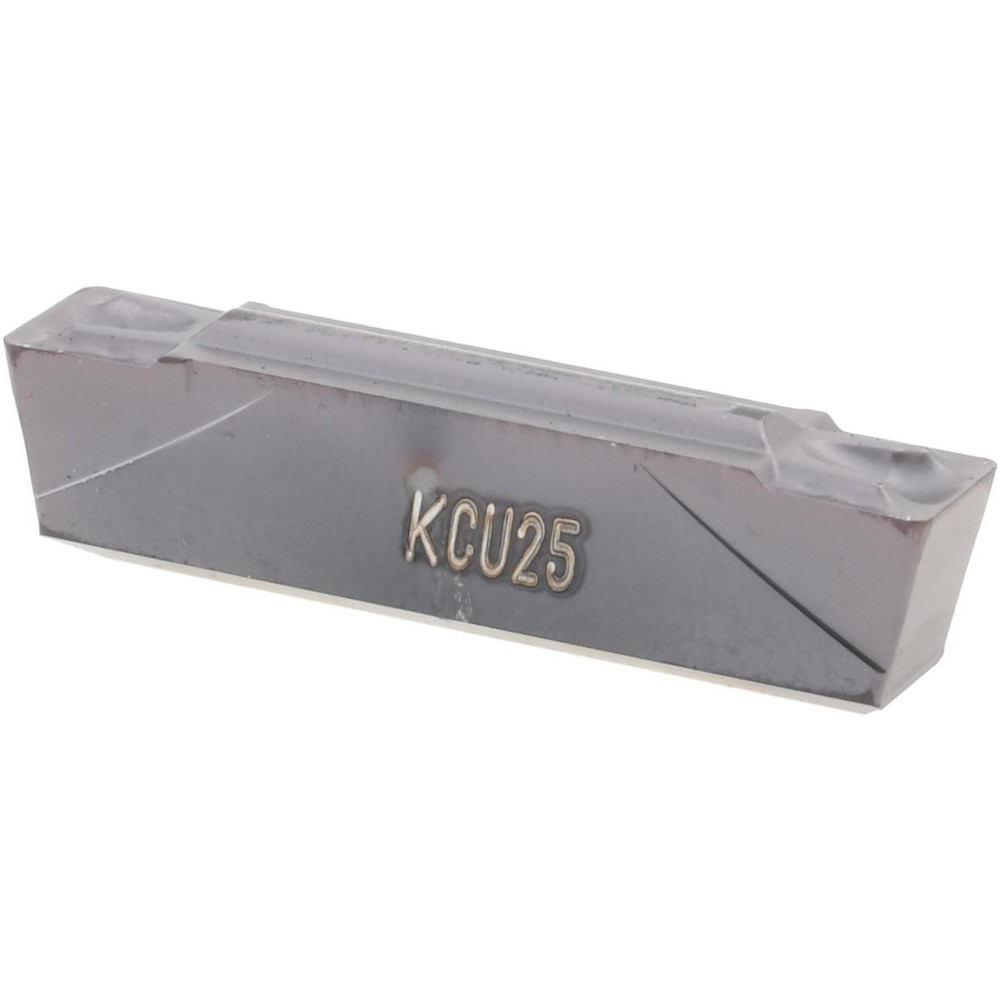

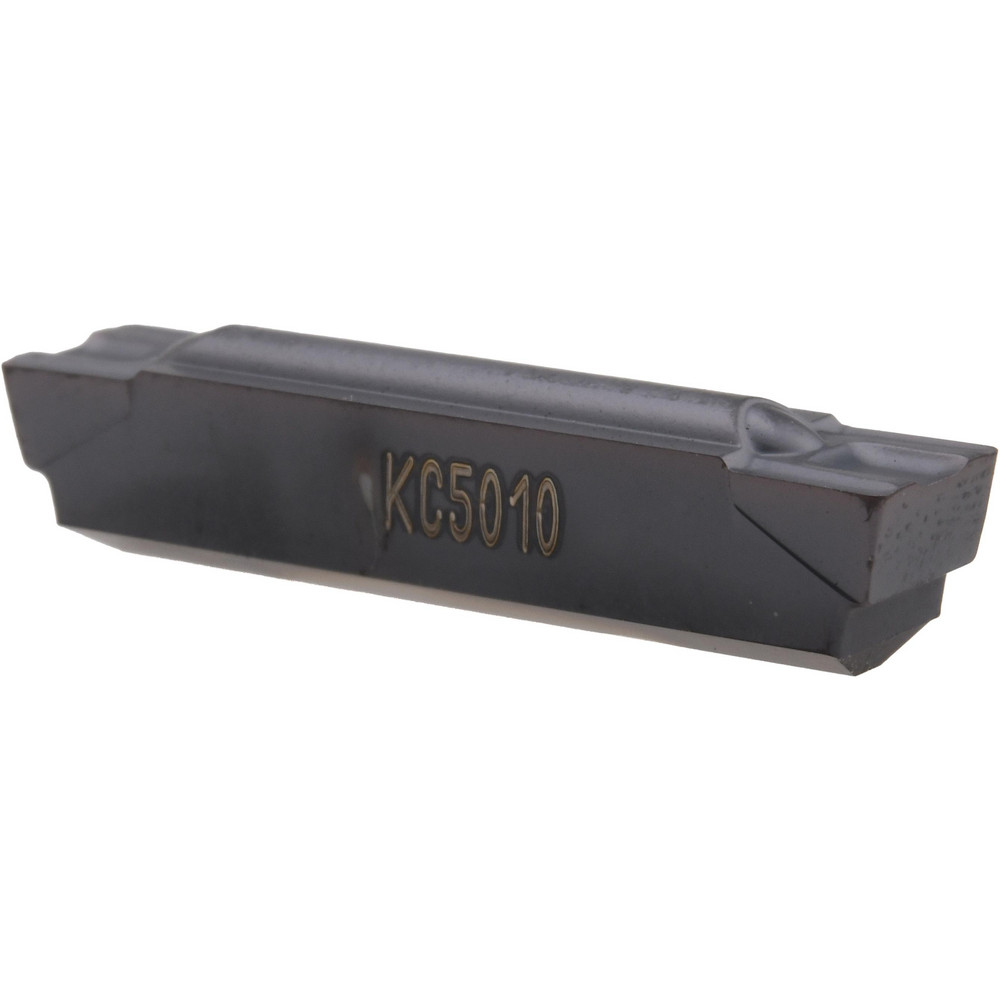

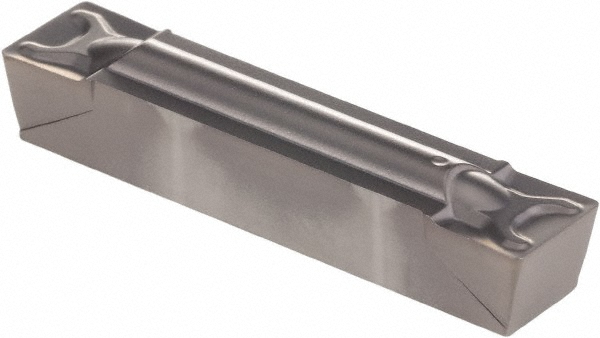

| Insert Compatibility | A4..06.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 112.70 |
| Shank Length (Decimal Inch) | 4.4370 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | A4 |
| Overall Length (mm) | 152.40 |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.3000 |
| Head Height (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.5700 |
| Head Length (mm) | 40.00 |
| Coating Classification | Kennametal |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Germany |
| MSC Number | MSC# 01723998 |
