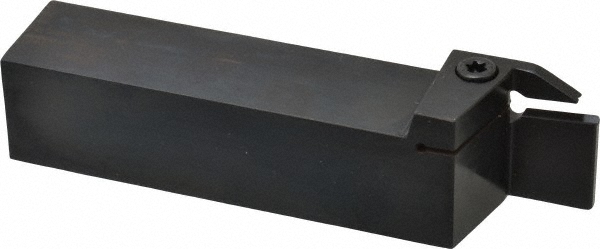

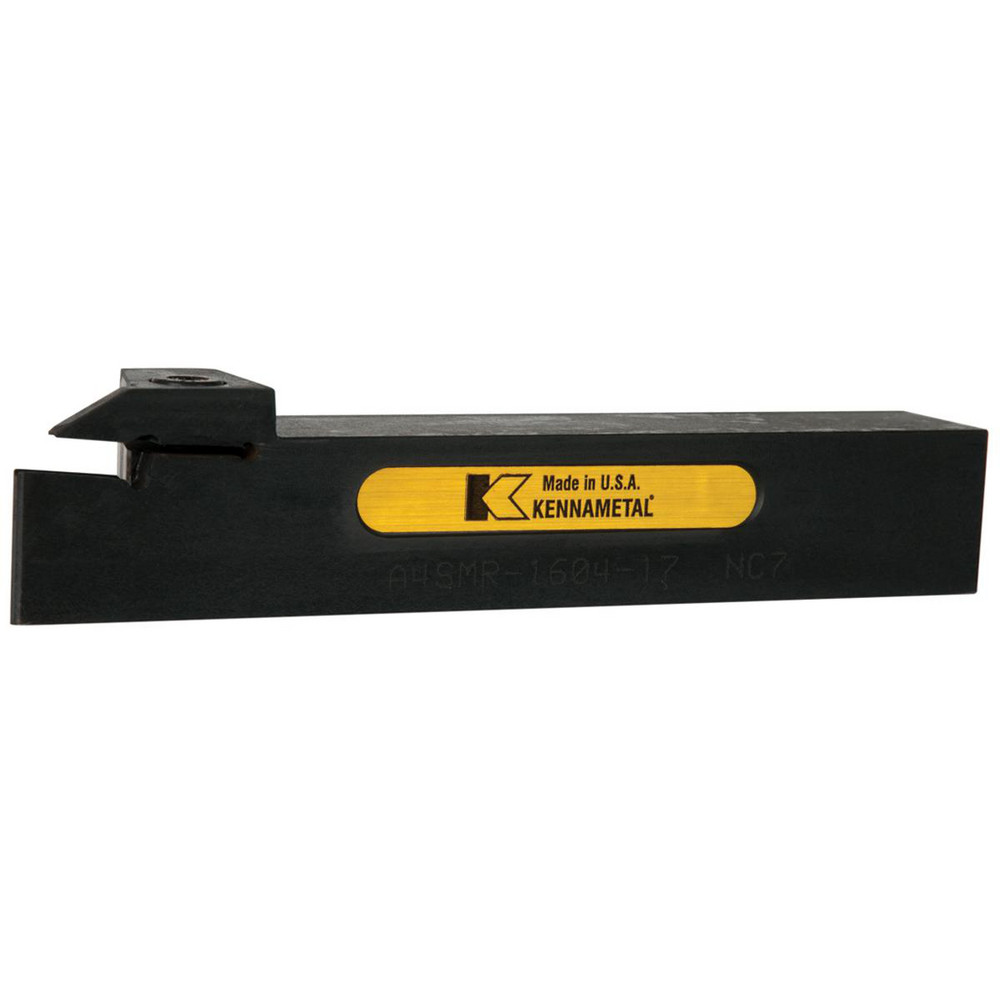

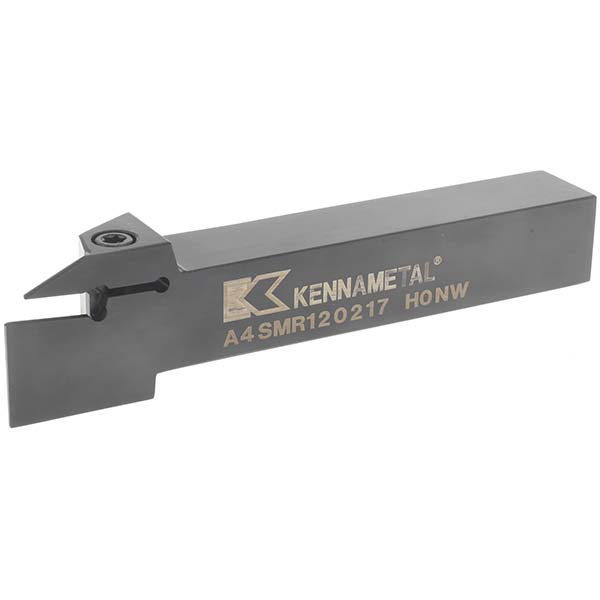

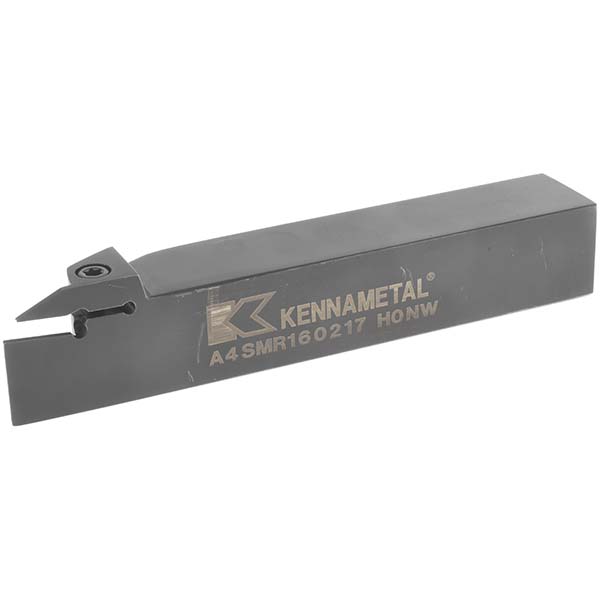

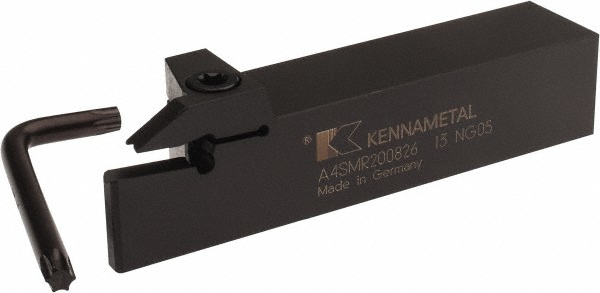

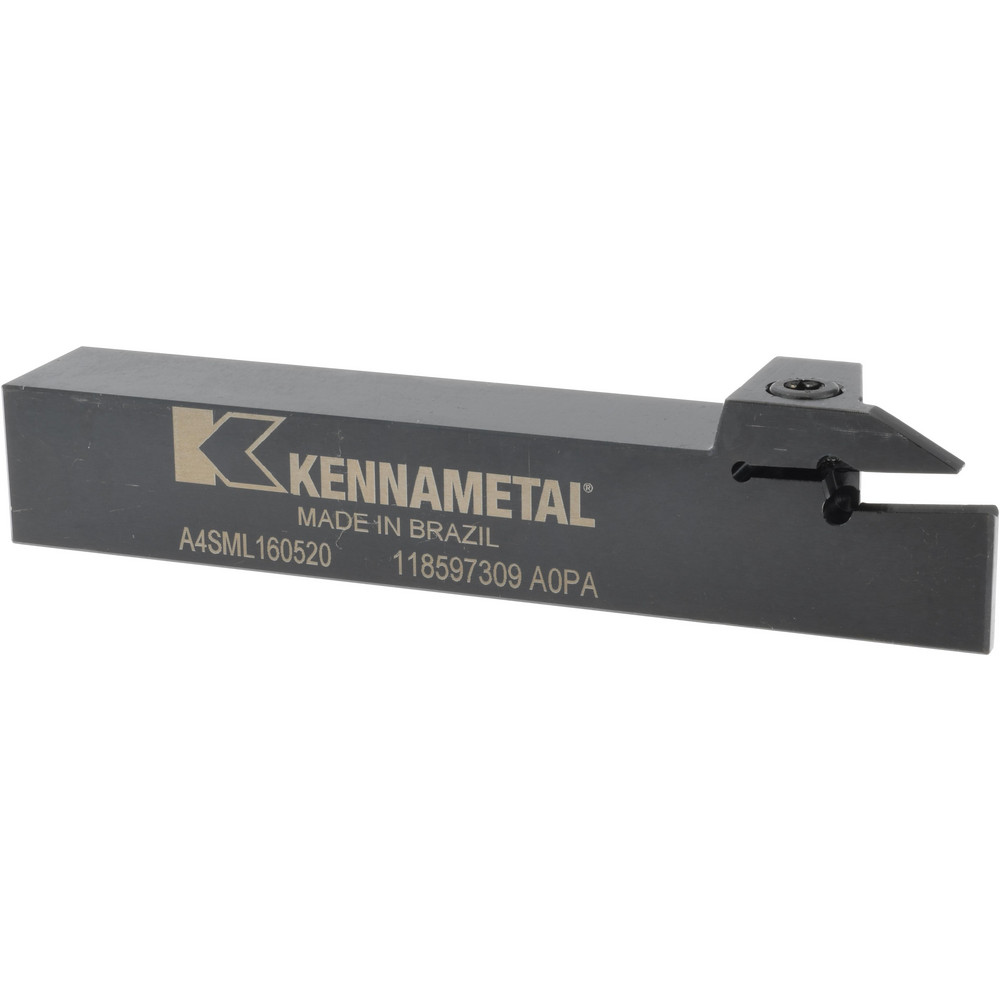

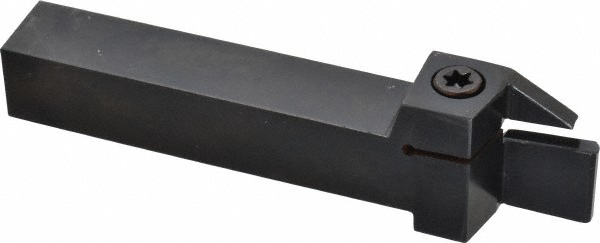

Uses A4..05.. Inserts, 1-1/4 x 1-1/4" Shank, Series A4
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8700 |
| Maximum Depth of Cut (mm) | 22.00 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Minimum Groove Width (mm) | 5.00 |
| Toolholder Style | A4SM |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..05.. |
| Shank Height (mm) | 31.75 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Length (mm) | 110.40 |
| Shank Length (Decimal Inch) | 4.3465 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Series | A4 |
| Overall Length (mm) | 152.40 |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.5400 |
| Head Height (mm) | 39.00 |
| Head Length (Decimal Inch) | 1.6500 |
| Head Length (mm) | 42.00 |
| Insert Seat Size | 5.0 |
| Coating Classification | Kennametal |
| MSC/Manufacturer Number | A4SMR/L200522 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 01723816 |
