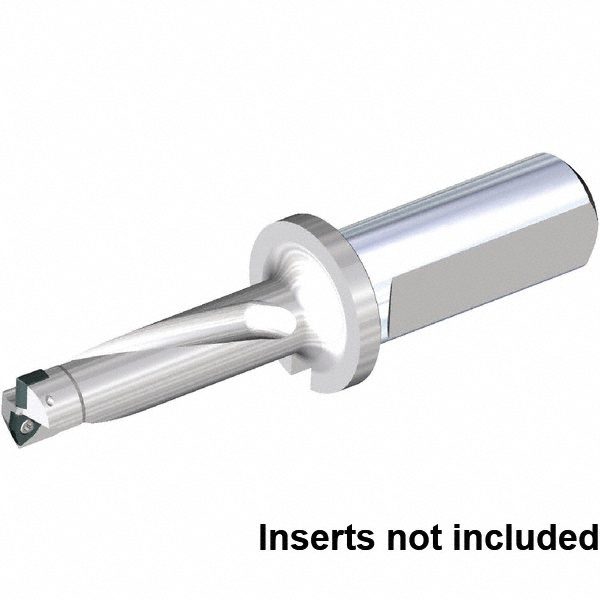

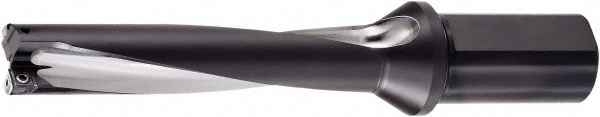

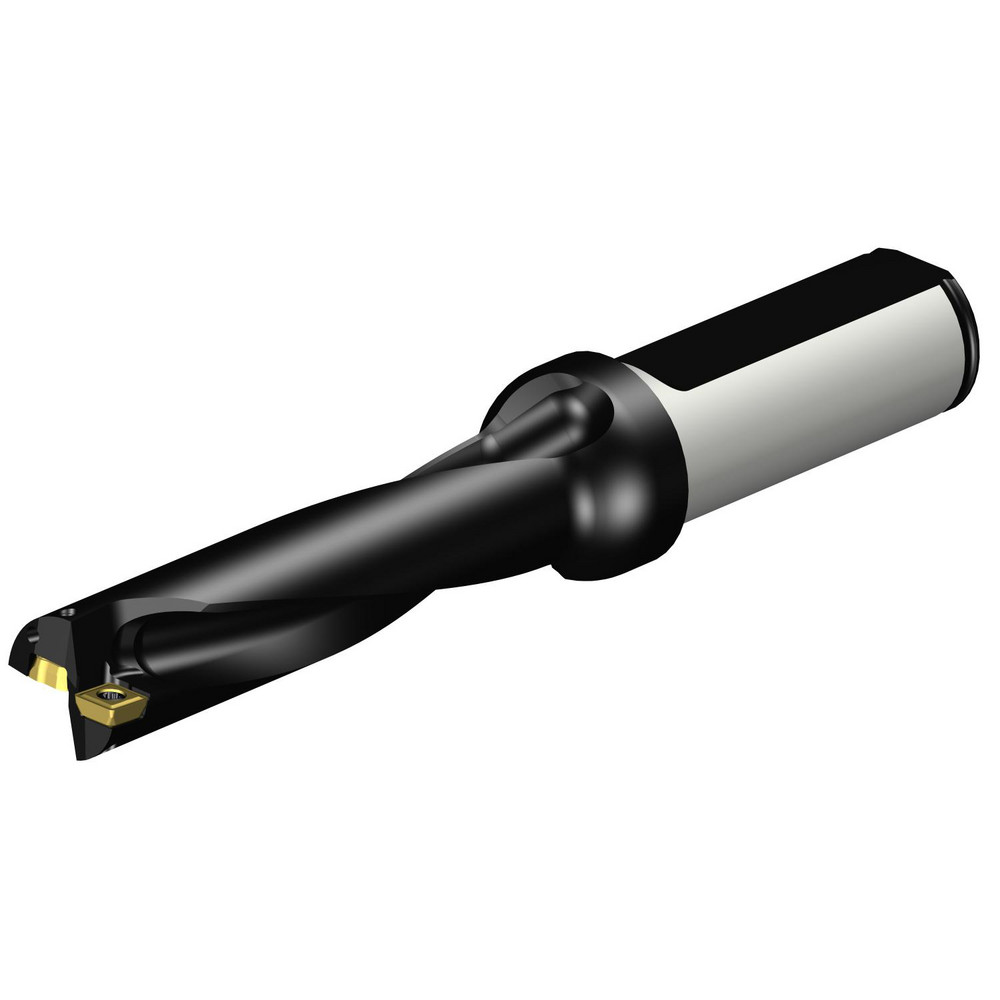

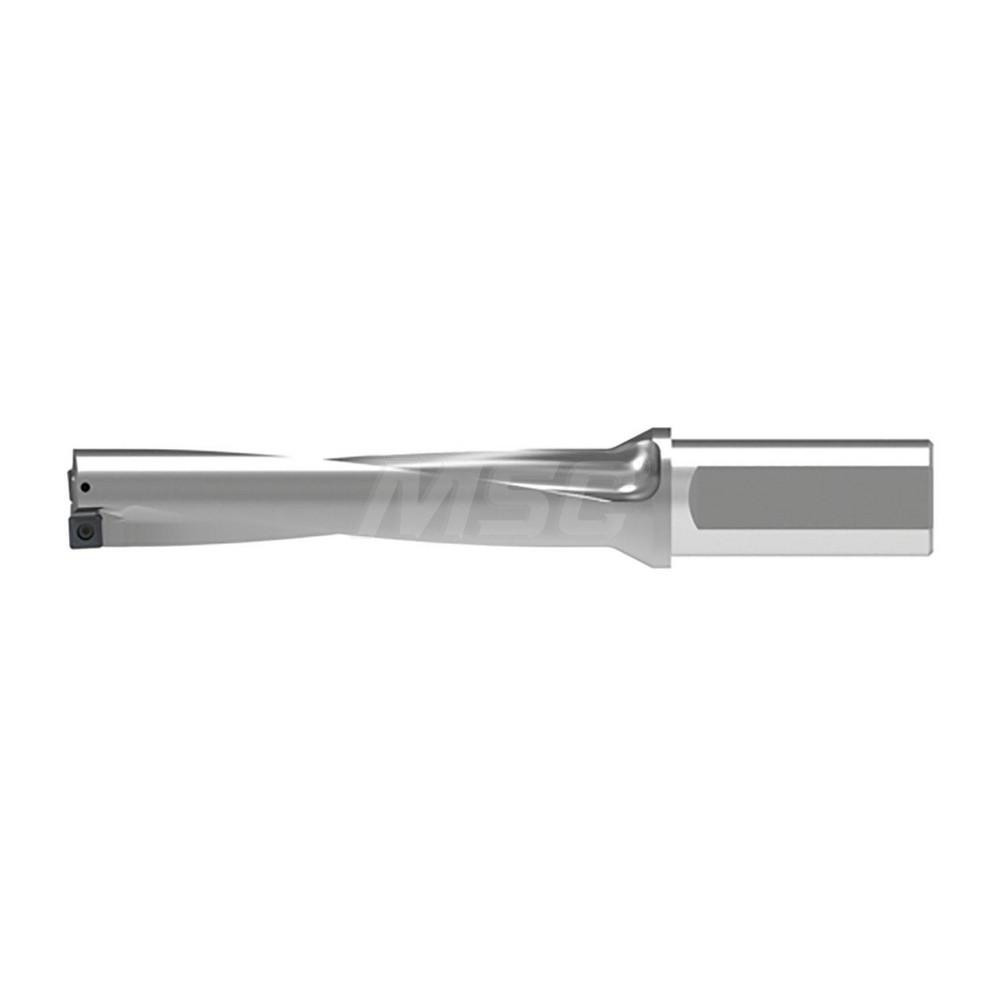

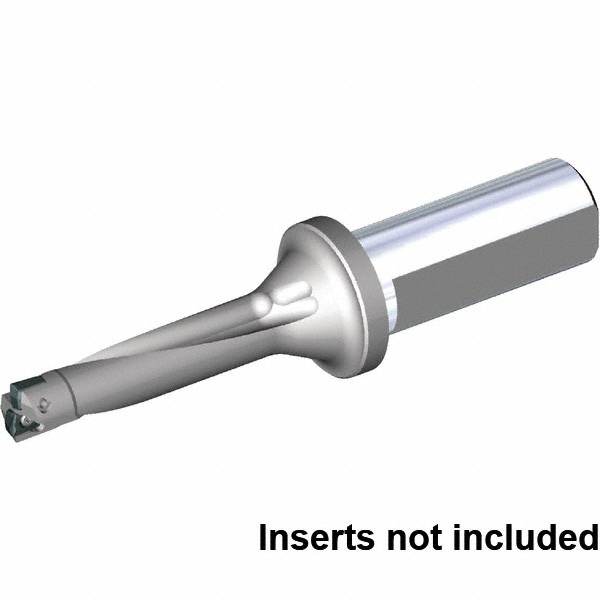

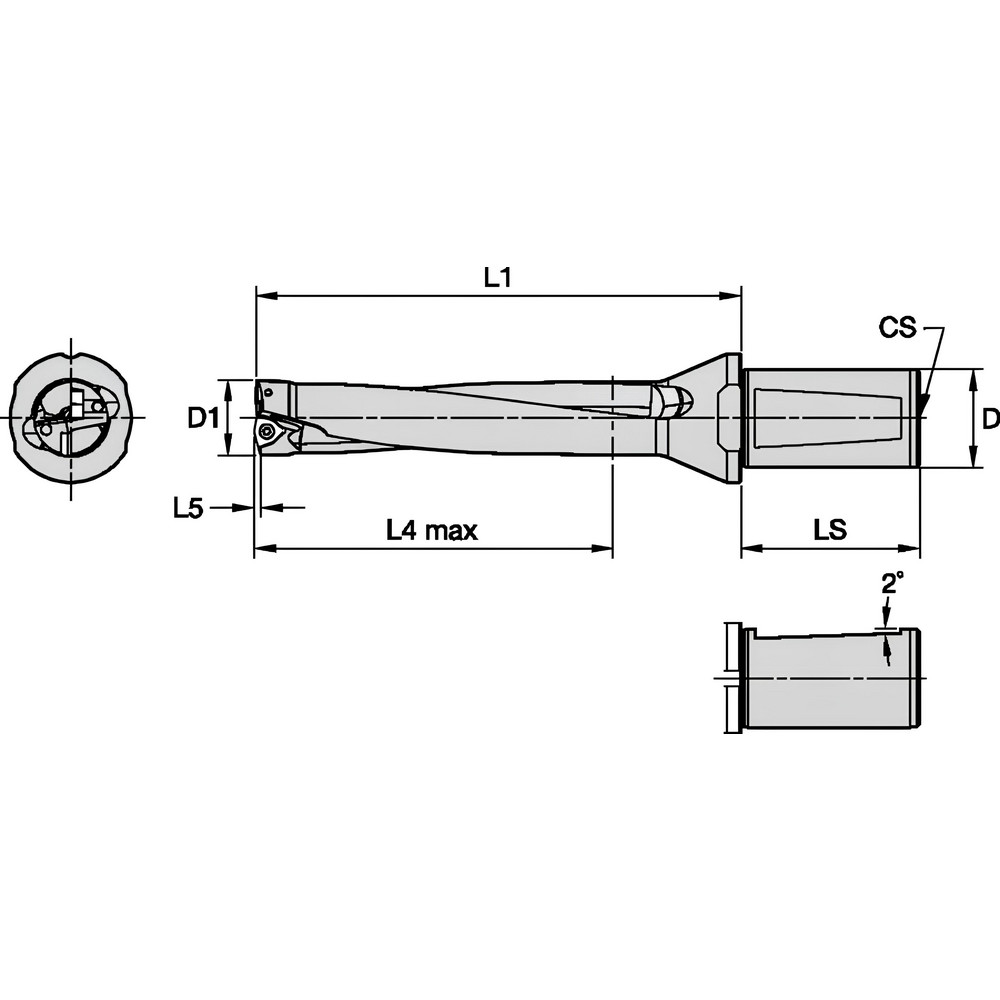

Weldon Flat & Flange Shank, Uses SPGX & DFT 0502.. & x202 Inserts, Series Drill-Fix
| Compatible Drill Style | DFSP |
|---|---|
| Maximum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.6690 |
| Maximum Drill Depth (Decimal Inch) | 3.3460 |
| Maximum Drill Depth (mm) | 85.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFT; SPGX |
| Compatible Insert Size Code | x202; 0502.. |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | Drill-Fix |
| Flute Length (Decimal Inch) | 3.7800 |
| Flute Length (mm) | 96.00 |
| Body Length (mm) | 114.00 |
| Body Length (Decimal Inch) | 4.4880 |
| Shank Length (Decimal Inch) | 4.4880 |
| Shank Length (mm) | 45.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SPGX0502..; DFTX202.. |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 13200738 |
