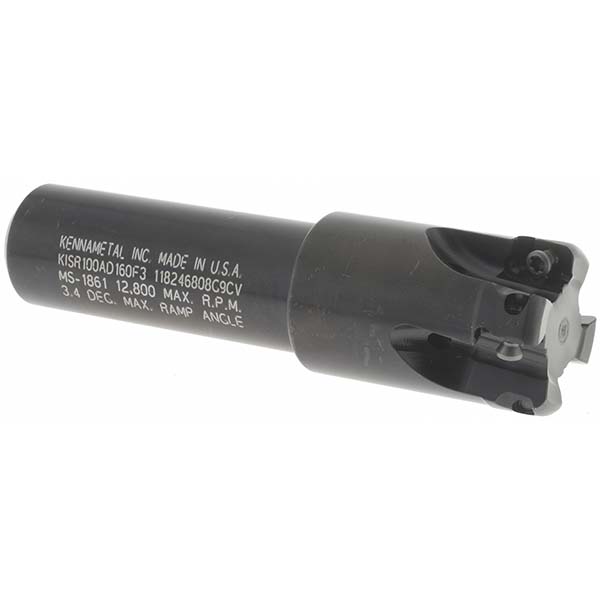

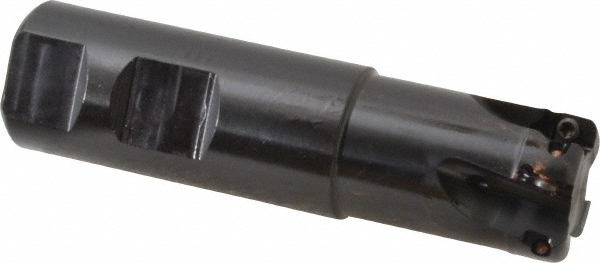

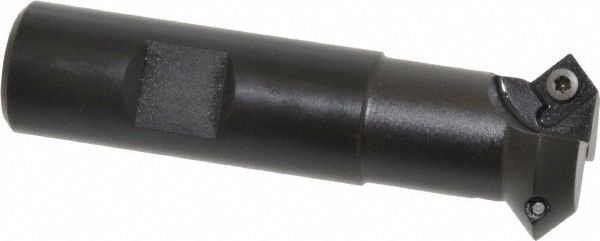

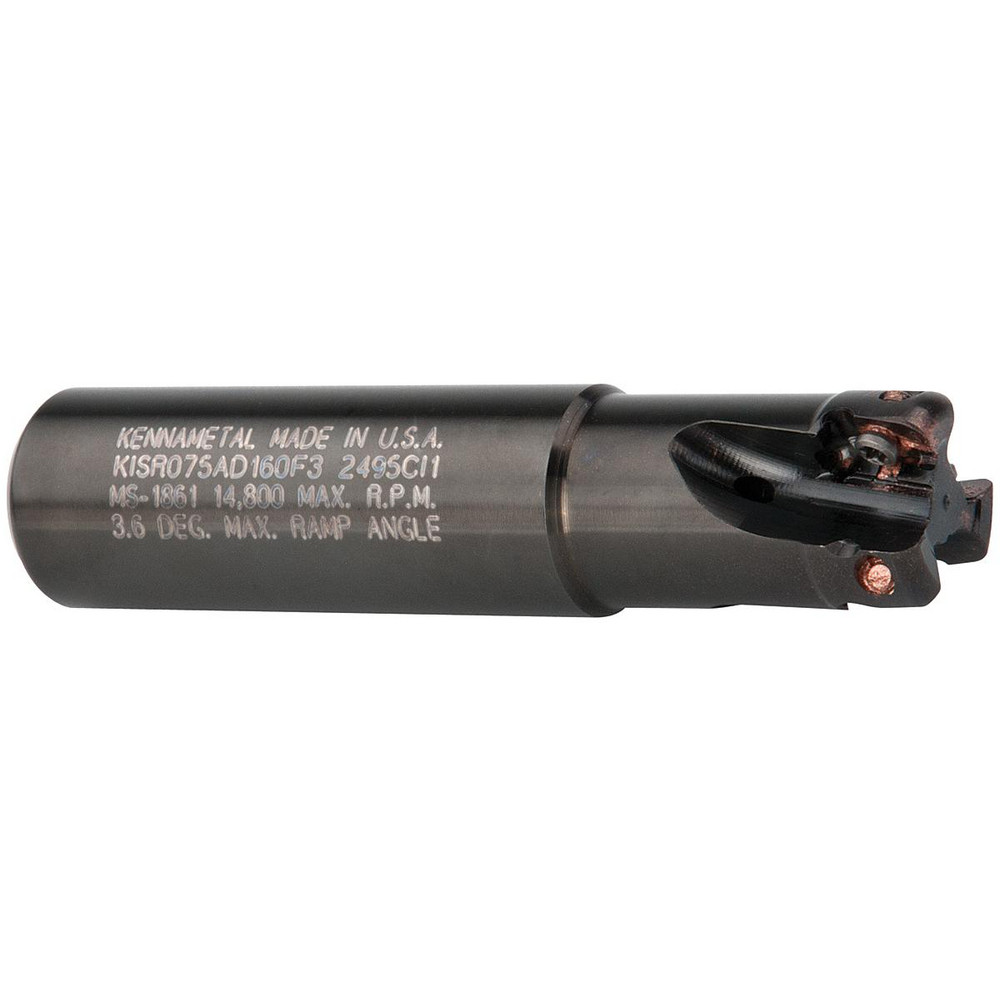

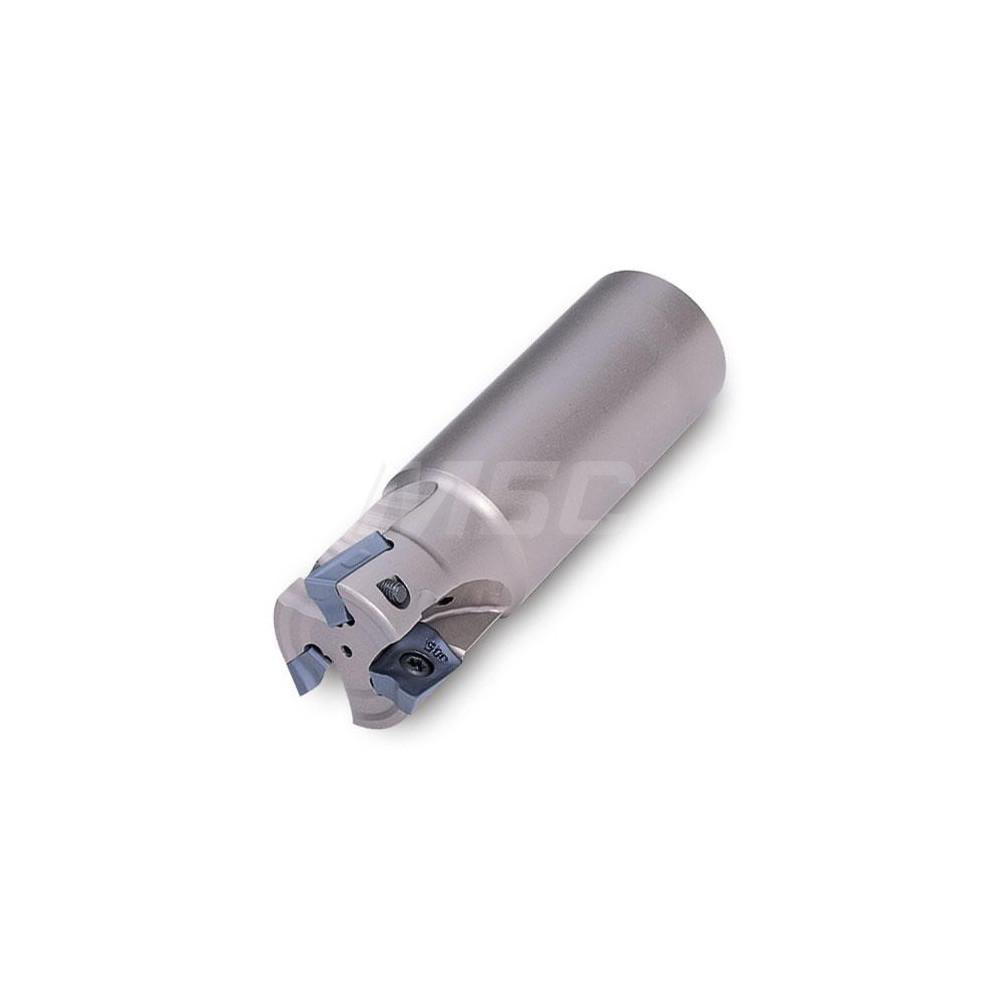

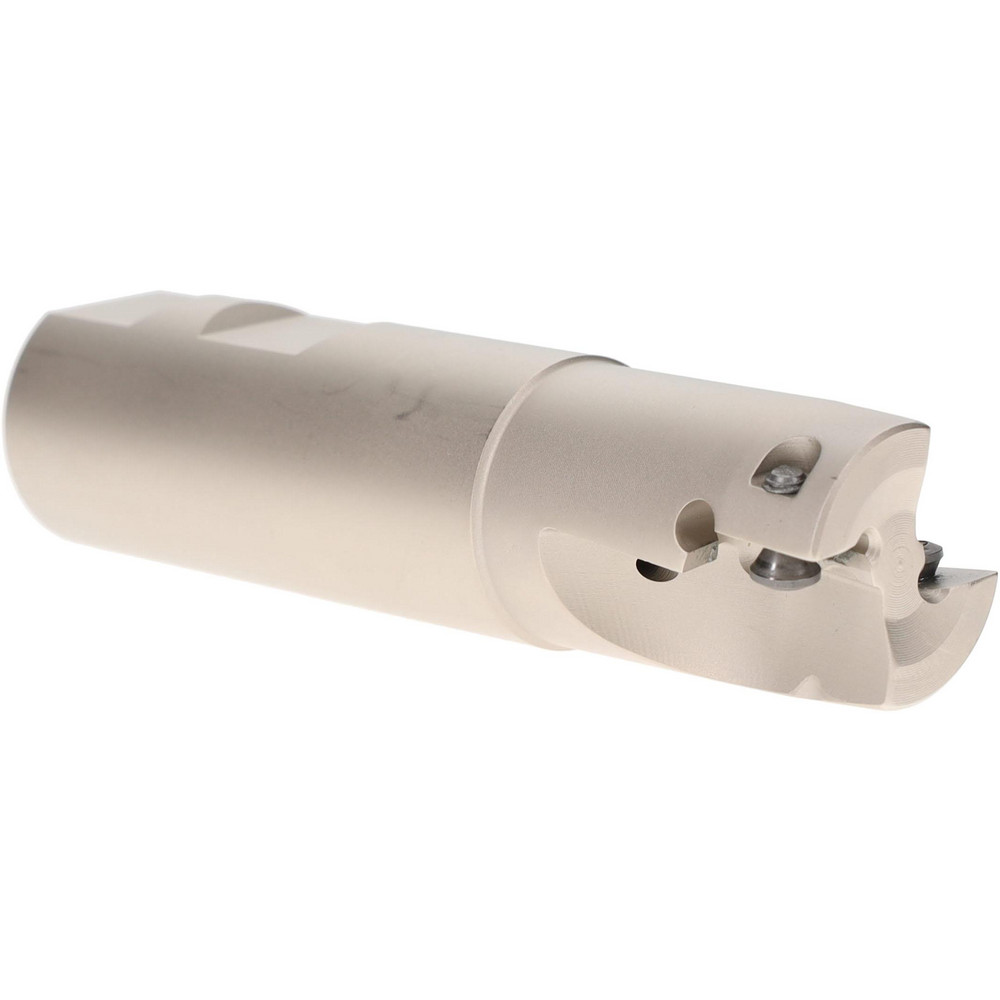

Uses (4) AD.T 1035 Inserts, Through Coolant, 4" OAL
| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3570 |
| Cutter Style | KISR |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.5000 |
| Shank Length (mm) | 63.50 |
| Head Length (Decimal Inch) | 1.5 |
| Head Length (mm) | 38.10 |
| Maximum RPM | 12800 |
| Complete Insert Compatibility | ADPT 1035..; ADKT 1035.. |
| Insert Compatibility | AD.T 1035 |
| UNSPSC Code | 27112803 |
| ISO Number | KISR100AD160F4 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 00692236 |
