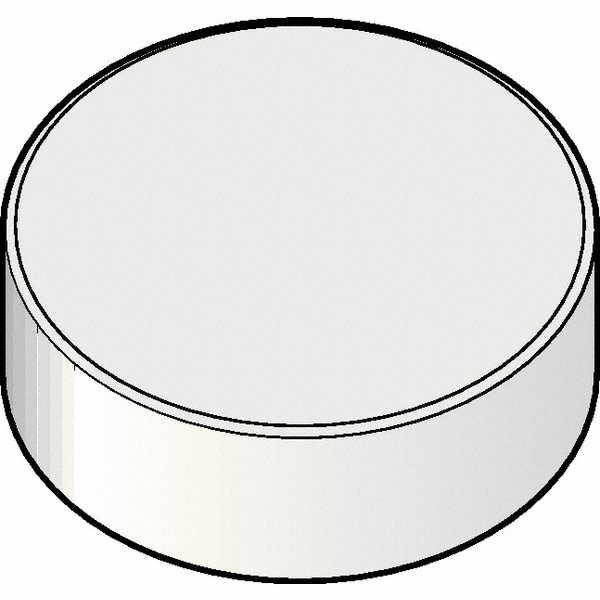

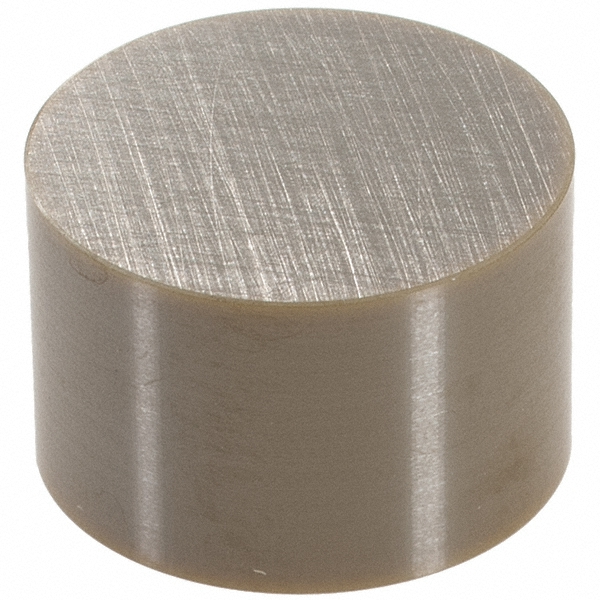

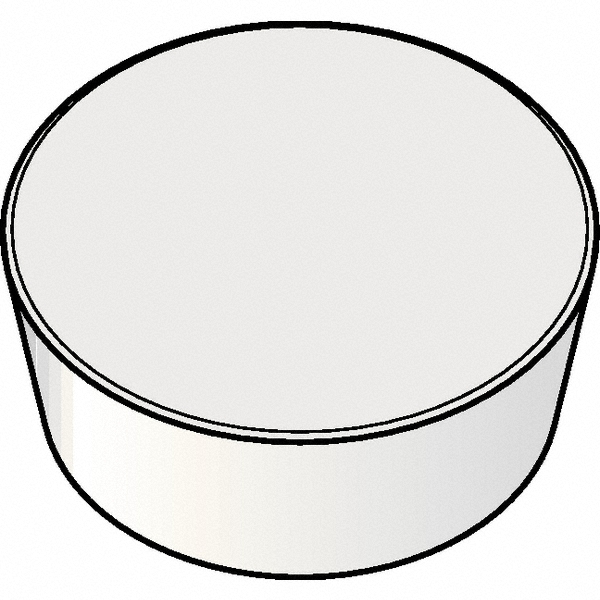

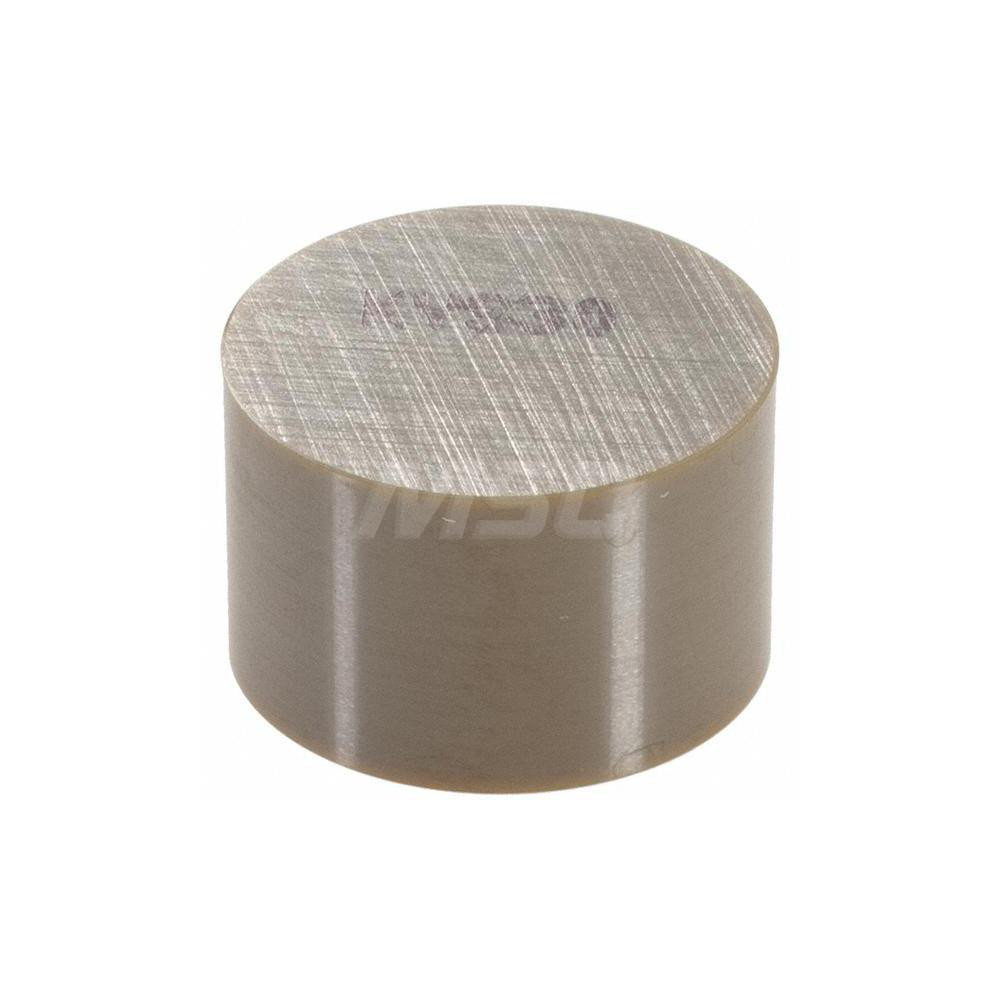

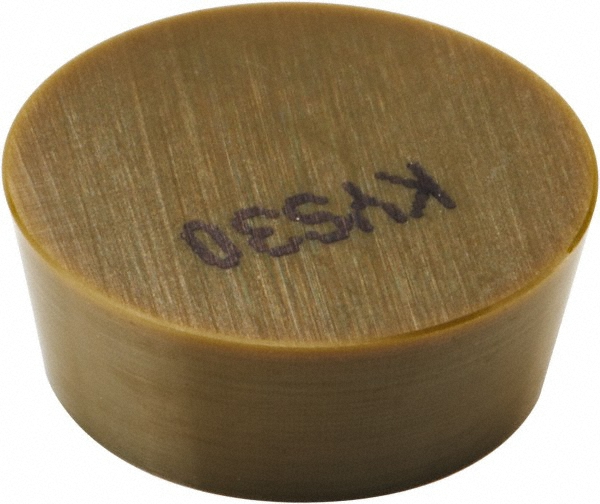

Bright/Uncoated Finish, 0.3125" Thick, 0.5000" Wide
| Insert Style | RNGN |
|---|---|
| Insert Size | 4 |
| Insert Material | Ceramic |
| Insert Shape | Round |
| Manufacturer Grade | KYS30 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3125 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 0.00 |
| Insert Size Code | 45 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |

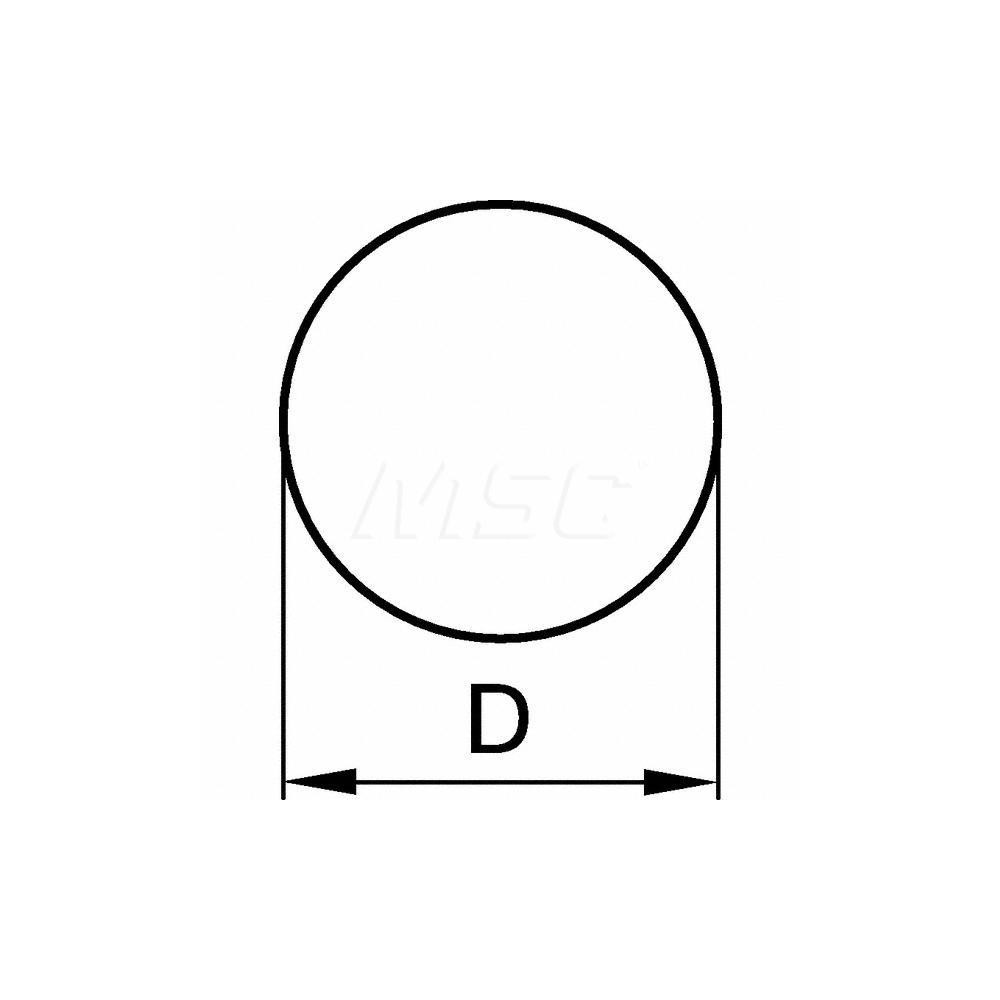

| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Series | RNGN |
| Coating Process | Uncoated |
| Rake | Negative |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | RNG45T0420 |
| Iso Code | RNGN120700T01020 |
| Standards | ISO; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | RNGN120700T01020 |
| Cutter Series Compatibility | CRSN |
| Chip Breaker | Flat Top |
| UNSPSC Code | 23291601 |
| Material Application | Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 72603665 |
