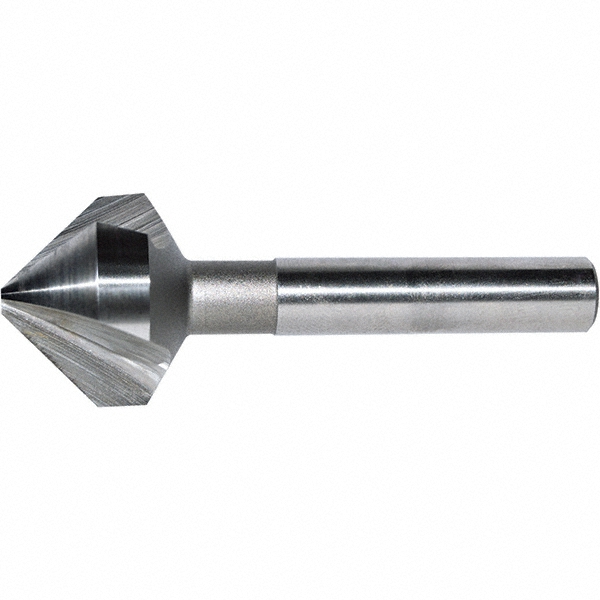

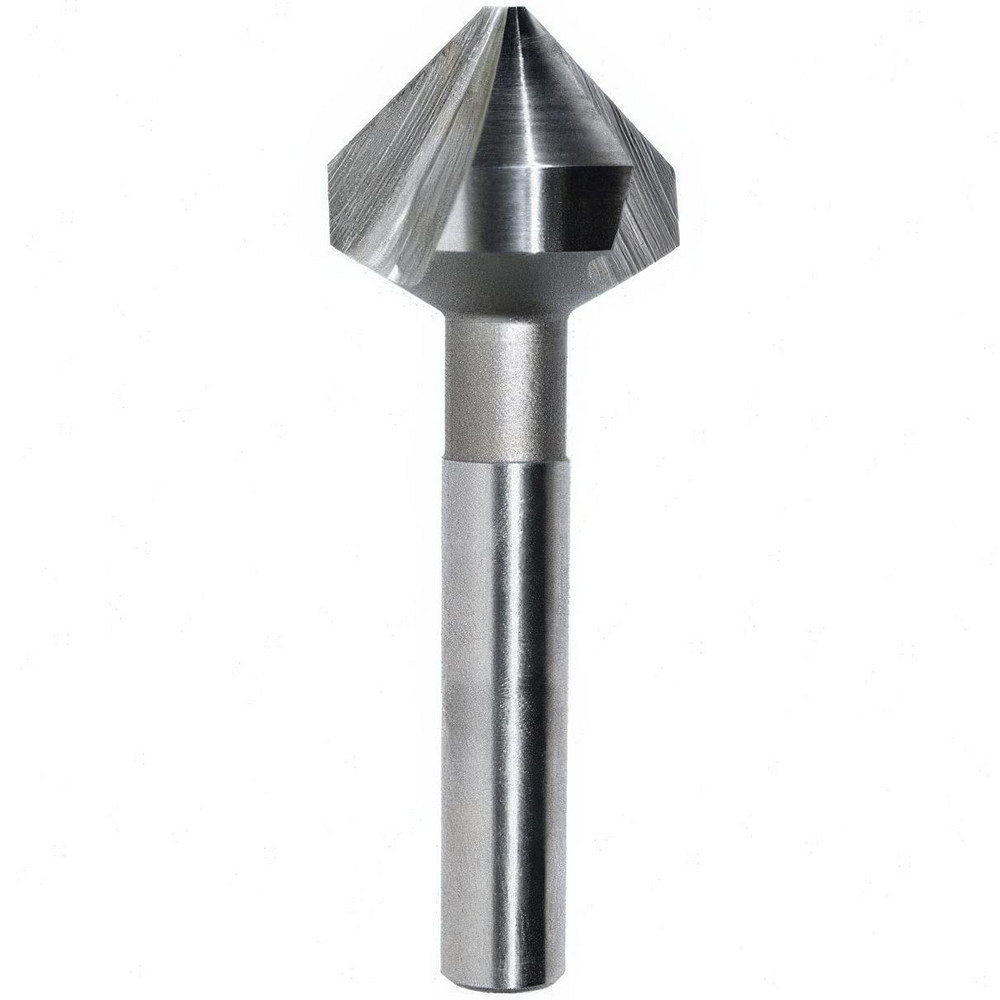

1/4" Min, 13/64" Shank Dia, 1-1/4" OAL, Bright/Uncoated Finish
| Head Diameter (mm) | 6.3500 |
|---|---|
| Head Diameter (Inch) | 1/4 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 3 |
| Included Angle | 90.00 |
| Countersink Material | Cobalt Steel |
| Countersink Finish/Coating | Bright/Uncoated |
| Minimum Cutting Diameter (Inch) | 1/4 |
| Shank Diameter (Inch) | 13/64 |
| Shank Diameter (mm) | 5.1600 |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (mm) | 44.0000 |
| Shank Type | Straight-Cylindrical |
| End Type | Single |
| Attachment Method | Shank |
| Shank Length (Decimal Inch) | 1.2500 |
| Shank Length (Inch) | 1-1/4 |
| Shank Material | Cobalt |
| Centerline Angle | 45 |
| Cutting Direction | Right Hand |
| Minimum Cutting Diameter (mm) | 6.35 |
| Overall Length (Decimal Inch) | 1.2500 |
| Countersink Head Only | No |
| UNSPSC Code | 27112812 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 31484702 |
