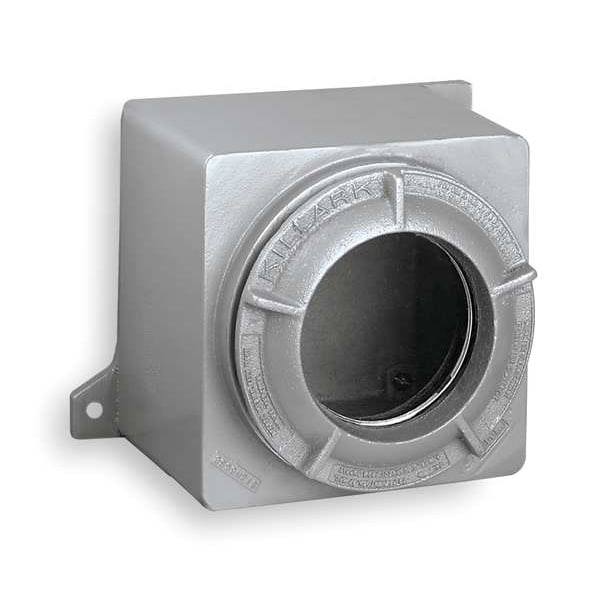

Aluminum Electrical Enclosures, 3-3/4 in H, 2.68 in D, 3-3/4 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 3-3/4 in |
| Nominal Height | 3-3/4 in |
| Nominal Depth | 2.68 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Solid / Clear Cover | Clear |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Mounting Type | Wall Mount |
| Safety Rating | Class 1, Division 1 |
| Material | Aluminum |
| Interior Panel | 2NWC8 |
| Gasket Replacement | GRB-RG |
| Standards | CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696 |
| Lid Hinge | No |
| Max. Conduit Size | 1-1/2 in |
| Series | GR |
| Enclosure Material | Copper-Free Aluminum |
| Usable Opening Depth | 2.68 in |
| IP Rating | IP66 |
| Gasket | 70 Durometer NITRILE |
| CSA File Number | LR11716 |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| Cover Closure Type | Screw On |
| Gasket Material | Nitrile |
| Cover Style | Solid with Window |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| NEMA Enclosure Rating | 4, 4X, 3 |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
