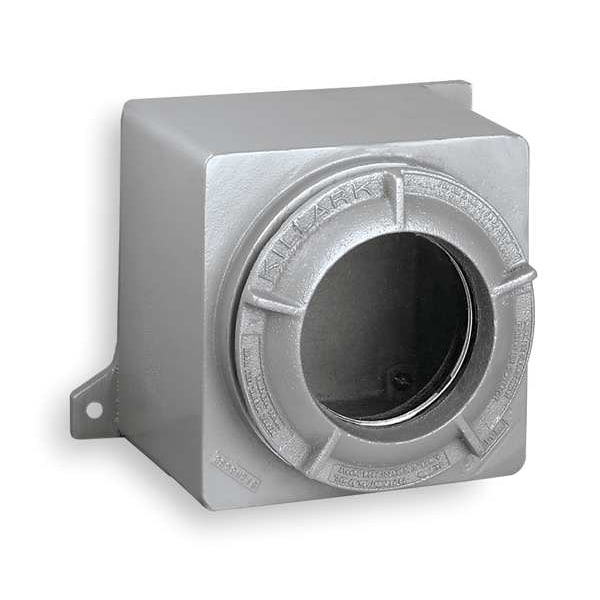

Aluminum Electrical Enclosures, 7.63 in H, 4.93 in D, 9.13 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 9.13 in |
| Nominal Height | 7.63 in |
| Nominal Depth | 4.93 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Solid / Clear Cover | Clear |
| Safety Rating | Class 1, Division 1 |
| Max. Conduit Size | 2 in |
| Mounting Type | Wall Mount |
| Lid Hinge | No |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Standards | CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696 |
| Material | Aluminum |
| Series | GR |
| Interior Panel | 2NWD3 |
| Gasket Replacement | GRL-RG |
| Gasket | 70 Durometer NITRILE |
| IP Rating | IP66 |
| Enclosure Material | Copper-Free Aluminum |
| Usable Opening Depth | 4.93 in |
| CSA File Number | LR11716 |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| Gasket Material | Nitrile |
| Environment - MERCH | Washdown |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Cover Style | Solid with Window |
| NEMA Enclosure Rating | 4 |
| Cover Closure Type | Screw On |
| Package Quantity | 1 |
