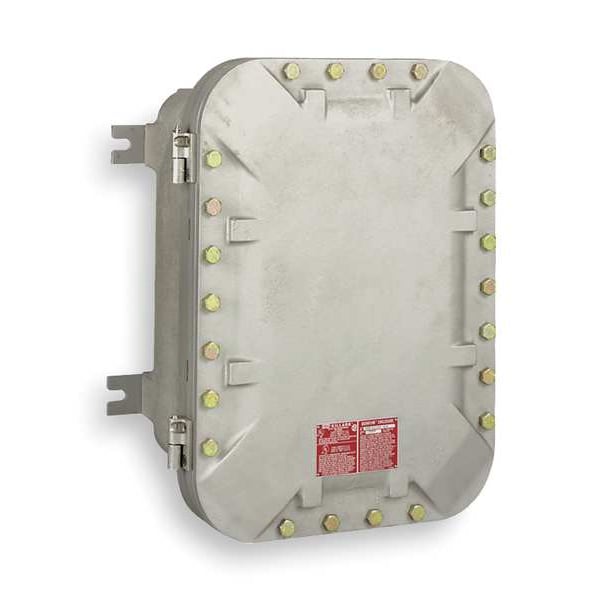

Aluminum Electrical Enclosures, 8 in H, 6 in D, 10 in W, NEMA 4, Bolted
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10 in |
| Nominal Height | 8 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Closure Method | Bolted |
| Enclosure Cover Type | Bolted |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Powder Epoxy/Polyester |
| Solid / Clear Cover | Solid |
| Mounting Type | Wall Mount |
| Standards | CSA File No. LR11716, IEC E x 07.0022U/IEC E x 07.0023, PTB 07 ATEX 1025U/PTB 07 ATEX 1024, UL File No. E10514/E83696/E12379 |
| Interior Panel | 2NWE3 |
| Lid Hinge | Yes |
| Max. Conduit Size | 2 in |
| Series | EXB |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Material | Aluminum |
| Safety Rating | Class 1, Division 1 |
| Enclosure Material | Copper-Free Aluminum |
| Gasket | Nitrile |
| Usable Opening Depth | 6.06 in |
| CSA File Number | LR11716 |
| Application | Locations made hazardous due to the presence of flammable gases or vapors, combustible dust, or easily ignitable fibers and flyings, and areas which are subject to corrosion, weather, and dampness. Petroleum refineries, chemical and petrochemical plants w |
| Environment - MERCH | Washdown and Corrosion Resistant |
| NEMA Enclosure Rating | 4, 4X, 3 |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Cover Style | Solid |
| Gasket Material | Nitrile |
| Cover Closure Type | Bolt On |
| Package Quantity | 1 |
