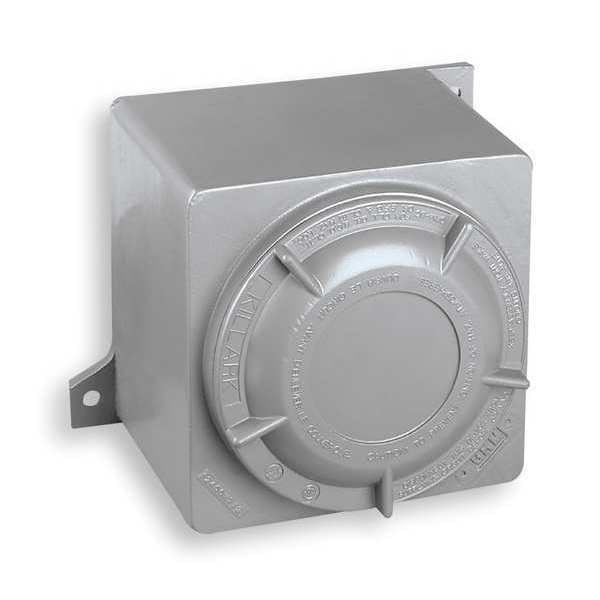

Aluminum Electrical Enclosures, 9-1/2 in H, 5 in D, 10-1/2 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10-1/2 in |
| Nominal Height | 9-1/2 in |
| Nominal Depth | 5 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Aluminum |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Epoxy/Polyester |
| Solid / Clear Cover | Solid |
| Standards | CSA File No. LR11716, IEC E x 05.0029U/IEC E x 05.0028, PTB 02 ATEX 1071U/PTB 02 ATEX 1072, UL File No. E10514/E83696 |
| Max. Conduit Size | 4 in |
| Lid Hinge | No |
| Interior Panel | 2NWD1 |
| Series | GR |
| Mounting Type | Wall Mount |
| NEMA Rating | 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Material | Aluminum |
| Safety Rating | Class 1, Division 1 |
| Gasket Replacement | GRH-RG |
| IP Rating | IP66 |
| Gasket | 57 63 Durometer BUNA-N |
| Enclosure Material | Copper-Free Aluminum |
| Usable Opening Depth | 5 in |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| CSA File Number | LR11716 |
| Cover Closure Type | Screw On |
| NEMA Enclosure Rating | 4, 4X, 3 |
| Gasket Material | Nitrile |
| Cover Style | Solid |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
