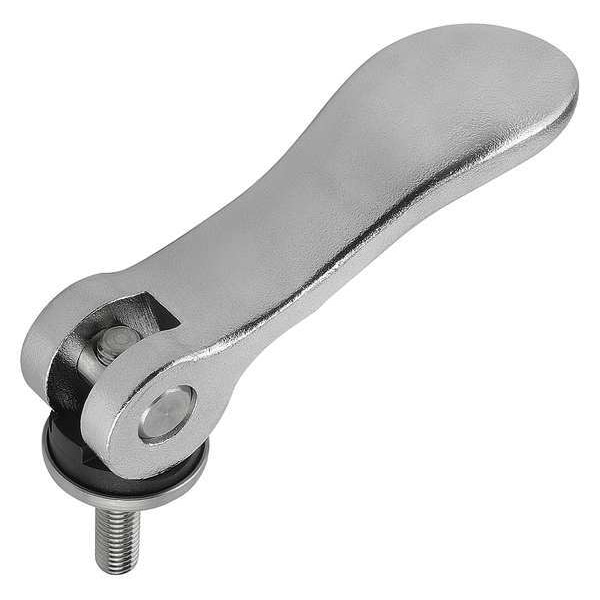

Cam Lever, Stainless Steel Electropolished, Size: 1, 1/4-20X20, A=70, 4, B=21, 5, Comp: SS
| Item | Cam Handle |
|---|---|
| Handle Type | Cam Lever |
| Overall Width | 21.5 mm |
| Thread Type | External |
| Overall Length | 79.2 mm |
| Type | Internal Threads |
| Width | 21.5 mm |
| Thread Size | 1/4"-20 |
| Finish | Uncoated, Electropolished |
| Screw Length | 20 mm |
| Material | Stainless Steel |
| Finish - Machining | Bright |
| Components Material | Stainless Steel |
| Handle Material | Stainless Steel |
| Thread Standard | UNC |
| Features | Screw and Washer, Stainless Steel Hinge Pin |
| Standards | RoHS, AISI 316 |
| Clamping Force - Maximum | 4 kN |
| Hardware Material | Stainless Steel, Plastic |
| Thread Material | Stainless Steel |
| Clamping Distance | 1.2 mm |
| Thread Length | 20 mm |
| Center Height - Maximum | 14.5 mm |
| Clamped Height | 22 mm |
| Measurement System | Inch |
| Handle Length | 70.4 mm |
| Handle Width | 15 mm |
| Package Quantity | 1 |
