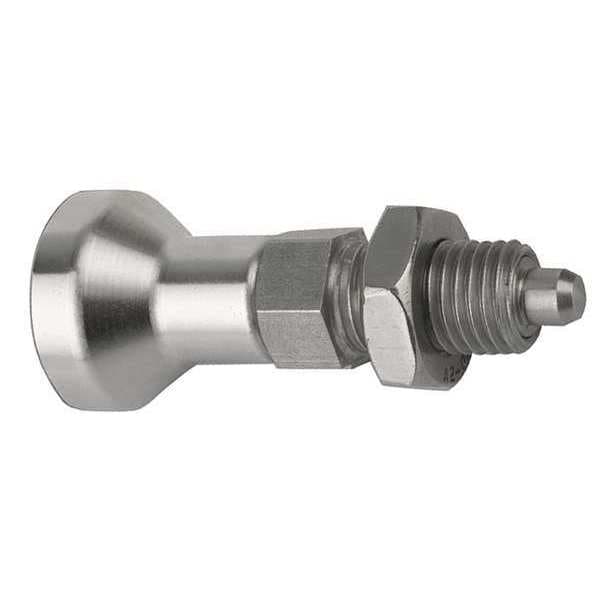

Indexing Plunger, All SS, Size: 0 D1= 5/16-24, D=4, Style B Non-Lockout W Locknut, Pin Not Hard
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 55/64 in |
| Pin Dia. | 5/32 in |
| Knob Type | Pull Knob |
| Material | Stainless Steel |
| Finish | Unfinished |
| Barrel Height | 0.51 in |
| Length | 1-11/16 in |
| Barrel Dia. | 33/64 in |
| Tip Dia. | 0.15 in |
| Plunger Dia. | 4 mm |
| Thread Size | 5/16"-24 |
| Tip Length | 0.157 in |
| Body Material | Stainless Steel |
| Retractable | Yes |
| Handle Type | Knob |
| Plunger Width | 4 mm |
| Plunger Material | Stainless Steel |
| Overall Length | 43 mm |
| Plunger Projection | 4 mm |
| Thread-Locking Element Included | No |
| Thread Length | 13 mm |
| Plunger Finish | Uncoated |
| Initial Nose Force | 6 N |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| With Locking Plunger | No |
| Final Nose Force | 12 N |
| Includes Thread-Locking Element | Thread-Locking Element Not Included |
| Body Length | 39 mm |
| Handle Diameter | 18 mm |
| Body Diameter | 10 mm |
| Body Finish | Uncoated |
| Measurement System | Inch |
| Nose Shape | Pin |
| Includes Locking Plunger | Locking Plunger Not Included |
| Retractability | Retractable |
| Plunger Material Grade | 303 |
| Handle Material | Stainless Steel |
| Body Material Grade | 303 |
| Nose Material | Stainless Steel |
| Package Quantity | 1 |
