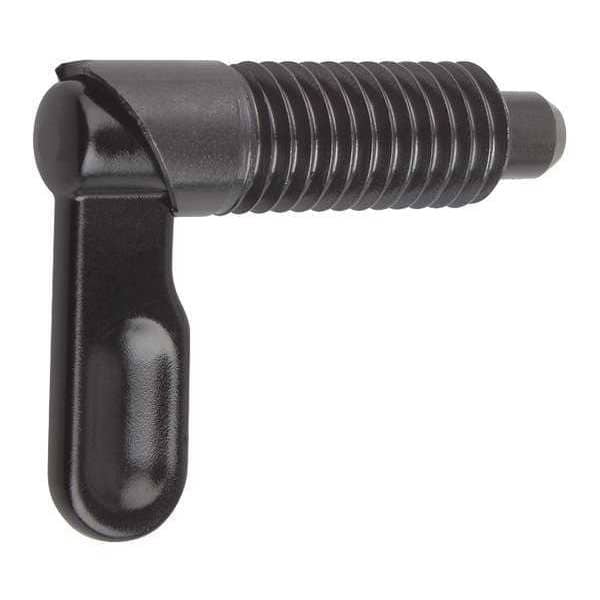

Indexing Plunger, Cam-Action, D=6, D1= M10, Steel, Style C, Without Locknut, Grip Powder Coated
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 63/64 in |
| Pin Dia. | 15/64 in |
| Knob Type | Cam Action |
| Material | Steel |
| Finish | Black Oxide |
| Barrel Dia. | 25/32 in |
| Length | 1-31/64 in |
| Tip Dia. | 0.23 in |
| Barrel Height | 0.78 in |
| Plunger Dia. | 6 mm |
| Thread Size | M10 |
| Tip Length | 0.236 in |
| Body Finish | Black Oxide |
| Plunger Material | Steel |
| Plunger Projection | 6 mm |
| Thread | Fully Threaded |
| Initial Nose Force | 8 N |
| Retractable | Yes |
| Final Nose Force | 14 N |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Handle Type | Lever |
| With Locking Plunger | Yes |
| Handle Material | Steel |
| Plunger Width | 6 mm |
| Body Length | 32 mm |
| Overall Length | 38 mm |
| Plunger Finish | Black Oxide |
| Thread Length | 20 mm |
| Body Material | Steel |
| Handle Width | 9 mm |
| Handle Length | 25 mm |
| Body Diameter | 10 mm |
| Measurement System | Metric |
| Nose Shape | Ball |
| Body Material Grade | 5.8 |
| Plunger Material Grade | 5.8 |
| Includes Locking Plunger | Locking Plunger Included |
| Handle Diameter | 10 mm |
| Includes Thread-Locking Element | Thread-Locking Element Included |
| Retractability | Retractable |
| Nose Material | Steel |
| Package Quantity | 1 |
