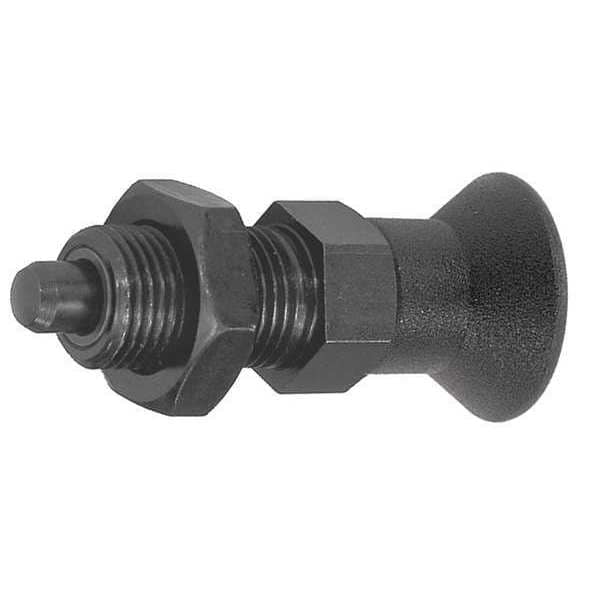

Indexing Plunger D1= 3/4-16, D=12, Style B, Non-Lockout w Locknut, Steel Hardened, Knob Plastic
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 1-27/64 in |
| Pin Dia. | 15/32 in |
| Knob Type | Pull Knob |
| Material | Steel |
| Finish | Black Oxide |
| Plunger Dia. | 12 mm |
| Tip Length | 0.472 in |
| Length | 3-5/64 in |
| Barrel Dia. | 63/64 in |
| Thread Size | 3/4"-16 |
| Tip Dia. | 0.47 in |
| Barrel Height | 0.98 in |
| Handle Type | Knob |
| Plunger Material | Steel |
| Plunger Width | 12 mm |
| Body Material | Steel |
| Retractable | Yes |
| Plunger Projection | 12 mm |
| Body Finish | Black Oxide |
| Handle Material | Thermoplastic |
| Final Nose Force | 39 N |
| Handle Color | Black |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| With Locking Plunger | No |
| Initial Nose Force | 15 N |
| Overall Length | 78 mm |
| Thread Length | 25 mm |
| Plunger Finish | Black Oxide |
| Includes Locking Plunger | Locking Plunger Not Included |
| Nose Shape | Pin |
| Measurement System | Inch |
| Body Diameter | 22 mm |
| Retractability | Retractable |
| Handle Diameter | 33 mm |
| Includes Thread-Locking Element | Thread-Locking Element Not Included |
| Body Length | 66 mm |
| Nose Material | Steel |
| Package Quantity | 1 |
