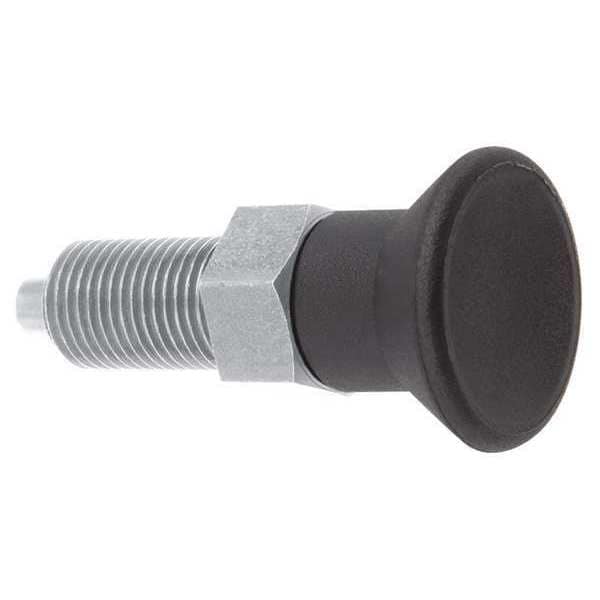

Indexing Plunger D1= M12X1, 5, D=6, Style A, Non-Lockout wo Locknut, Stainless Steel Not Hardened
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 15/16 in |
| Pin Dia. | 15/64 in |
| Knob Type | Pull Knob |
| Material | Stainless Steel |
| Finish | Unfinished |
| Barrel Height | 0.66 in |
| Thread Size | M12x1.5 |
| Barrel Dia. | 43/64 in |
| Length | 2-23/64 in |
| Tip Length | 0.236 in |
| Tip Dia. | 0.23 in |
| Plunger Dia. | 6 mm |
| Overall Length | 51.7 mm |
| Plunger Projection | 6 mm |
| Initial Nose Force | 6 N |
| Thread-Locking Element Included | No |
| Plunger Width | 6 mm |
| Thread Length | 17 mm |
| Plunger Finish | Uncoated |
| With Locking Plunger | No |
| Handle Material | Thermoplastic |
| Thread Pitch | 1.5 mm |
| Final Nose Force | 14 N |
| Handle Color | Black |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Retractable | Yes |
| Body Material | Stainless Steel |
| Handle Type | Knob |
| Plunger Material | Stainless Steel |
| Retractability | Retractable |
| Body Diameter | 14 mm |
| Includes Thread-Locking Element | Thread-Locking Element Not Included |
| Measurement System | Metric |
| Body Material Grade | 303 |
| Plunger Material Grade | 303 |
| Handle Diameter | 25 mm |
| Nose Shape | Ball |
| Body Finish | Uncoated |
| Body Length | 45.7 mm |
| Includes Locking Plunger | Locking Plunger Not Included |
| Nose Material | Stainless Steel |
| Package Quantity | 1 |
