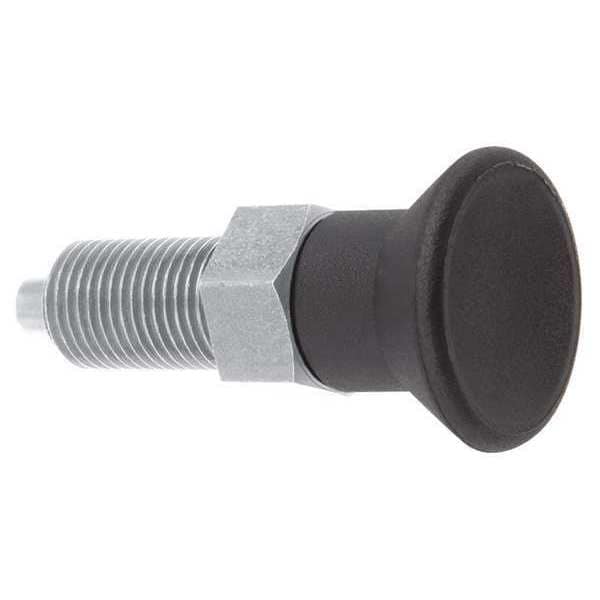

Indexing Plunger D1= M20X1, 5, D=12, Style A, Non-Lockout wo Locknut, Stainless Steel Hardened
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 1-27/64 in |
| Pin Dia. | 15/32 in |
| Knob Type | Pull Knob |
| Material | Stainless Steel |
| Finish | Unfinished |
| Barrel Height | 0.98 in |
| Length | 3-5/64 in |
| Plunger Dia. | 12 mm |
| Thread Size | M20x1.5 |
| Tip Length | 0.472 in |
| Tip Dia. | 0.47 in |
| Barrel Dia. | 63/64 in |
| Thread Pitch | 1.5 mm |
| Overall Length | 78 mm |
| Handle Material | Thermoplastic |
| Plunger Projection | 12 mm |
| Thread-Locking Element Included | No |
| Plunger Material | Stainless Steel |
| Handle Type | Knob |
| With Locking Plunger | No |
| Plunger Finish | Uncoated |
| Plunger Width | 12 mm |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Retractable | Yes |
| Body Material | Stainless Steel |
| Final Nose Force | 39 N |
| Thread Length | 25 mm |
| Initial Nose Force | 15 N |
| Handle Color | Black |
| Body Finish | Hardened |
| Handle Diameter | 33 mm |
| Includes Thread-Locking Element | Thread-Locking Element Not Included |
| Body Length | 66 mm |
| Body Diameter | 22 mm |
| Includes Locking Plunger | Locking Plunger Not Included |
| Measurement System | Metric |
| Retractability | Retractable |
| Plunger Material Grade | 420 |
| Nose Shape | Ball |
| Body Material Grade | 303 |
| Nose Material | Stainless Steel |
| Package Quantity | 1 |
