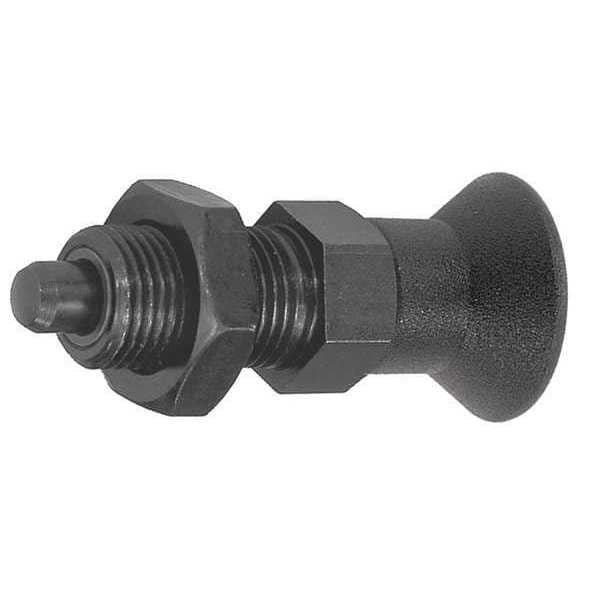

Indexing Plunger D1= M24X2, D=16, Style B, Non-Lockout w Locknut, Steel Hardened, Knob Plastic Black
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 1-13/16 in |
| Pin Dia. | 5/8 in |
| Knob Type | Pull Knob |
| Material | Steel |
| Finish | Black Oxide |
| Barrel Height | 1.1 in |
| Plunger Dia. | 16 mm |
| Thread Size | M24x2 |
| Barrel Dia. | 1-7/64 in |
| Tip Dia. | 0.62 in |
| Length | 3-49/64 in |
| Tip Length | 0.629 in |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Final Nose Force | 46 N |
| Handle Type | Knob |
| Thread Pitch | 2 mm |
| Plunger Material | Steel |
| Plunger Projection | 16 mm |
| Handle Material | Thermoplastic |
| Body Finish | Black Oxide |
| With Locking Plunger | No |
| Thread-Locking Element Included | No |
| Plunger Finish | Black Oxide |
| Plunger Width | 16 mm |
| Handle Color | Black |
| Overall Length | 96 mm |
| Body Material | Steel |
| Thread Length | 28 mm |
| Retractable | Yes |
| Initial Nose Force | 20 N |
| Includes Thread-Locking Element | Thread-Locking Element Not Included |
| Body Diameter | 27 mm |
| Nose Shape | Ball |
| Handle Diameter | 40 mm |
| Measurement System | Metric |
| Includes Locking Plunger | Locking Plunger Not Included |
| Body Length | 80 mm |
| Retractability | Retractable |
| Nose Material | Steel |
| Package Quantity | 1 |
