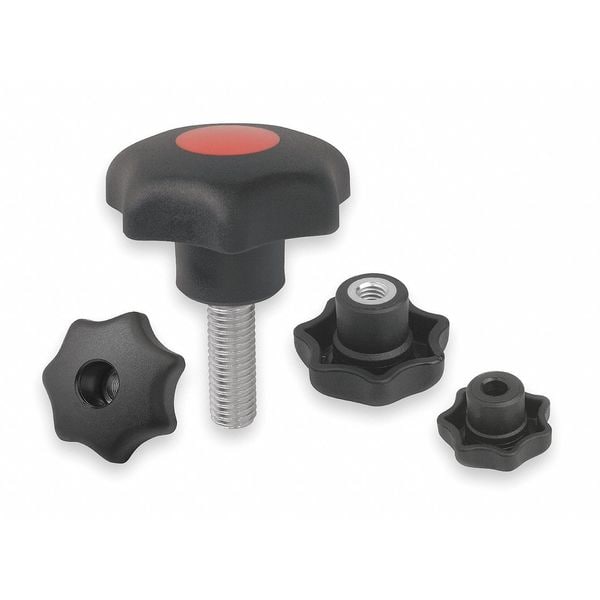

Star Grip, DIN 6336 Similar, D=3/8-16, D1= 50, Tapped Bushing, Steel, Black Plastic, Cap: Black
| Base Dia. (In.) | 0.8661 |
|---|---|
| Color | Black |
| Diameter | 50 mm |
| Finish | Matte |
| Height | 32 mm |
| Knob Type | Grip |
| Material | Thermoplastic |
| Screw Length | 14 mm |
| Style | K |
| Thread Size | 3/8"-16 |
| Overall Length | 63 mm |
| Standards | DIN 6336 |
| Item | Hand Knob |
| Type | Internal Thread |
| Overall Height | 40 mm |
| Handle Dia. | 50 mm |
| Tap Type | Blind Hole |
| Handle Material | Thermoplastic |
| Base Dia. | 22 mm |
| Handle Type | Star |
| Features | Bushing Trivalent Blue Passivated |
| Base Height | 21 mm |
| Handle Diameter | 50 mm |
| Thread Material | Steel |
| Measurement System | Inch |
| Thread Length | 14 mm |
| Unthreaded Hole Diameter | Not Applicable |
| Base Diameter | 26 mm |
| Unthreaded Hole Depth | Not Applicable |
| Package Quantity | 1 |
