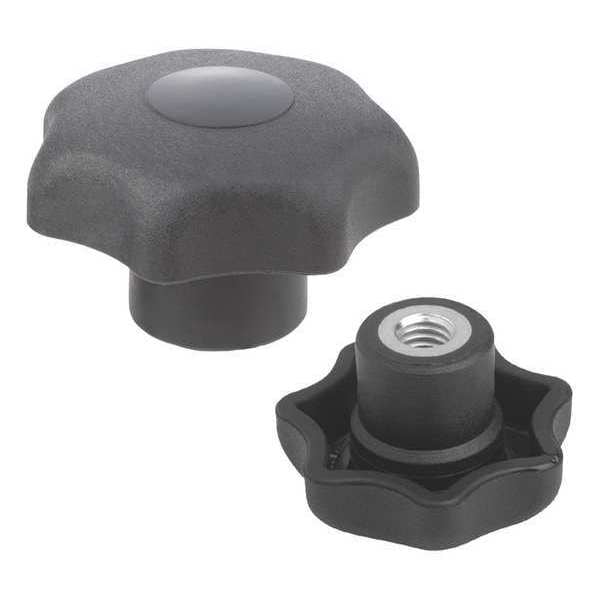

Star Grip, Similar To DIN 6336, D=10-32, D1= 25 H=16, Internal Thread, Cap and Grip: Black Plastic
| Base Dia. (In.) | 0.4724 |
|---|---|
| Color | Gray |
| Diameter | 25 mm |
| Finish | Matte |
| Height | 16 mm |
| Knob Type | Grip |
| Material | Thermoplastic |
| Screw Length | 10 mm |
| Style | K |
| Thread Size | #10-32 |
| Overall Length | 25 mm |
| Standards | DIN 6336 |
| Type | Internal Thread |
| Item | Hand Knob |
| Overall Height | 16 mm |
| Thread Type | UNF |
| Base Dia. | 12 mm |
| Tap Type | Blind Hole |
| Handle Material | Thermoplastic |
| Thread Standard | UNF |
| Handle Dia. | 25 mm |
| Handle Type | Star |
| Features | Bright Bushing |
| Unthreaded Hole Diameter | Not Applicable |
| Base Height | 8 mm |
| Handle Diameter | 25 mm |
| Base Diameter | 12 mm |
| Thread Material | Stainless Steel |
| Unthreaded Hole Depth | Not Applicable |
| Measurement System | Inch |
| Thread Length | 10 mm |
| Package Quantity | 1 |
