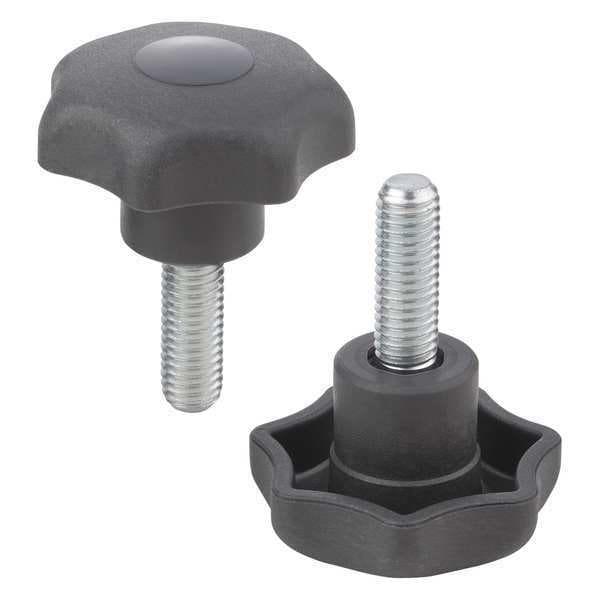

Star Grip, Similar To DIN 6336, D=5/16-18X20, D1= 40 H=25, External Thread, Thermoplastic Black
| Base Dia. (In.) | 0.7087 |
|---|---|
| Color | Gray |
| Diameter | 40 mm |
| Finish | Matte |
| Height | 25 mm |
| Knob Type | Grip |
| Material | Thermoplastic |
| Screw Length | 20 mm |
| Style | K |
| Thread Size | 5/16"-18 |
| Overall Length | 40 mm |
| Type | External Thread |
| Item | Hand Knob |
| Standards | DIN 6336 |
| Thread Type | UNC |
| Overall Height | 25 mm |
| Handle Dia. | 40 mm |
| Thread Standard | UNC |
| Base Dia. | 18 mm |
| Handle Type | Star |
| Handle Material | Thermoplastic |
| Features | Bright Threaded Pin |
| Thread Material | Stainless Steel |
| Tap Type | Not Applicable |
| Thread Length | 20 mm |
| Measurement System | Inch |
| Unthreaded Hole Depth | Not Applicable |
| Handle Diameter | 40 mm |
| Unthreaded Hole Diameter | Not Applicable |
| Base Diameter | 18 mm |
| Base Height | 13 mm |
| Package Quantity | 1 |
