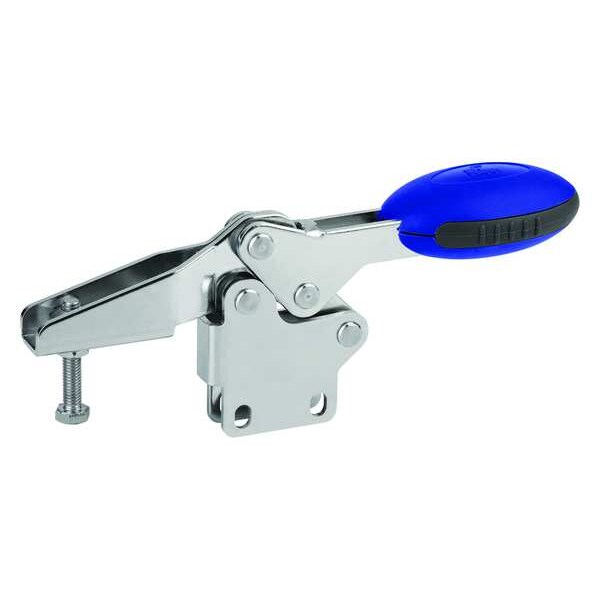

Toggle Clamp Horizontal, Foot Vert. F1=2000, Clamping Spindle M08X45, Stainless Steel, Blue
| Item | Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 186 |
| Overall Height (In.) | 3.47 |
| Body Material | Stainless Steel |
| Overall Length (In.) | 8.78 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 1.83 |
| Spindle | Threaded Stainless Steel |
| Handle | 180 deg |
| Arm | Horizontal Closing |
| Application | Clamping |
| Includes | Adjustable Clamping Spindle, Straight Foot |
| Base Mounting Centers (In.) | 1.02 |
| Dia. (In.) | 0.24 |
| Thread Size | M8 |
| Construction | Stainless Steel |
| Overall Length | 223.1 mm |
| Mounting Holes Center to Center - Short Side | 14.1 mm |
| Height Under Arm | 46.5 mm |
| Handle Orientation | Horizontal |
| Spindle Thread Size | M8 x 45 |
| Mounting Holes Center to Center - Long Side | 26 mm |
| Holding Capacity - Maximum | 186 lbf |
| Handle Material | Polyamide |
| Overall Depth | 88.2 mm |
| Package Quantity | 1 |
