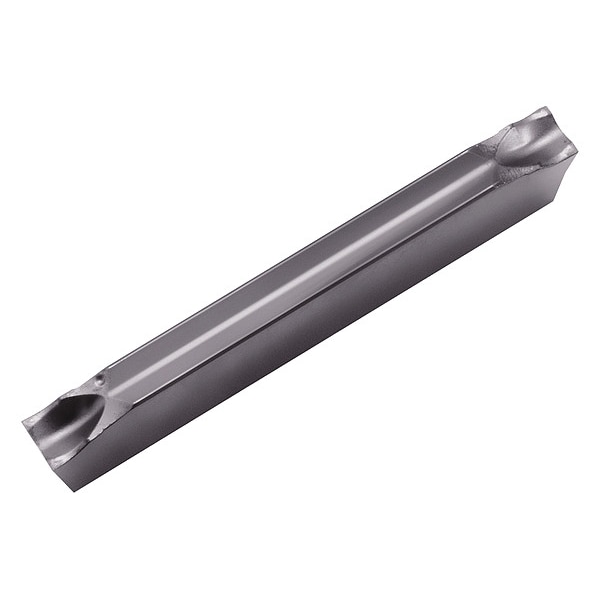

Cut-Off Insert, GDM 1516N003PF PR1535 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| Rake | Positive |
| ISO Number | GDM1516N-003PF |
| Overall Length | 16 mm |
| Corner Radius | 0.03 mm |
| Secondary Material Application | Stainless Steel |
| Insert Size | 1516 |
| Max. Grooving Width | 1.5 mm |
| Hole Type | No Hole |
| For Toolholder | KGDL...-1.5, KGDL...JX-1.5, KGDR...-1.5, KGDR...JX-1.5, KGDSL...JX-1.5, KGDSR...JX-1.5 |
| Cutting Height | 3.7 mm |
| Measurement System | Metric |
| Chip-Breaker Code | PF |
| Manufacturer Grade | PR1535 |
| ANSI Code | GDM1516N003PF |
| Coating Process | PVD |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | S |
| Primary Material Application | High-Temperature Alloys |
| Number of Cutting Edges | 2 |
| Feed Type | Low |
| Secondary Material Application ISO Code | M |
| Finish - Machining | Megacoat Nano |
| Insert Holding Type | Clamp |
| Cutting Application | Cut-Off for Small Parts |
| Package Quantity | 1 |
