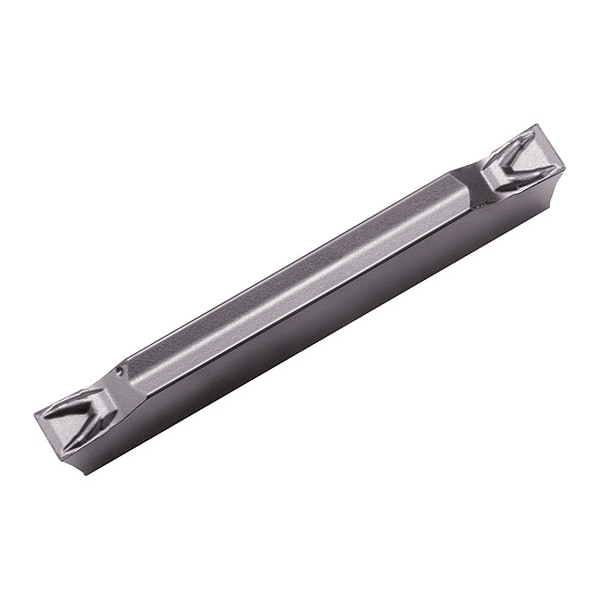

Cut-Off Insert, GDM 2020N010PQ PR1535 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| ISO Number | GDM2020N-010PQ |
| Corner Radius | 0.1 mm |
| Overall Length | 20 mm |
| Rake | Positive |
| Hole Type | No Hole |
| Feed Type | Medium |
| Primary Material Application ISO Code | S |
| Finish - Machining | Megacoat Nano |
| Secondary Material Application | Stainless Steel |
| Measurement System | Metric |
| Cutting Application | Cut-Off for Small Parts |
| Insert Holding Type | Clamp |
| Number of Cutting Edges | 2 |
| Max. Grooving Width | 2 mm |
| Cutting Height | 4.3 mm |
| For Toolholder | KGDL...-2, KGDL...JX-2, KGDR...-2, KGDR...JX-2, KGDSL...JX-2, KGDSR...JX-2 |
| ANSI Code | GDM2020N010PQ |
| Coating Process | PVD |
| Primary Material Application | High-Temperature Alloys |
| Insert Size | 2020 |
| Manufacturer Grade | PR1535 |
| Chip-Breaker Code | PQ |
| Secondary Material Application ISO Code | M |
| Material - Machining | Carbide |
| Package Quantity | 1 |
