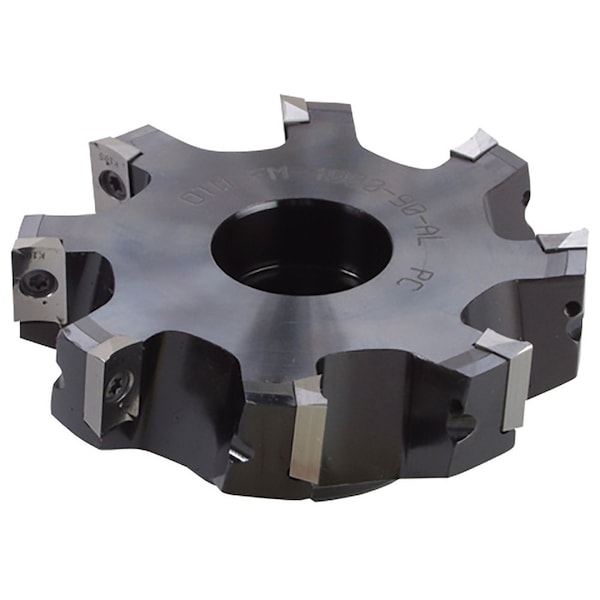

Face Mill, FMAL 4000905, FM-AL 4.0000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.64 in |
| Overall Length | 1.5748 in |
| Insert Size | 1604 |
| Cutting Direction | Right Hand |
| Features | 8 Degrees Max. Ramping Angle, Standard Pitch |
| Arbor Dia. | 1 in |
| Coolant Fed | Non-Coolant Through |
| Insert Style | APET |
| ANSI Code | FMAL4000905 |
| Rake | 0 Degrees Radial, 5 Degrees Axial |
| Number of Inserts | 5 |
| Cutting Application | Aluminum Milling, Face Milling, Ramping, Shoulder Milling, Slotting |
| Insert Holding Type | Screw |
| Side Cutting Edge Angle | 90 deg |
| ISO Number | FMAL4000905 |
| Max. Cutting Dia. | 4 in |
| Package Quantity | 1 |
