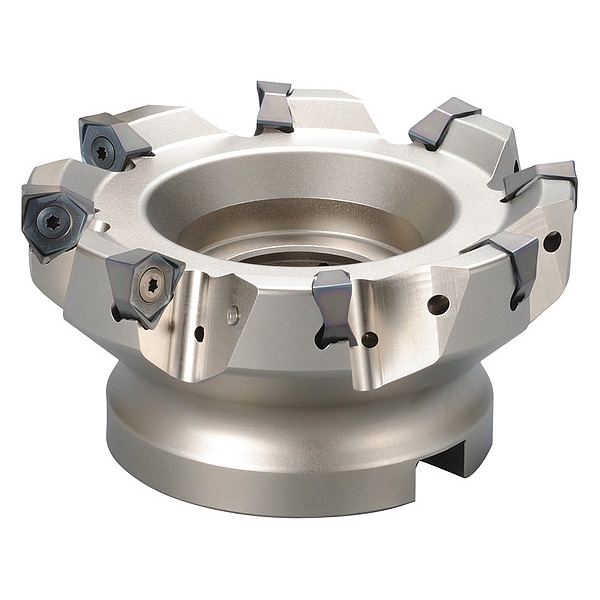

Face Mill, MFWN 90160R8T, M-SIX 160.00mm Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 8 mm |
| Overall Length | 63 mm |
| Cutting Direction | Right Hand |
| Insert Size | 080608 |
| Features | Coarse Pitch, Double-Sided 6-Edge Inserts, Resistant to Chattering and Applicable to Long Overhang, Sharp Cutting Due to Lower Cutting Forces |
| ANSI Code | MFWN90160R8T |
| Arbor Dia. | 2 in |
| Coolant Fed | Non-Coolant Through |
| Number of Inserts | 8 |
| Side Cutting Edge Angle | 90 deg |
| Rake | -7 Degrees Radial, 13 Degrees Axial |
| Max. Cutting Dia. | 160 mm |
| ISO Number | MFWN90160R-8T |
| Cutting Application | Face Milling, Plunge Cutting, Shoulder Milling, Slotting |
| Insert Style | WNEU, WNGT, WNMU |
| Insert Holding Type | Screw |
| Package Quantity | 1 |
