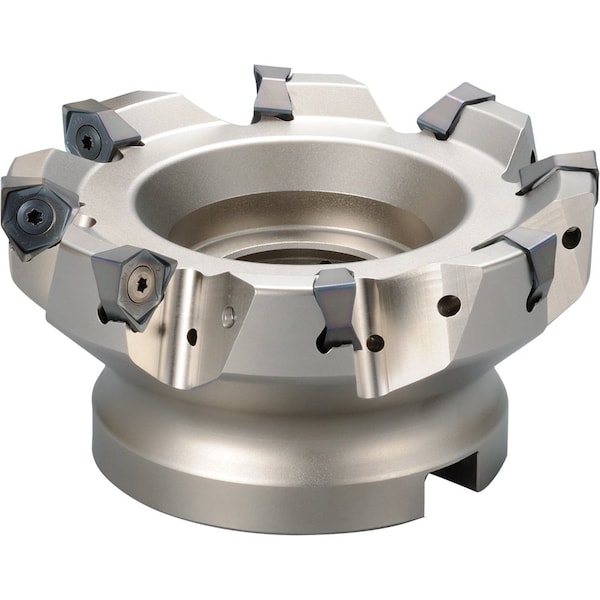

Face Mill, MFWN 903000R5T, M-SIX 3.0000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.315 in |
| Overall Length | 1.9685 in |
| Cutting Direction | Right Hand |
| Insert Size | 080608 |
| Features | Double-Sided 6-Edge Inserts, Fine Pitch, Resistant to Chattering and Applicable to Long Overhang, Sharp Cutting Due to Lower Cutting Forces |
| ISO Number | MFWN903000R-5T |
| Max. Cutting Dia. | 3 in |
| ANSI Code | MFWN903000R5T |
| Side Cutting Edge Angle | 90 deg |
| Insert Holding Type | Screw |
| Cutting Application | Face Milling, Plunge Cutting, Shoulder Milling, Slotting |
| Hub Outside Dia. | 2.2835 in |
| Number of Inserts | 5 |
| Rake | -9 Degrees Radial, 13 Degrees Axial |
| Arbor Dia. | 1 in |
| Coolant Fed | Coolant Through |
| Insert Style | WNEU, WNGT, WNMU |
| Package Quantity | 1 |
