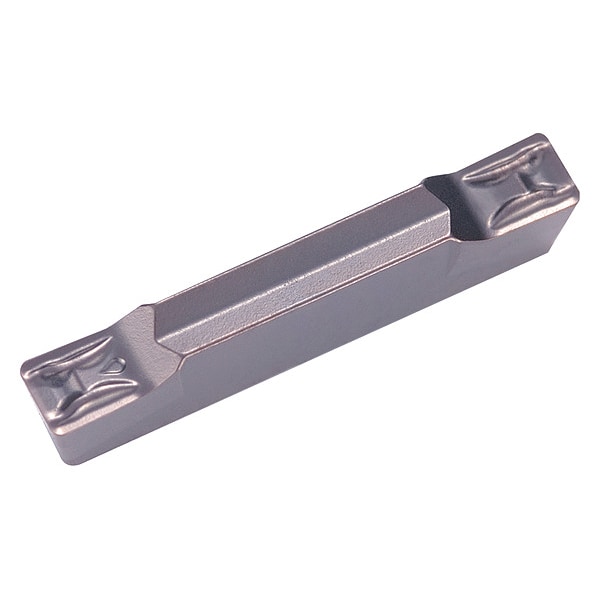

Grooving Insert, GDM 4020N020GM PR1225 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| Rake | Positive |
| ISO Number | GDM4020N-020GM |
| Corner Radius | 0.2 mm |
| Overall Length | 20 mm |
| Primary Material Application ISO Code | P |
| Measurement System | Metric |
| Hole Type | No Hole |
| Insert Size | 4020 |
| Cutting Location | External |
| Manufacturer Grade | PR1225 |
| Insert Holding Type | Clamp |
| Material - Machining | Carbide |
| Max. Grooving Width | 4 mm |
| Secondary Material Application | Stainless Steel |
| Finish - Machining | Megacoat |
| ANSI Code | GDM4020N020GM |
| Chip-Breaker Code | GM |
| Coating Process | PVD |
| Primary Material Application | Steel |
| For Toolholder | KGDL...-3, KGDL...-3JX, KGDL...JX-3, KGDLK-3, KGDR...-3, KGDR...-3JX, KGDR...JX-3, KGDRK-3 |
| Number of Cutting Edges | 2 |
| Secondary Material Application ISO Code | M |
| Cutting Application | Grooving, Traversing |
| Cutting Height | 4.3 mm |
| Package Quantity | 1 |
