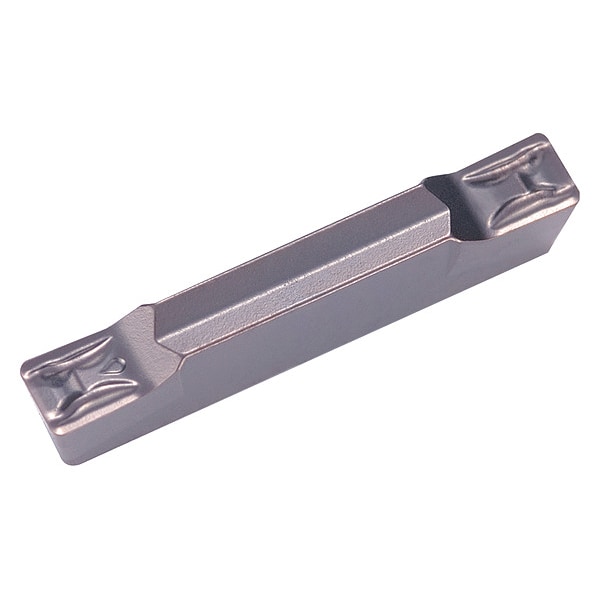

Grooving Insert, GDM 5020N040GM PR1535 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| Corner Radius | 0.4 mm |
| Overall Length | 20 mm |
| ISO Number | GDM5020N-040GM |
| Rake | Positive |
| Secondary Material Application ISO Code | M |
| Measurement System | Metric |
| Number of Cutting Edges | 2 |
| Max. Grooving Width | 5 mm |
| Cutting Location | External |
| Manufacturer Grade | PR1535 |
| Insert Size | 5020 |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | S |
| Insert Holding Type | Clamp |
| Finish - Machining | Megacoat Nano |
| Coating Process | PVD |
| Secondary Material Application | Stainless Steel |
| ANSI Code | GDM5020N040GM |
| Hole Type | No Hole |
| Chip-Breaker Code | GM |
| For Toolholder | KGDL-4, KGDL-5, KGDL...-4..., KGDL...-5, KGDL...JX-4, KGDR-4, KGDR-5, KGDR...-4..., KGDR...-5, KGDR...JX-4 |
| Cutting Height | 4.3 mm |
| Primary Material Application | High-Temperature Alloys |
| Cutting Application | Grooving, Traversing |
| Package Quantity | 1 |
