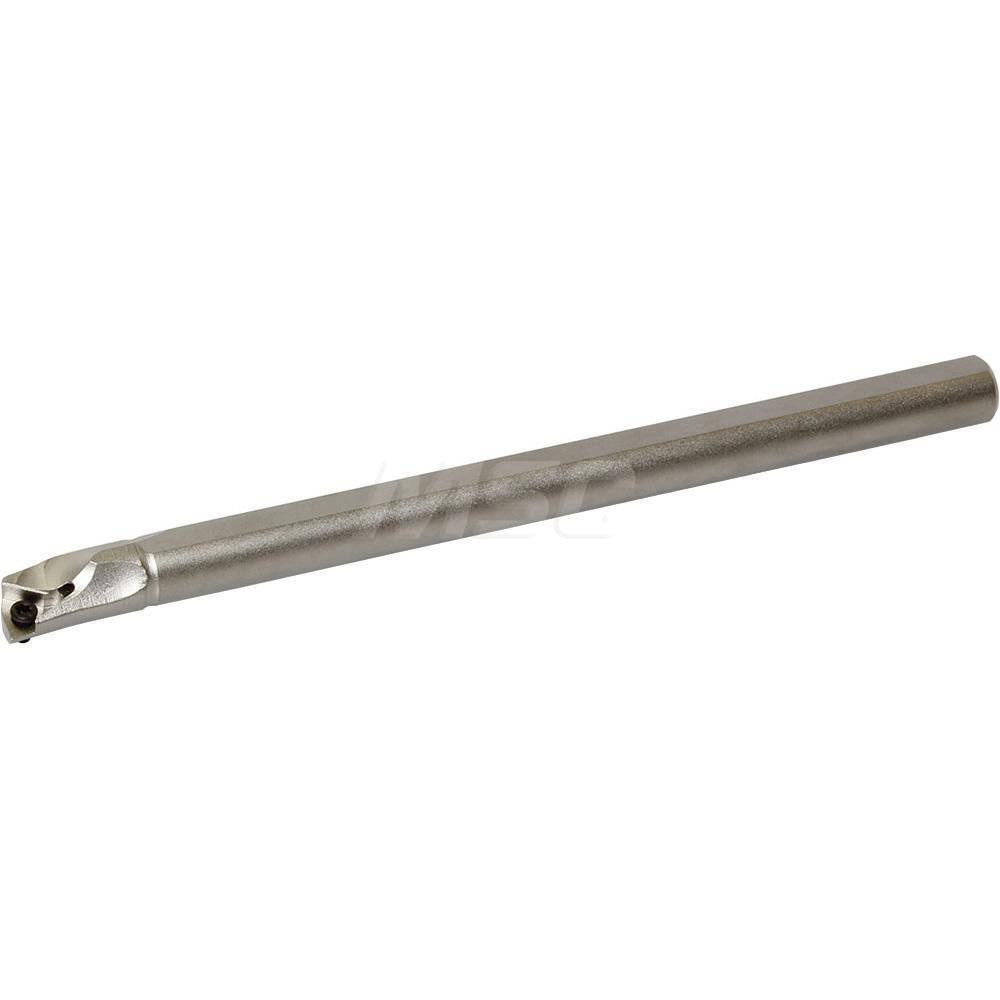

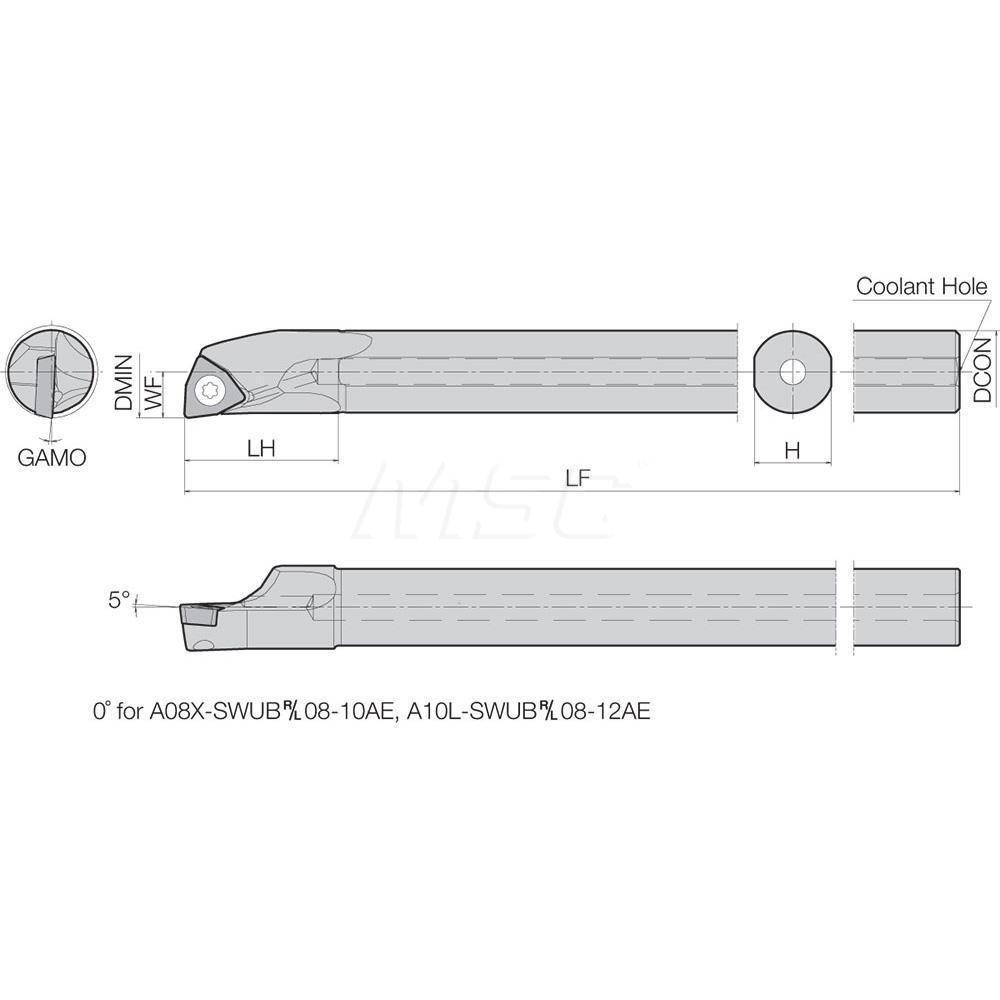

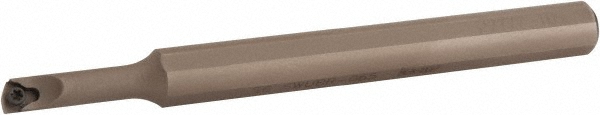

6.0000" OAL, Screw, Uses WBGT 1515.., WBGW 1515.. & WBMT 1515.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.4720 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 0.7870 |
| Toolholder Style | S/A-SWUB(P)-AE |
| Tool Material | Steel |
| Insert Compatibility | WBMT 1515..; WBGW 1515..; WBGT 1515.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Compatible Insert Size Code | 1515 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Trigon |
| Rake | Negative |
| Rake Angle | -10.00 |

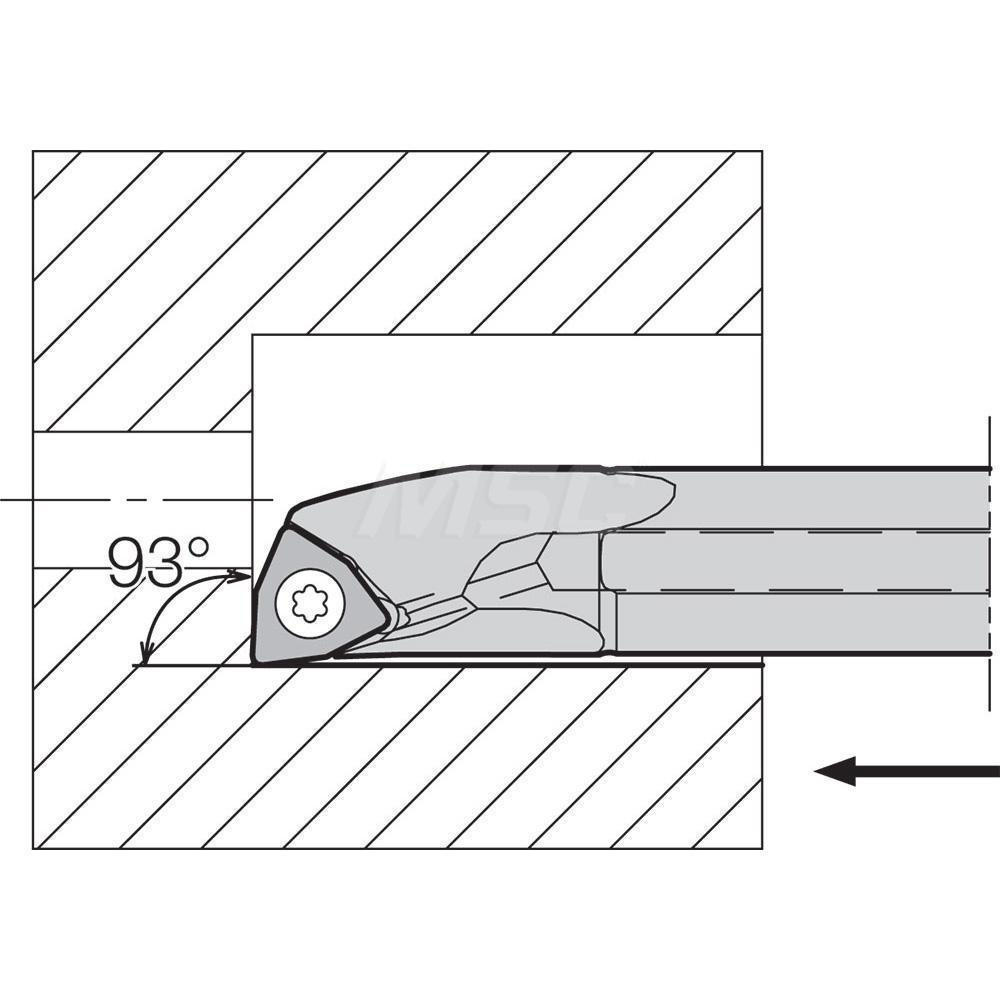

| Lead Angle | 3 |
| Series | Dynamic Bars |
| Insert Inscribed Circle (Inch) | 3/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.1875 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2360 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Coolant Hole Diameter (mm) | 3.00 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 69347573 |
