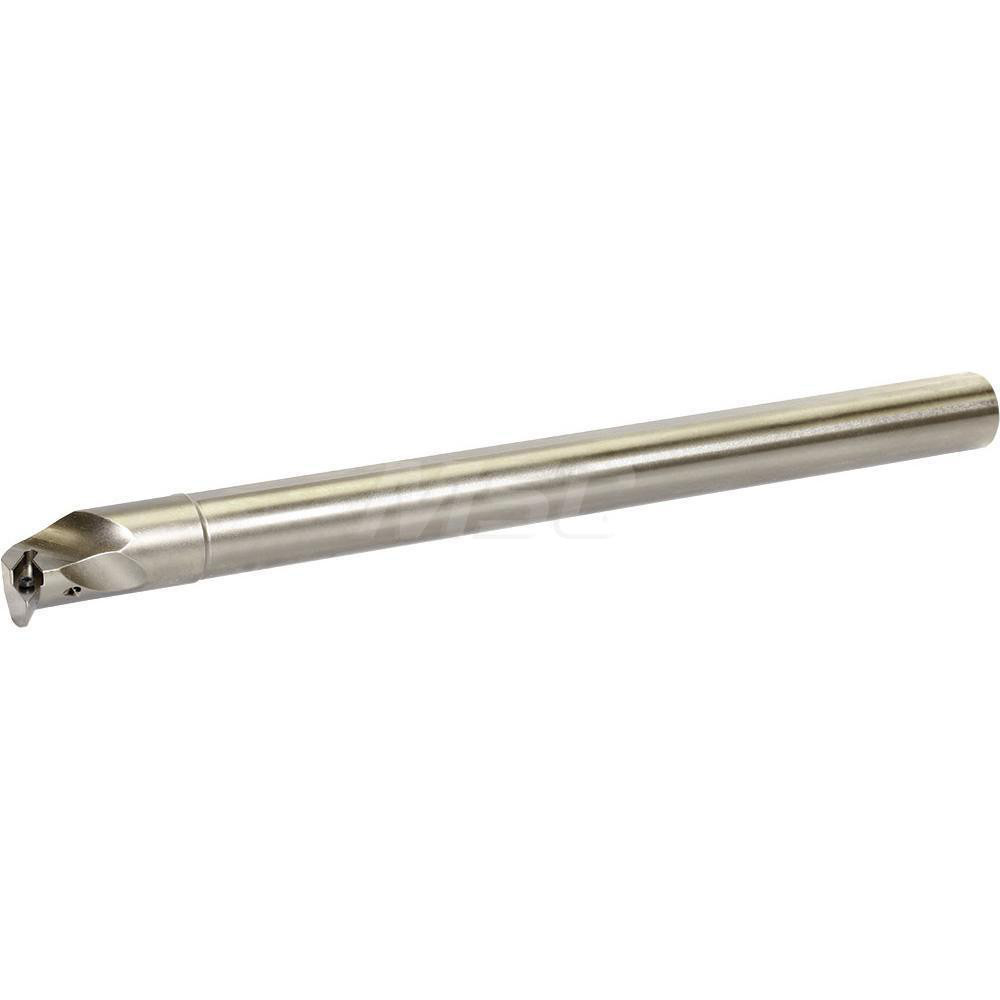

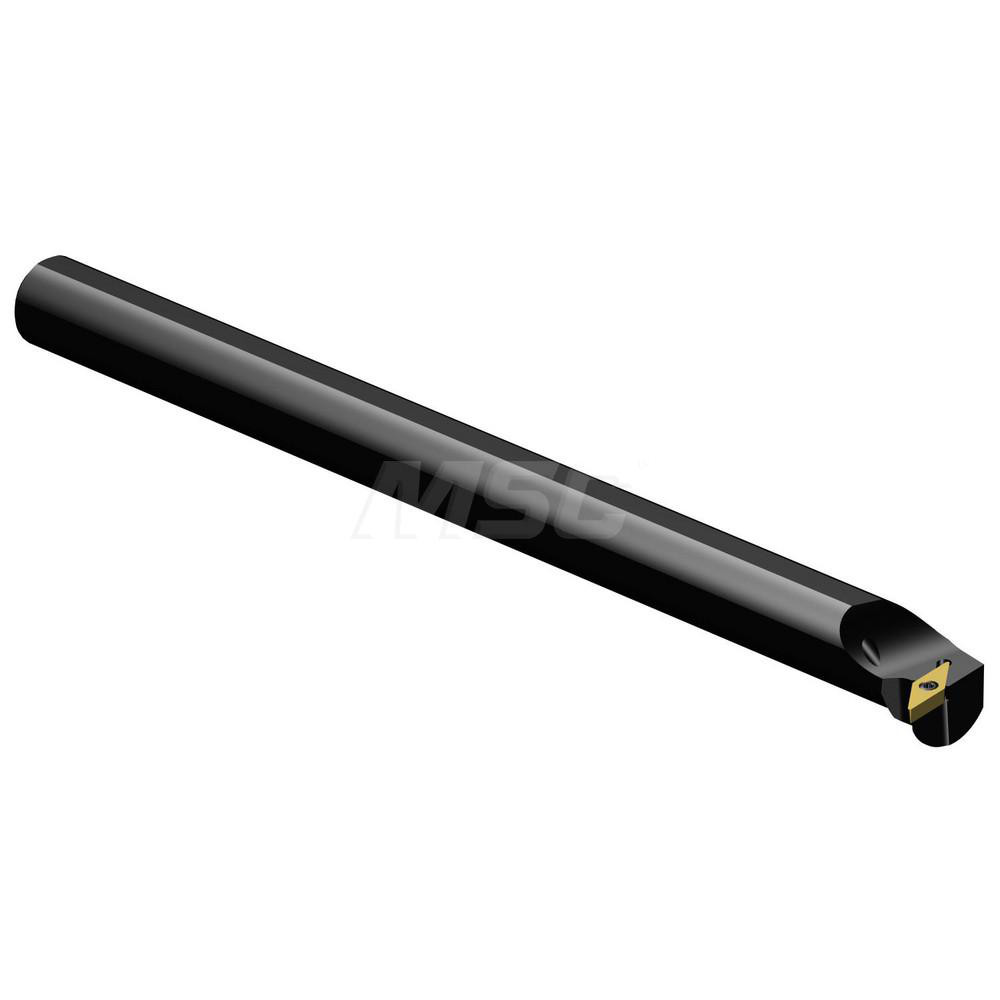

10.0000" OAL, Screw, Uses VBET 22.., VBGT 22.., VBGW 22.., VBMT 22.., VCGT 22.. & VCMT 22.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.5945 |
| Maximum Bore Depth (mm) | 40.50 |
| Toolholder Style | A-SVUC(B)-AE |
| Tool Material | Steel |
| Insert Compatibility | VBGT 22..; VBGW 22..; VBMT 22..; VCGT 22..; VCMT 22..; VBET 22.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | 22 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -7.00 |

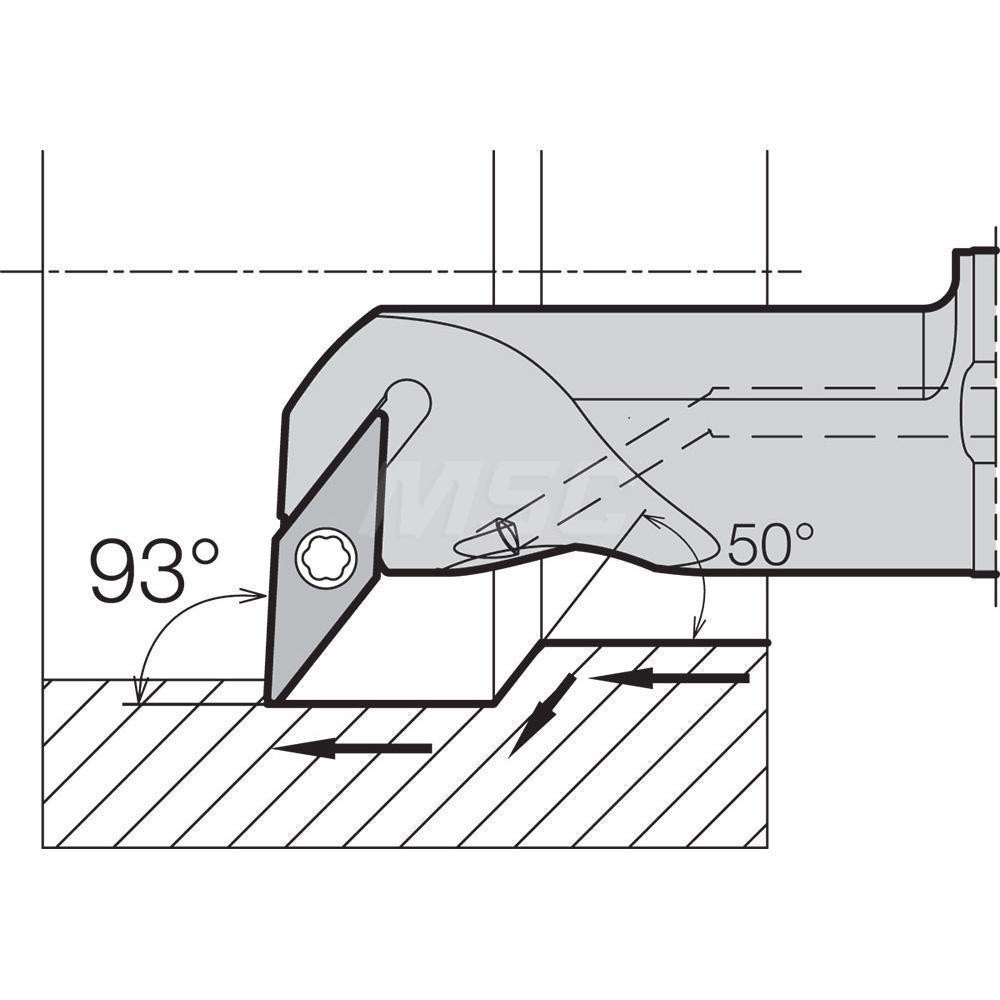

| Lead Angle | 3 |
| Series | Dynamic Bars |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Copying; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.7087 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 35162916 |
