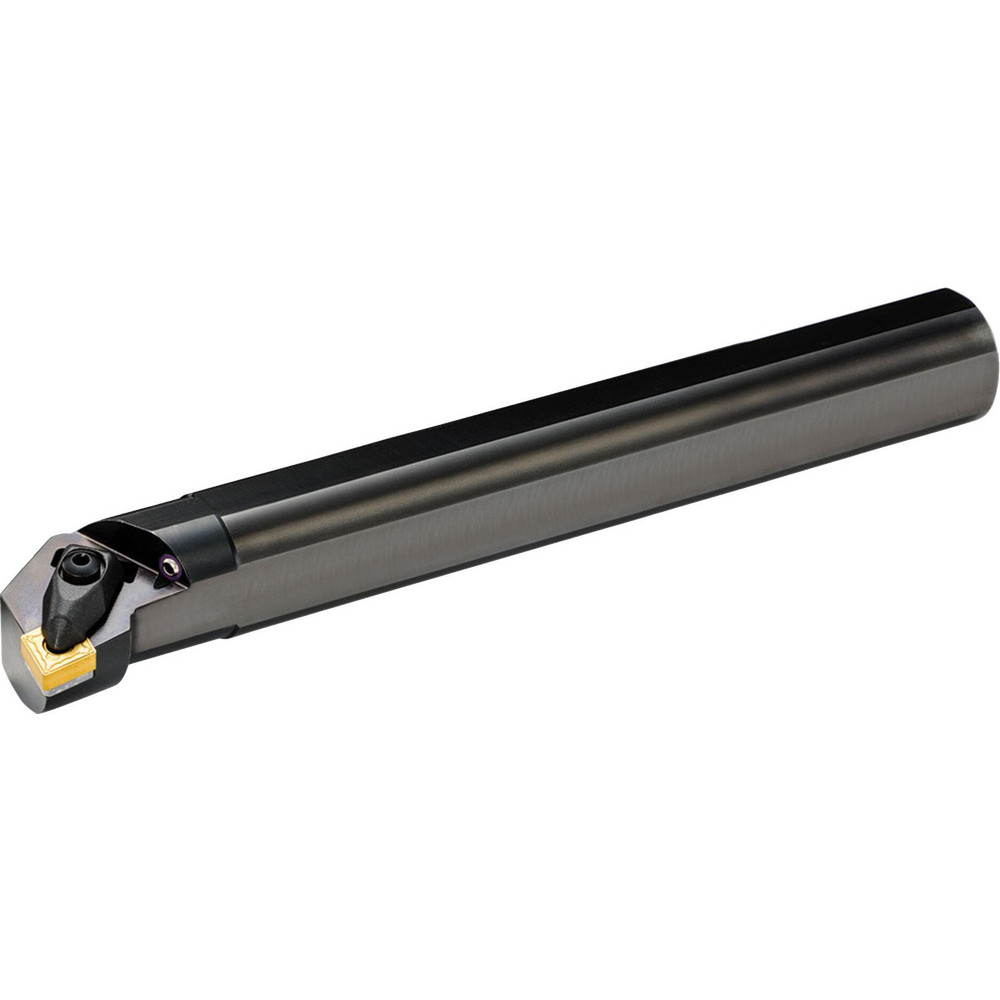

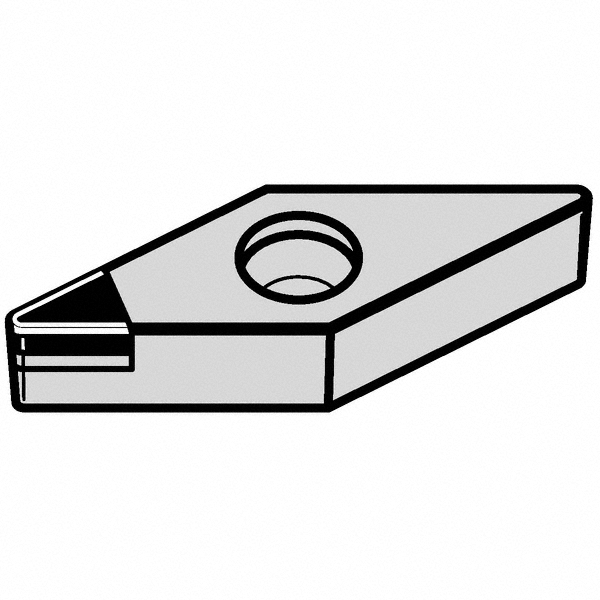

12.0000" OAL, Screw, Uses VBGT 33.., VBGW 33.., VBMT 33.., VCGT 33.., VCGW 33.. & VCMT 33.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.3400 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.5830 |
| Toolholder Style | A-SVUC(B)-AE |
| Tool Material | Steel |

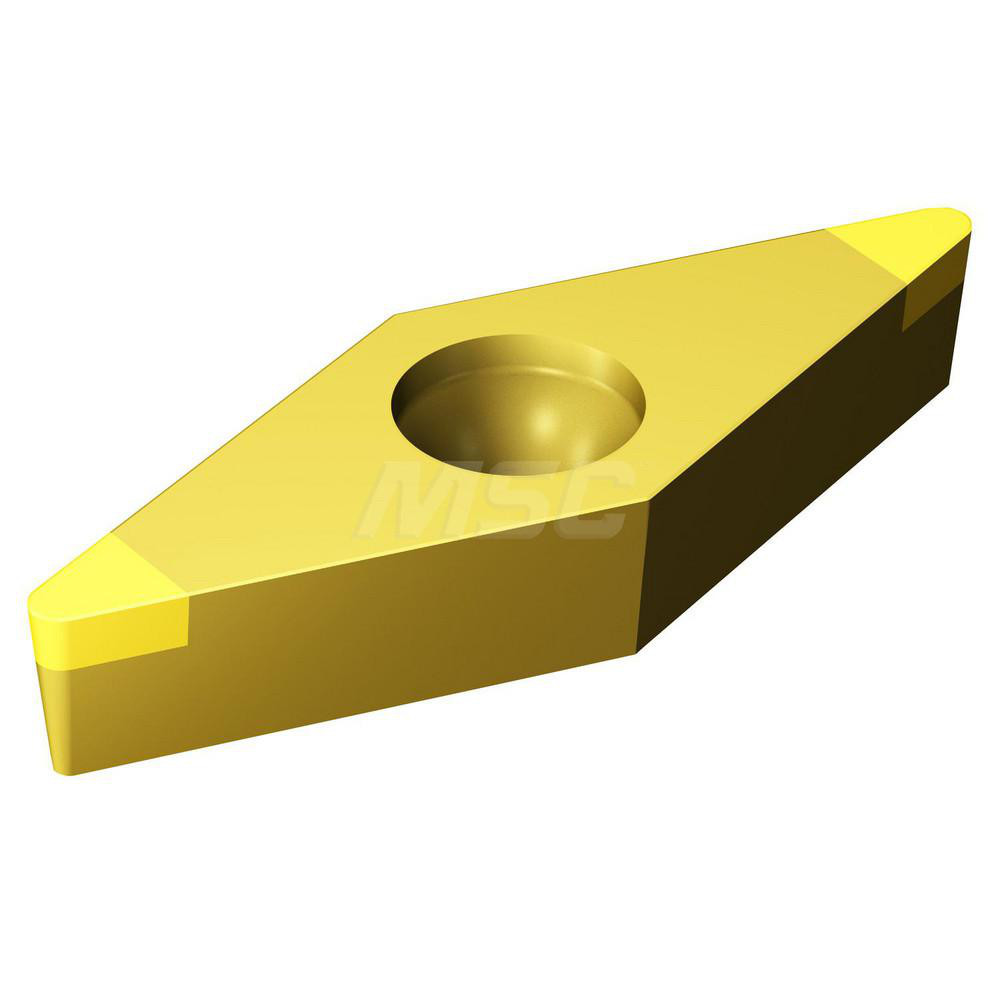

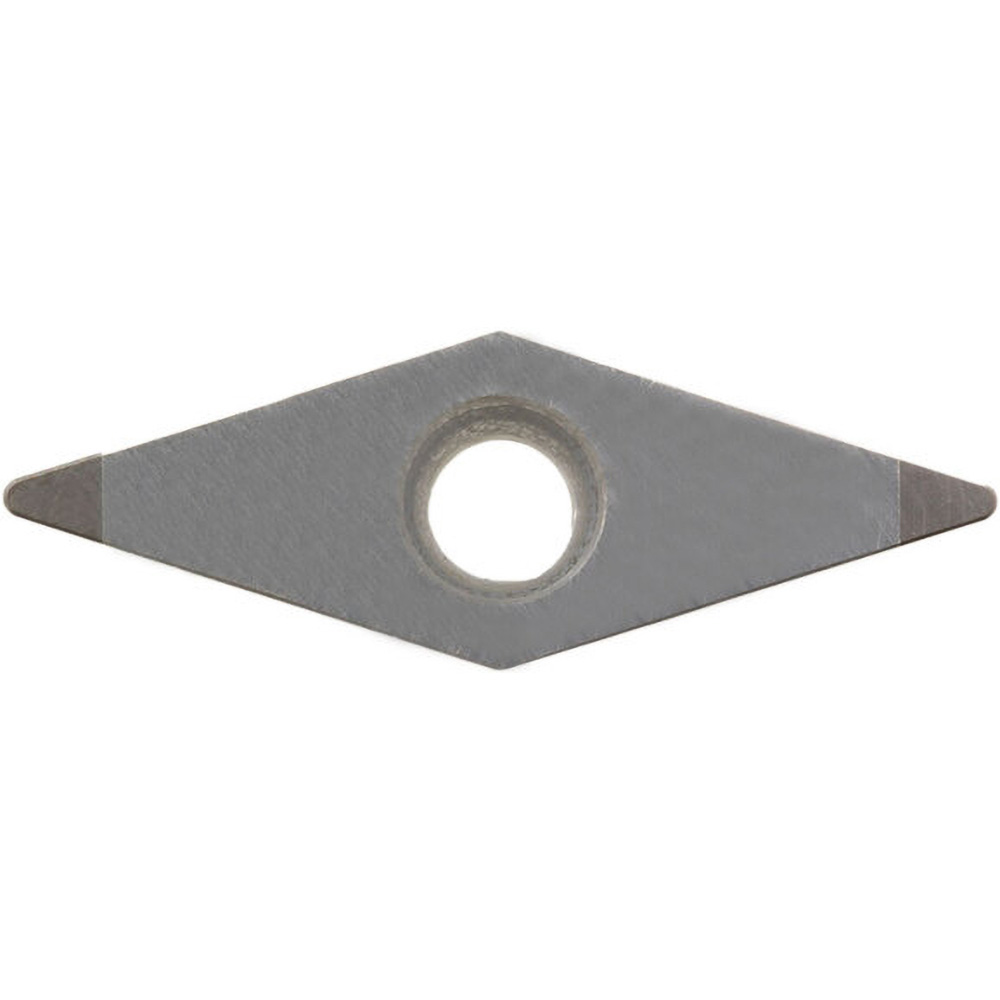

| Insert Compatibility | VBGT 33..; VBGW 33..; VBMT 33..; VCMT 33..; VCGW 33..; VCGT 33.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | 33 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -13.00 |

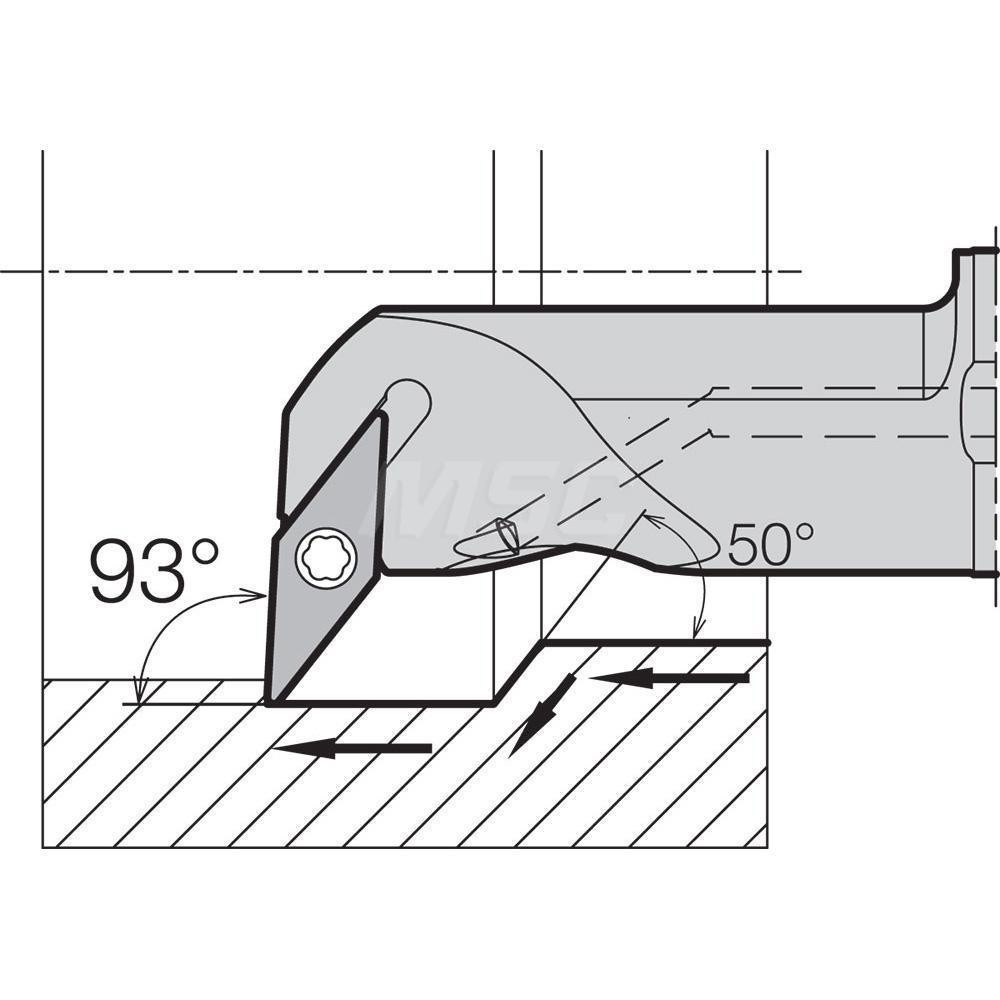

| Lead Angle | 3 |
| Series | Dynamic Bars |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Copying; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.8070 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 50415017 |
