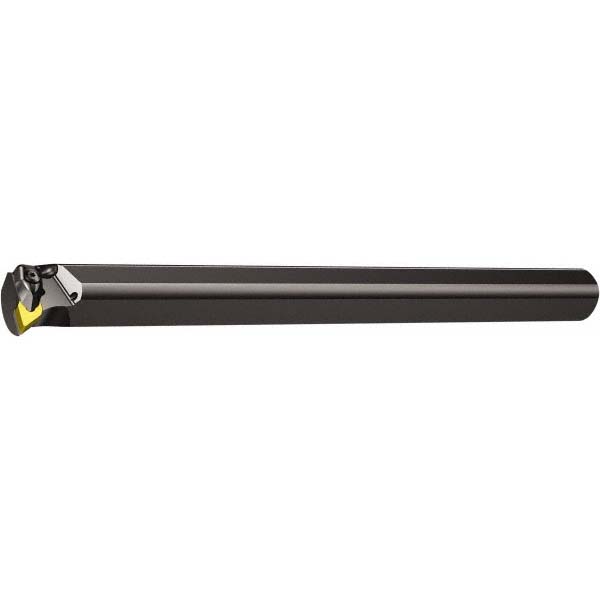

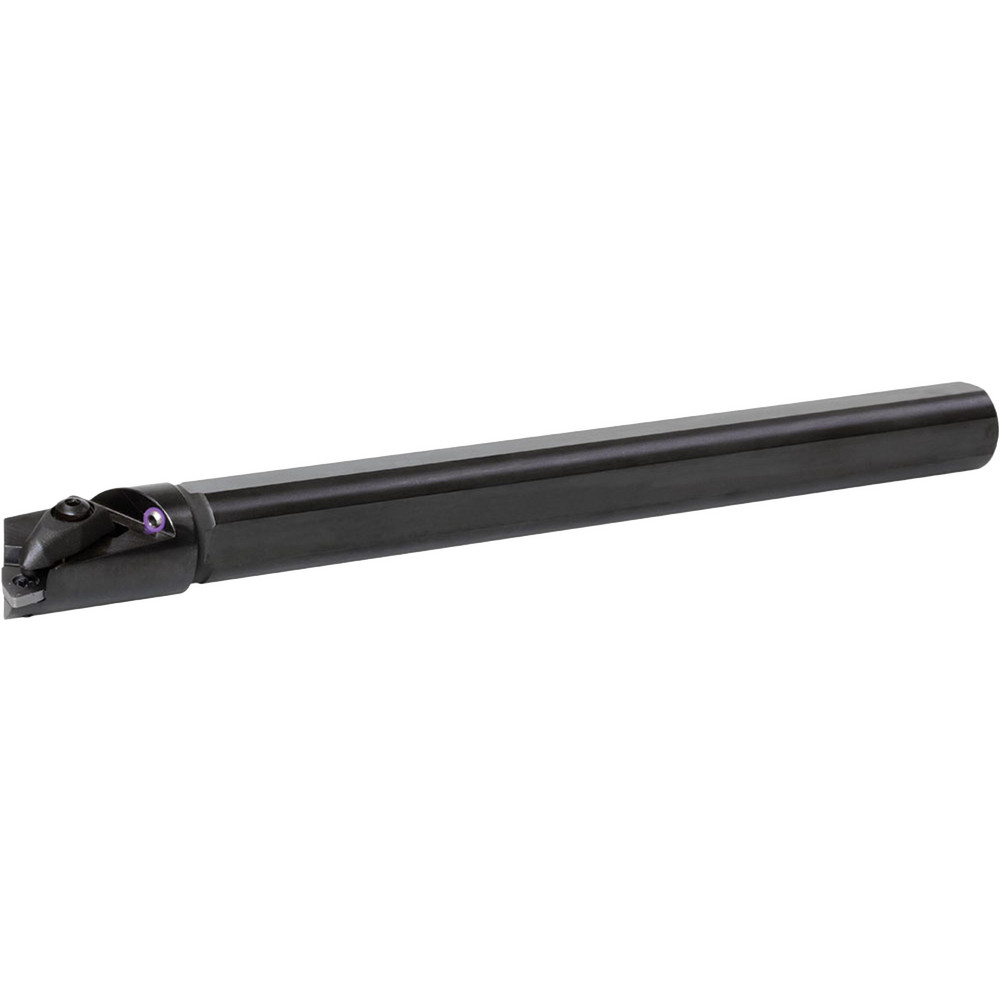

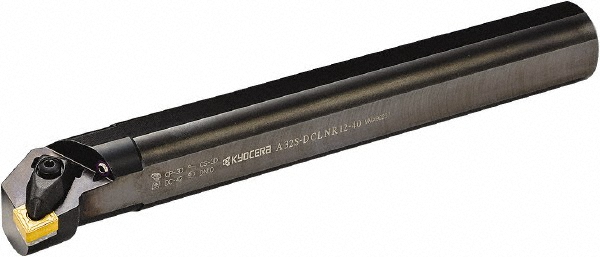

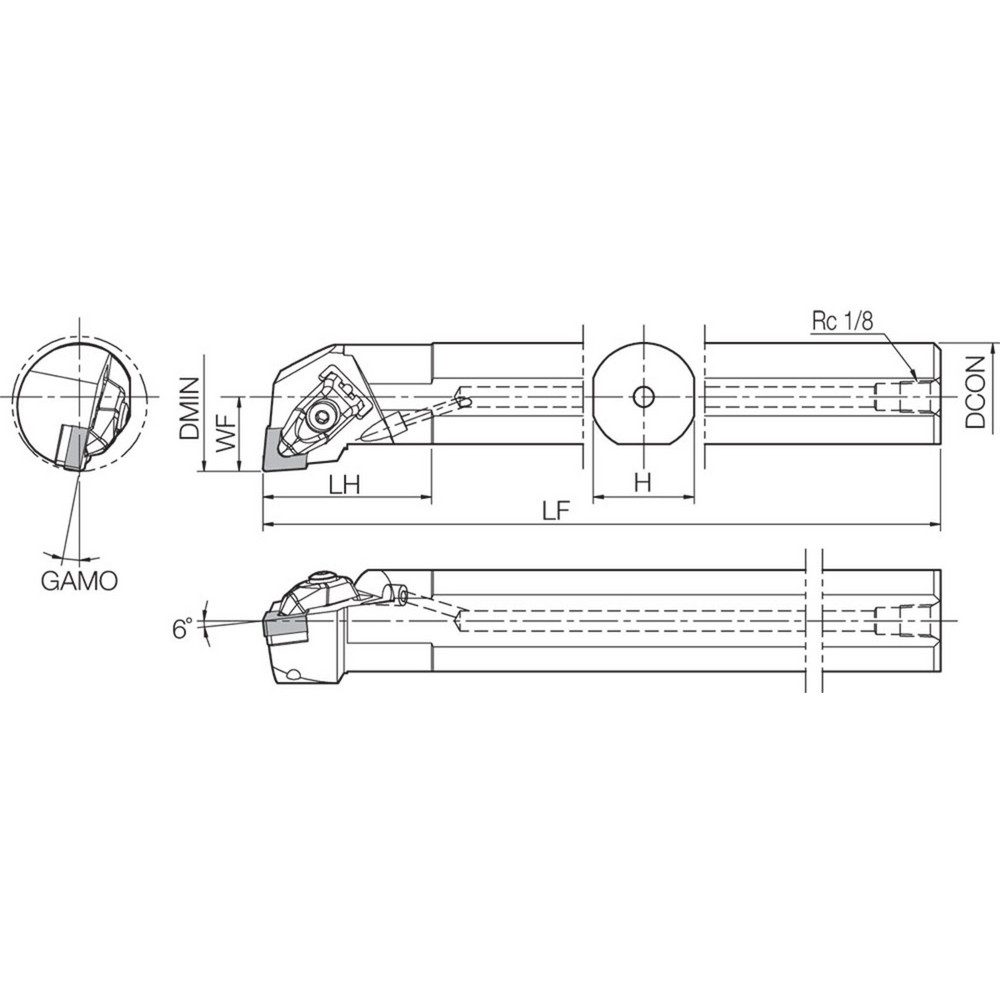

12.0000" OAL, Screw Clamping, Uses CNMG 43.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.5000 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.6140 |
| Toolholder Style | DCLN |
| Tool Material | Steel |
| Insert Compatibility | CNMG 43.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 12.0000 |
| Compatible Insert Size Code | 43 |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -11.00 |
| Lead Angle | 5 |
| Series | DBCB |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Facing; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50479682 |
