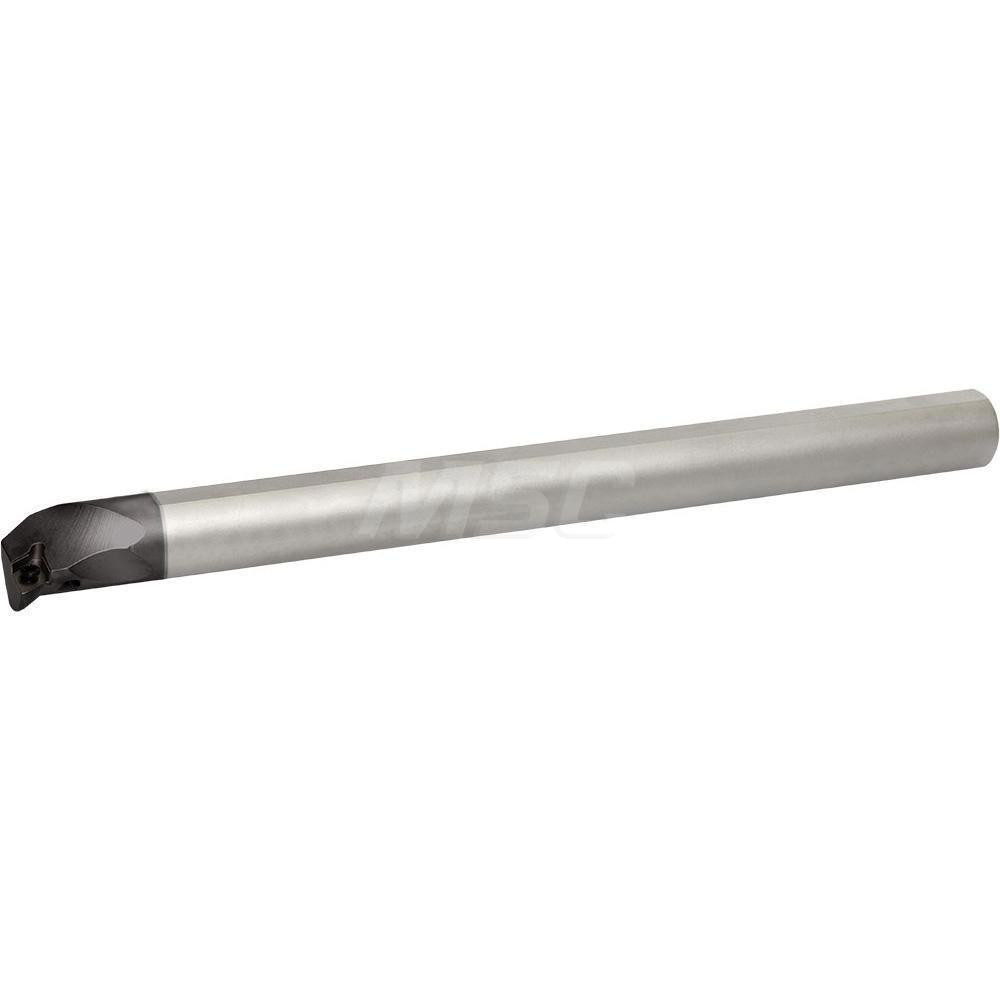

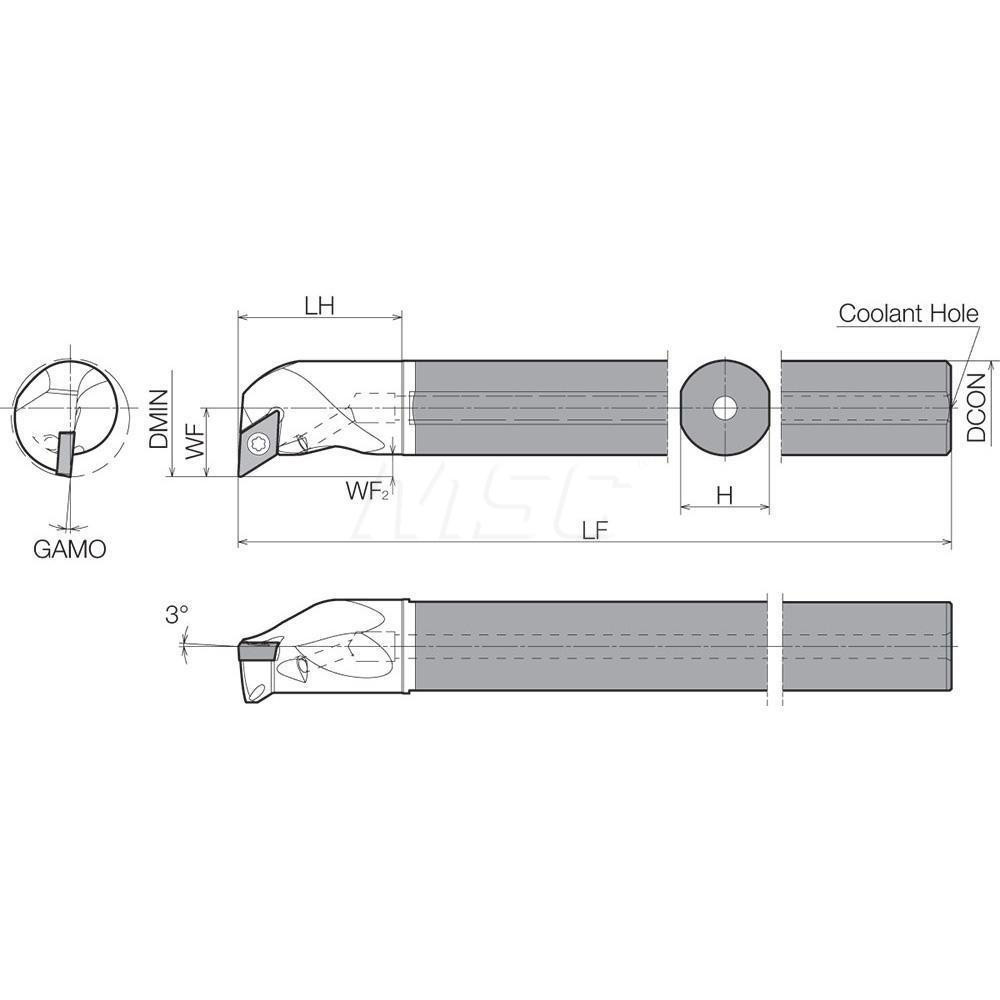

160.00 mm OAL, Screw, Uses DCGT 215.., DCGW 215.., DCMT 215.. & DCMW 215.. Inserts
| Minimum Bore Diameter (mm) | 13.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.5118 |
| Maximum Bore Depth (Decimal Inch) | 0.5118 |
| Maximum Bore Depth (mm) | 13.00 |
| Toolholder Style | S-SDQC-A |
| Tool Material | Solid Carbide |
| Insert Compatibility | DCMW 215..; DCGW 215..; DCGT 215..; DCMT 215.. |
| Shank Diameter (mm) | 10.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 6.2992 |
| Overall Length (mm) | 160.00 |
| Compatible Insert Size Code | 215 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -10.00 |
| Lead Angle | 17.5 |
| Series | Dynamic Bars |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | Yes |

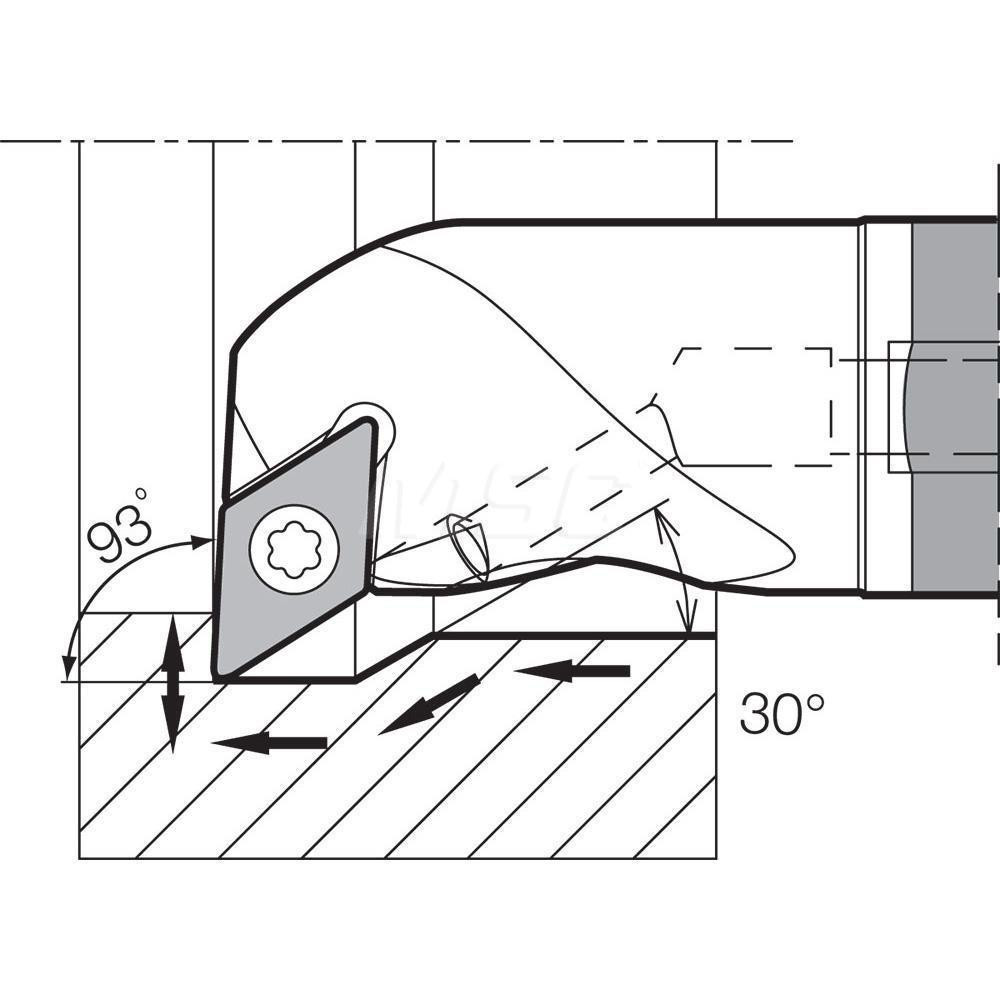

| Cutting Tool Application | Copying; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2953 |
| Center to Cutting Edge (mm) | 7.50 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Coolant Hole Diameter (mm) | 3.00 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 68160407 |
