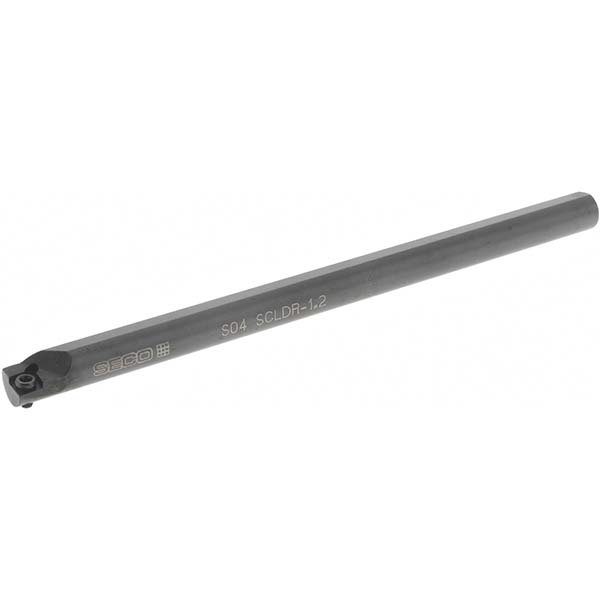

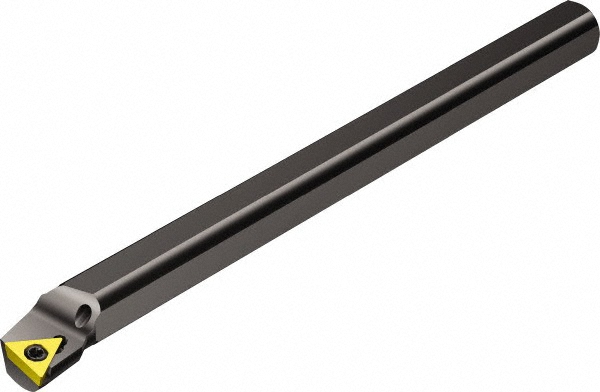

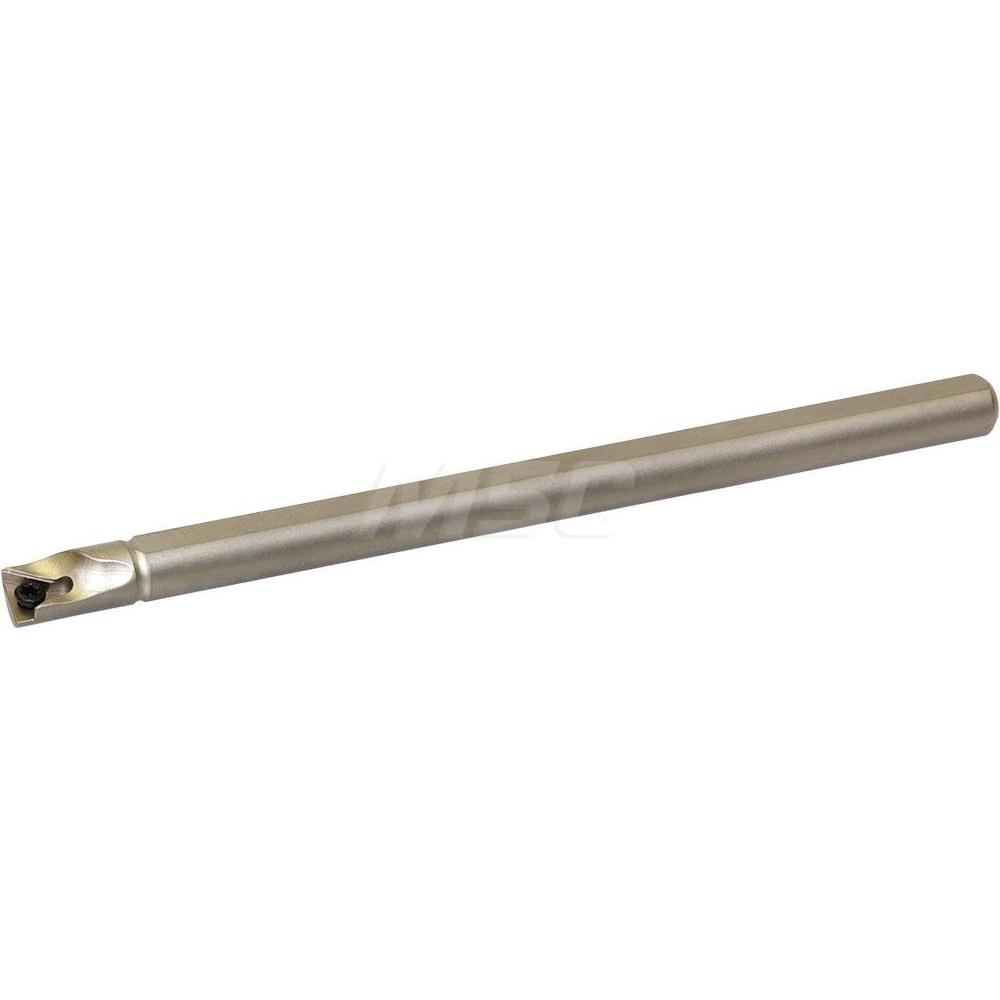

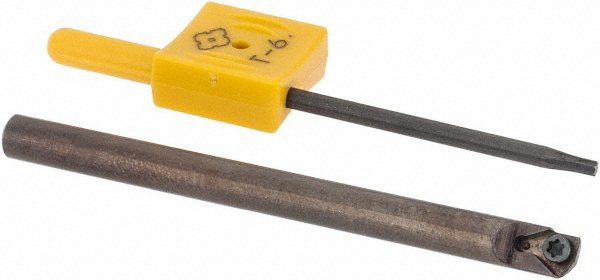

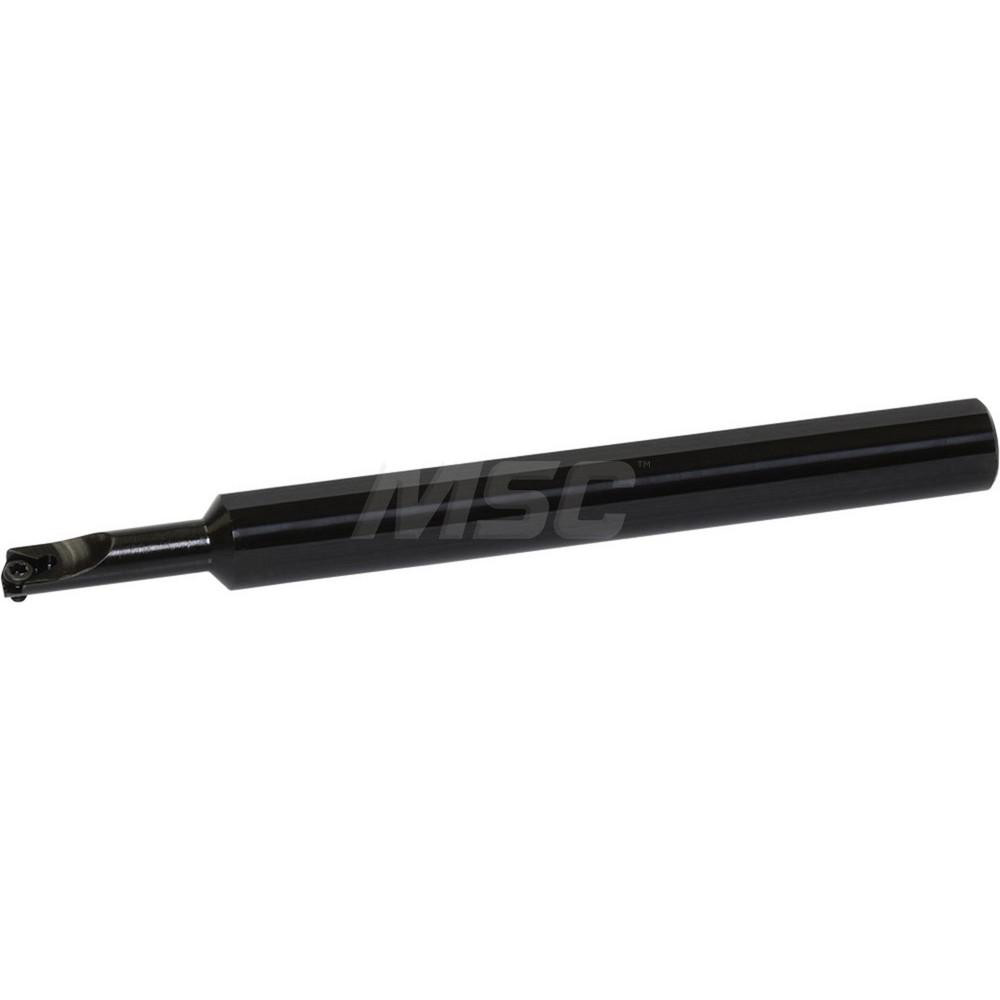

4.0000" OAL, Screw, Uses TBGT 121.., TBGW 121.. & TBMT 121.. Inserts

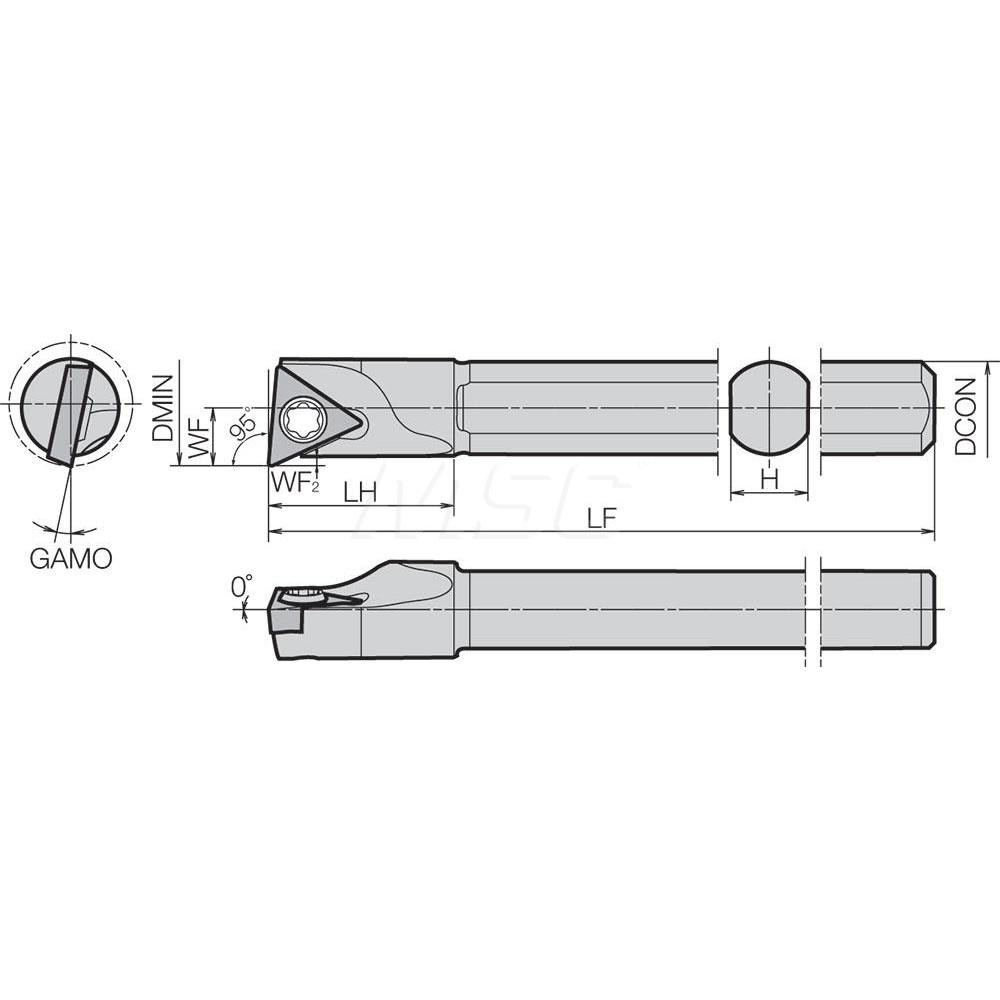

| Minimum Bore Diameter (Decimal Inch) | 0.3120 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 0.4720 |
| Toolholder Style | A/S-STLB(P)-AE |
| Tool Material | Steel |

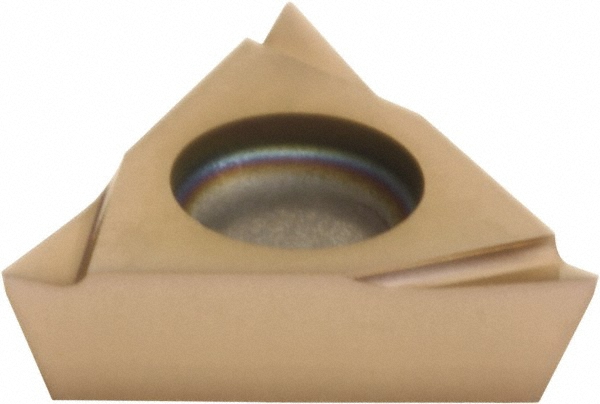

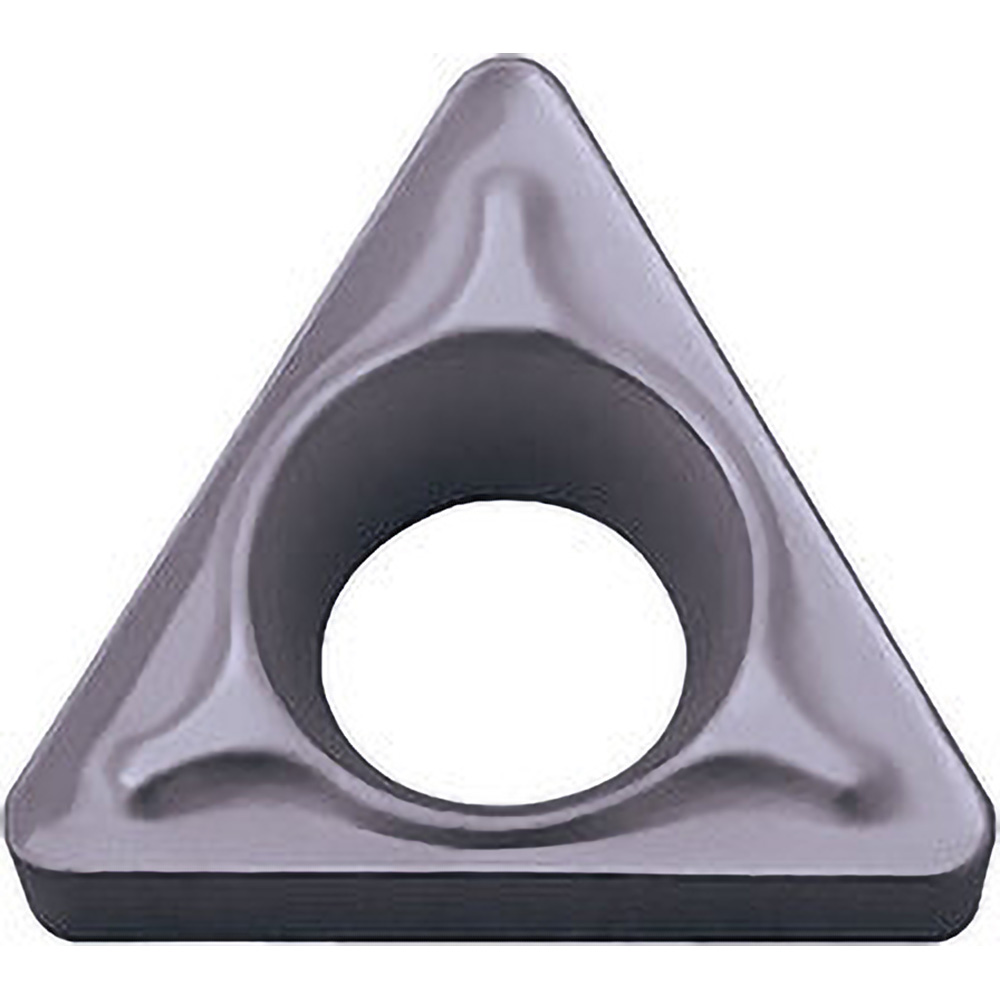

| Insert Compatibility | TBGT 121..; TBGW 121..; TBMT 121.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Compatible Insert Size Code | 121 |

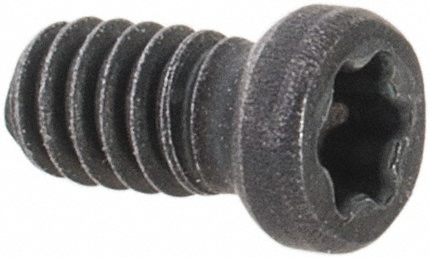

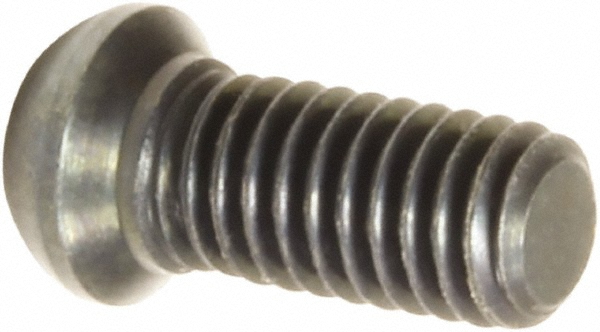

| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Rake | Negative |
| Rake Angle | -12.00 |

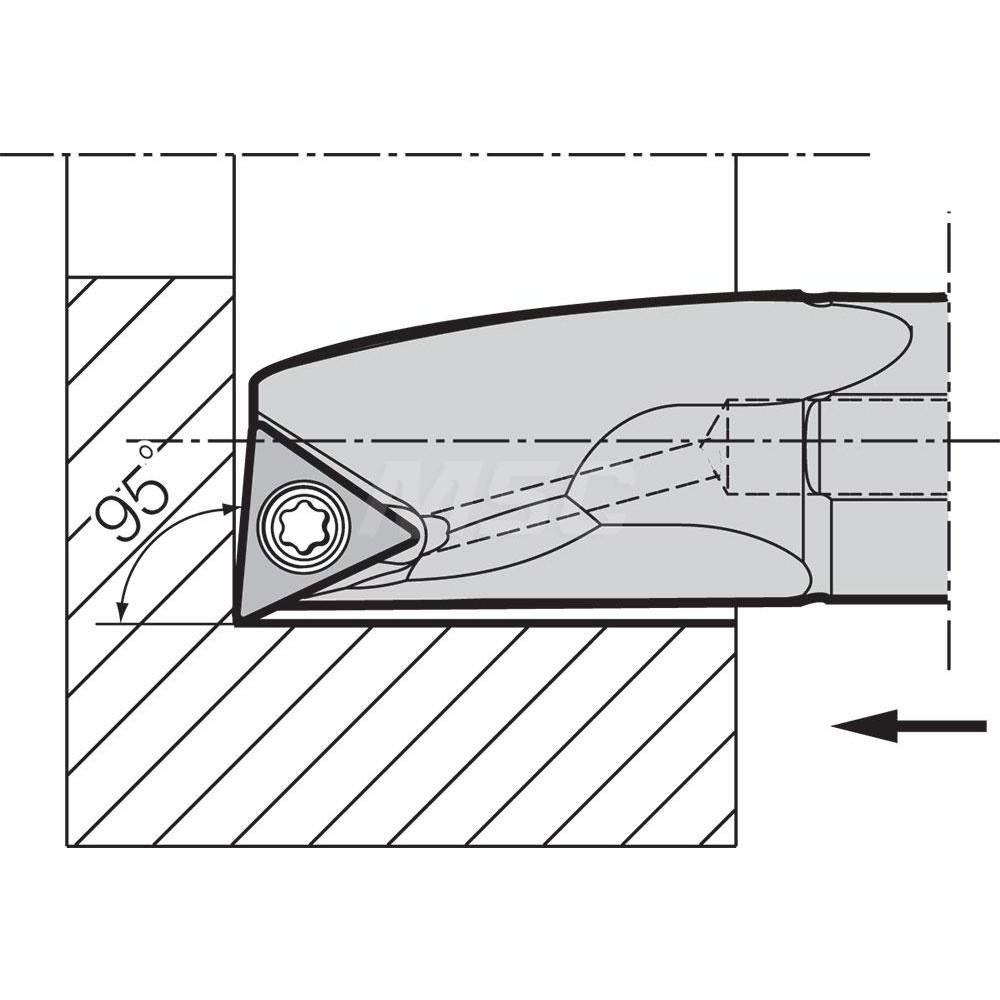

| Lead Angle | 5 |
| Series | DYNB |
| Insert Inscribed Circle (Inch) | 5/32 |
| Insert Inscribed Circle (Decimal Inch) | 0.1563 |
| Compatible Insert Thickness (Decimal Inch) | 0.0625 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Facing; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1500 |
| Standards | ISO; ANSI |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0625 |
| Insert Thickness (Inch) | 1/16 |
| Coolant Through | No |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 45073343 |
