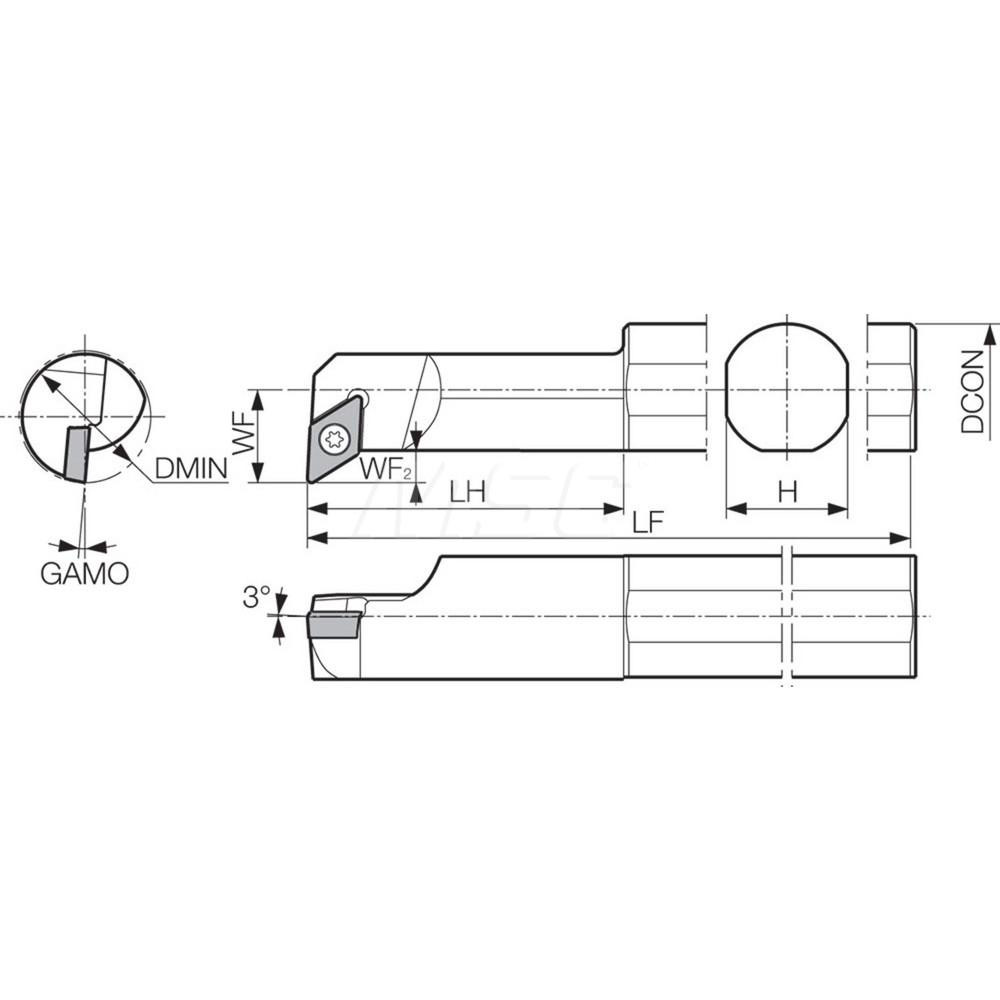

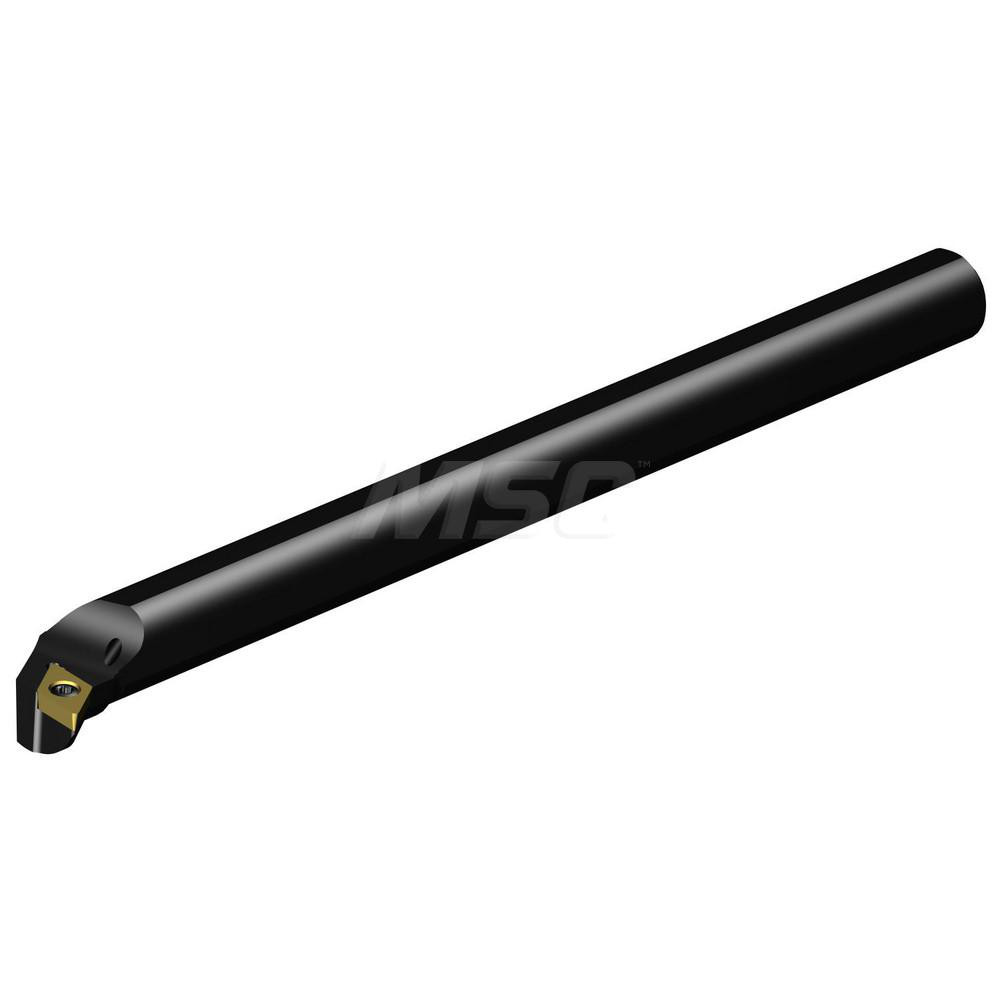

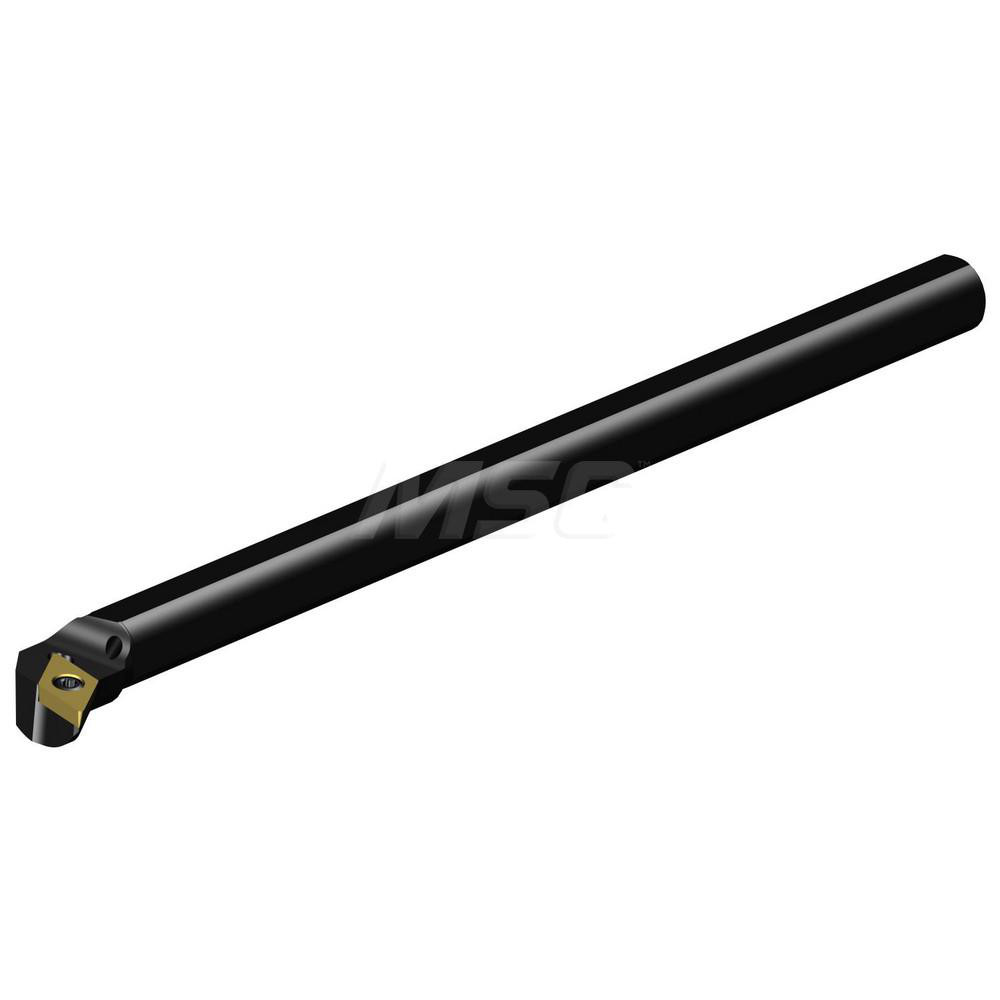

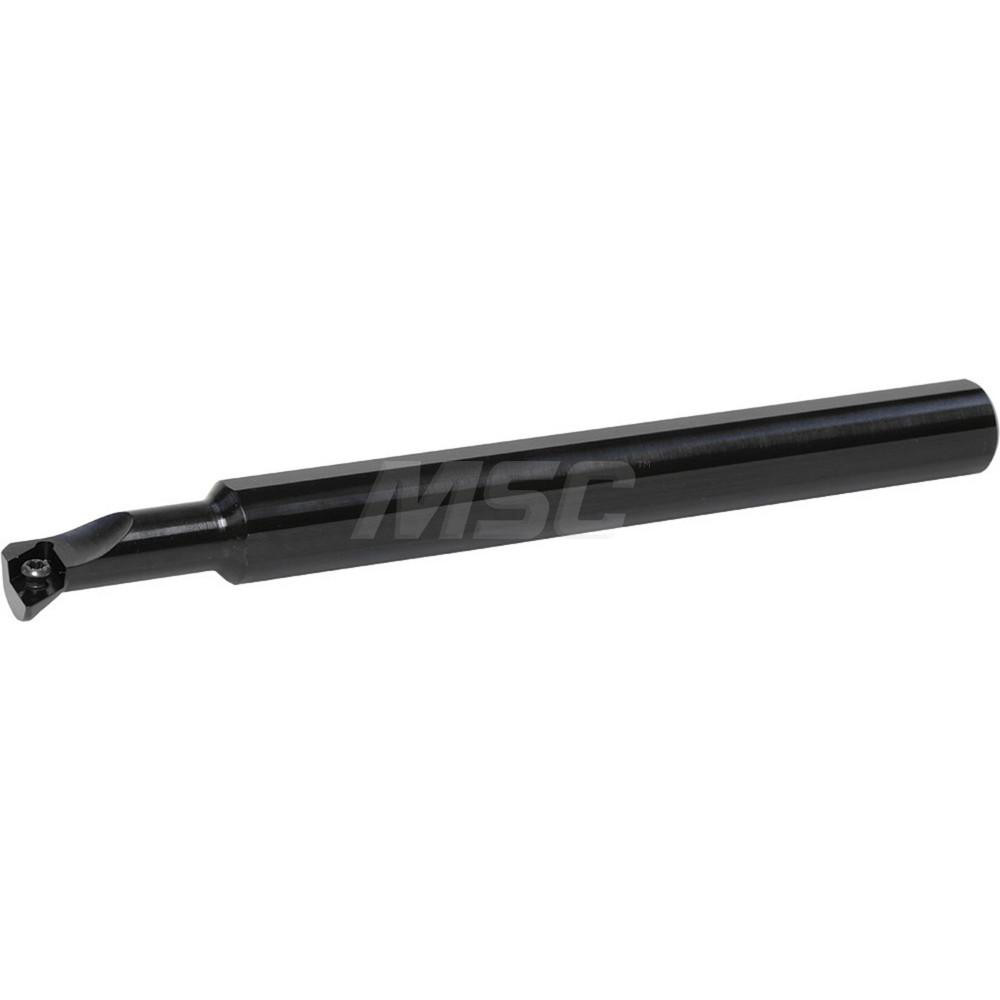

8.0000" OAL, Screw, Uses DCGT 325.., DCGW 325.., DCMT 325.. & DCMW 325.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.7500 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.5000 |
| Toolholder Style | S...SDUC |
| Tool Material | Steel |

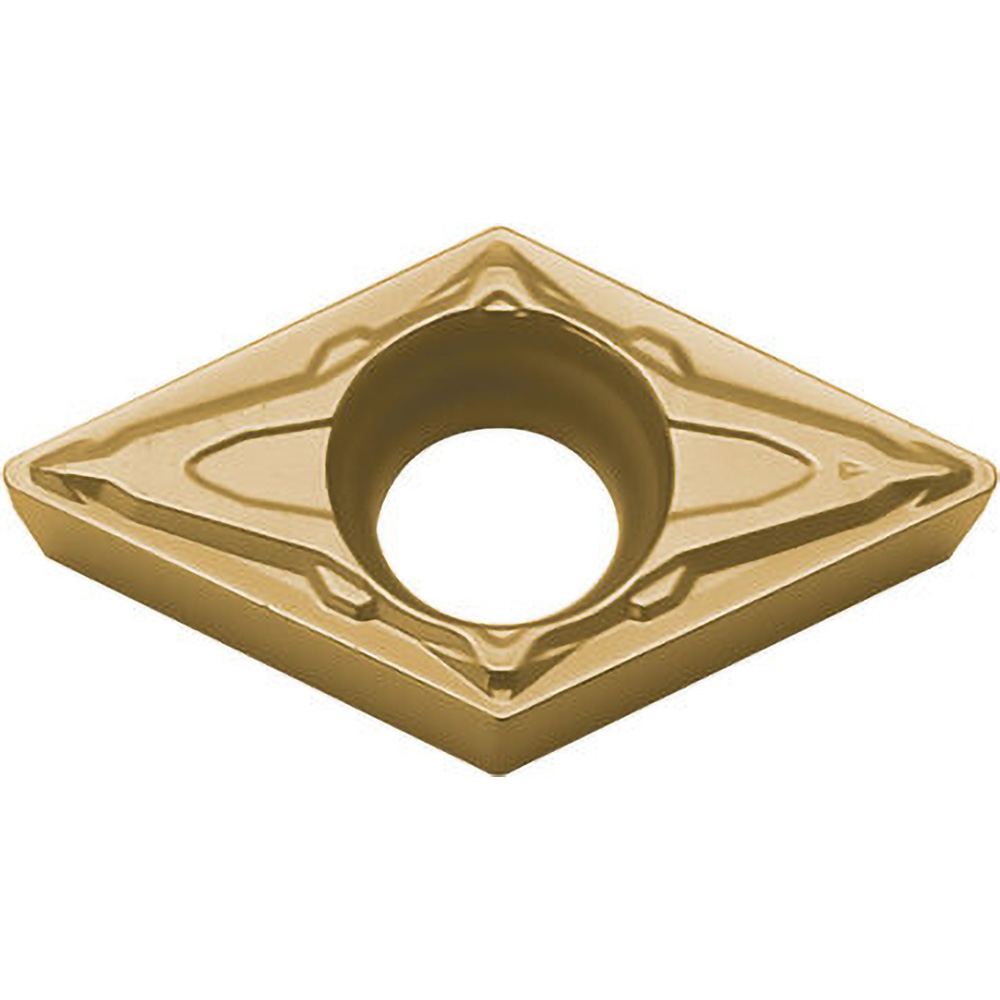

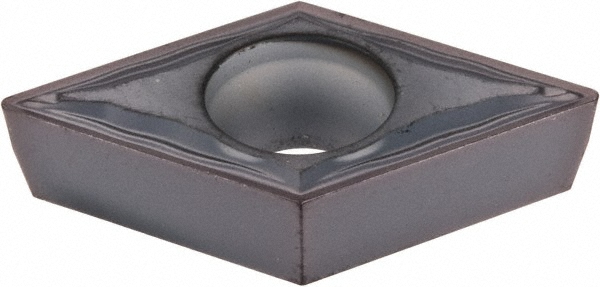

| Insert Compatibility | DCGW 325..; DCGT 325..; DCMW 325..; DCMT 325.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 8.0000 |
| Compatible Insert Size Code | 325 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -5.00 |

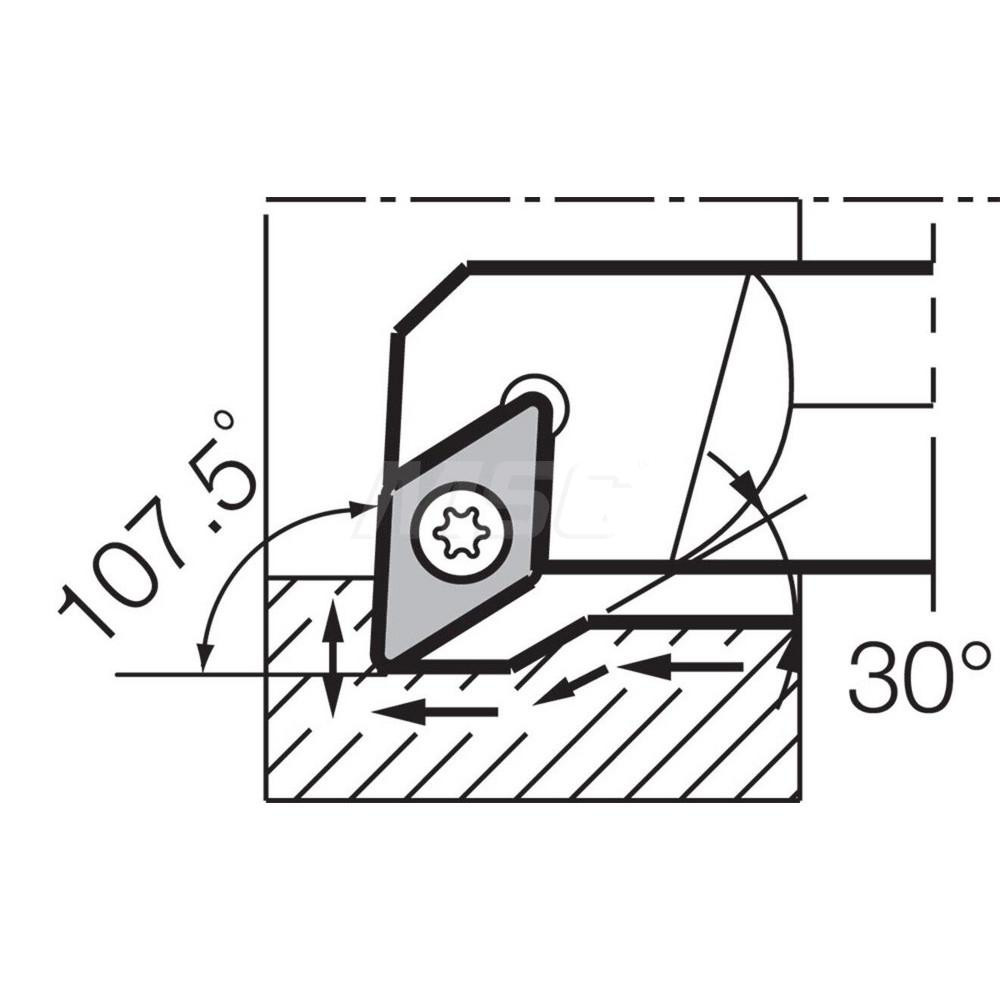

| Lead Angle | 3 |
| Series | GPBB |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1563 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Copying; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.4760 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Coolant Through | No |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 50454123 |
