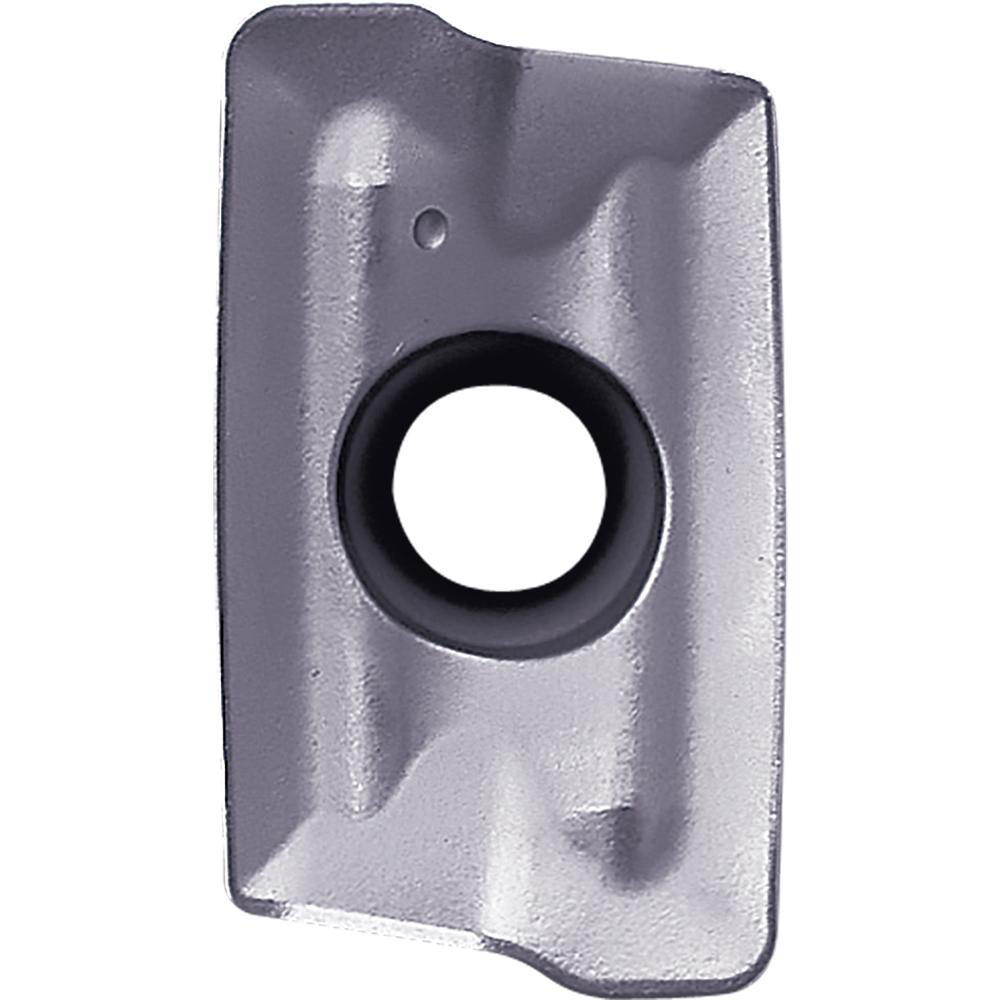

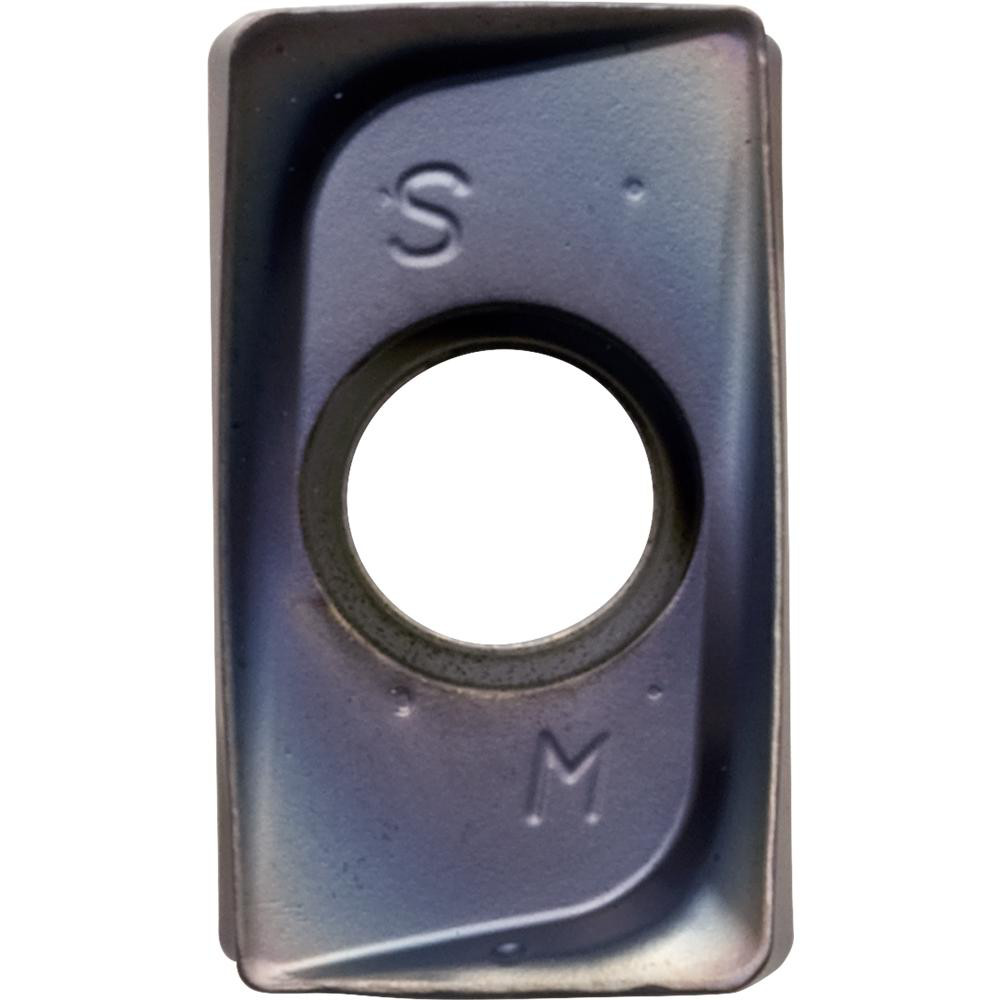

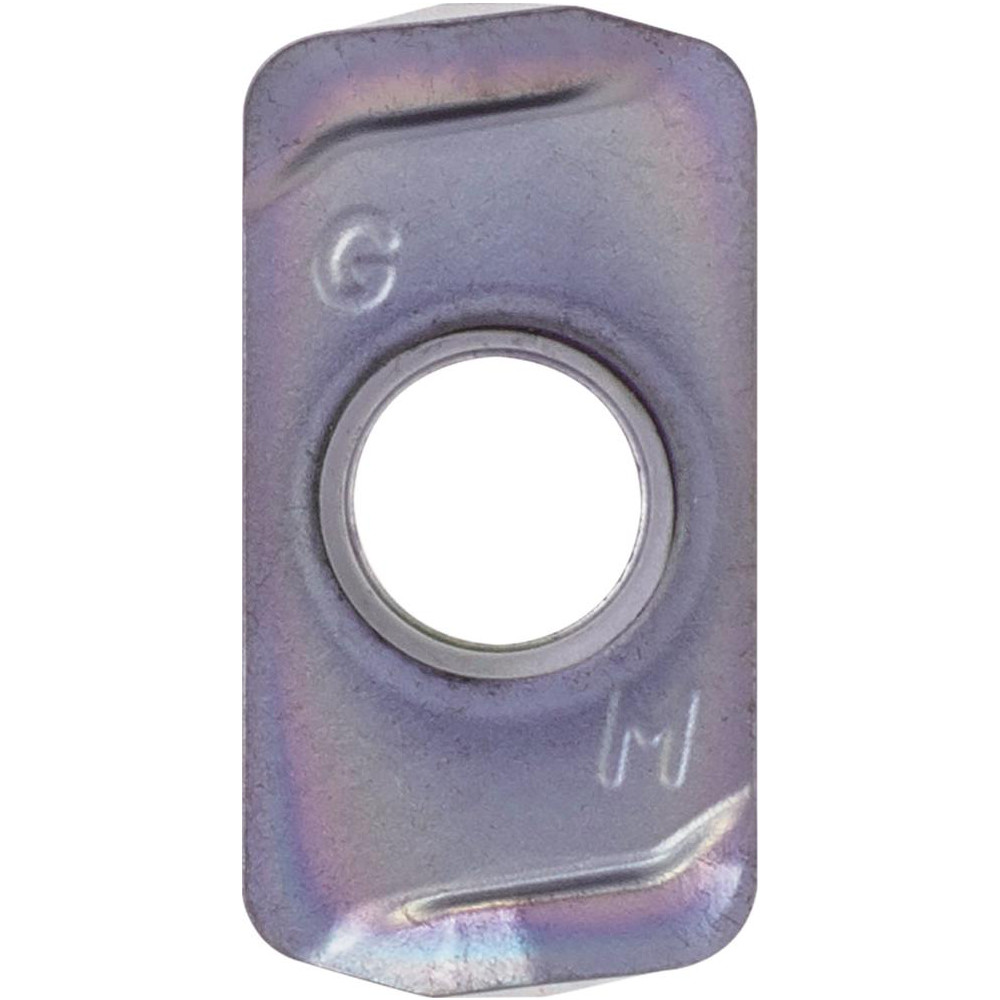

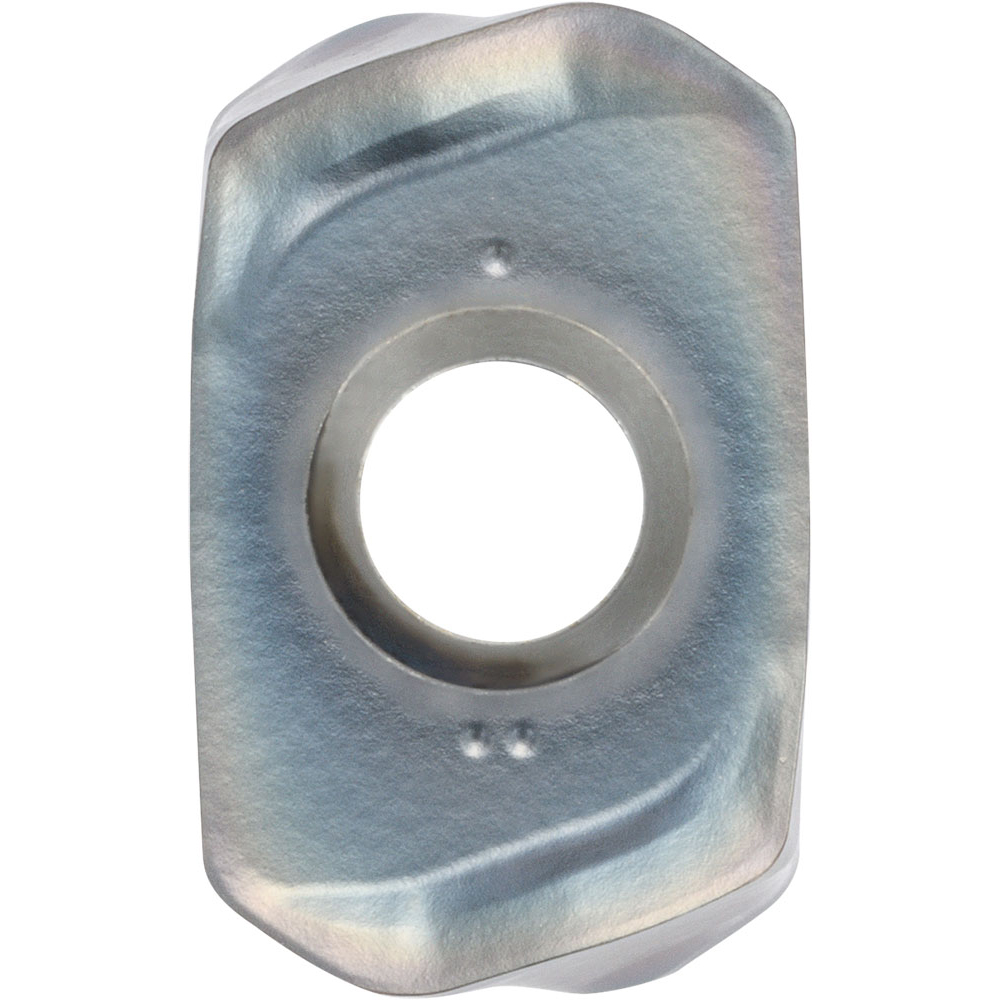

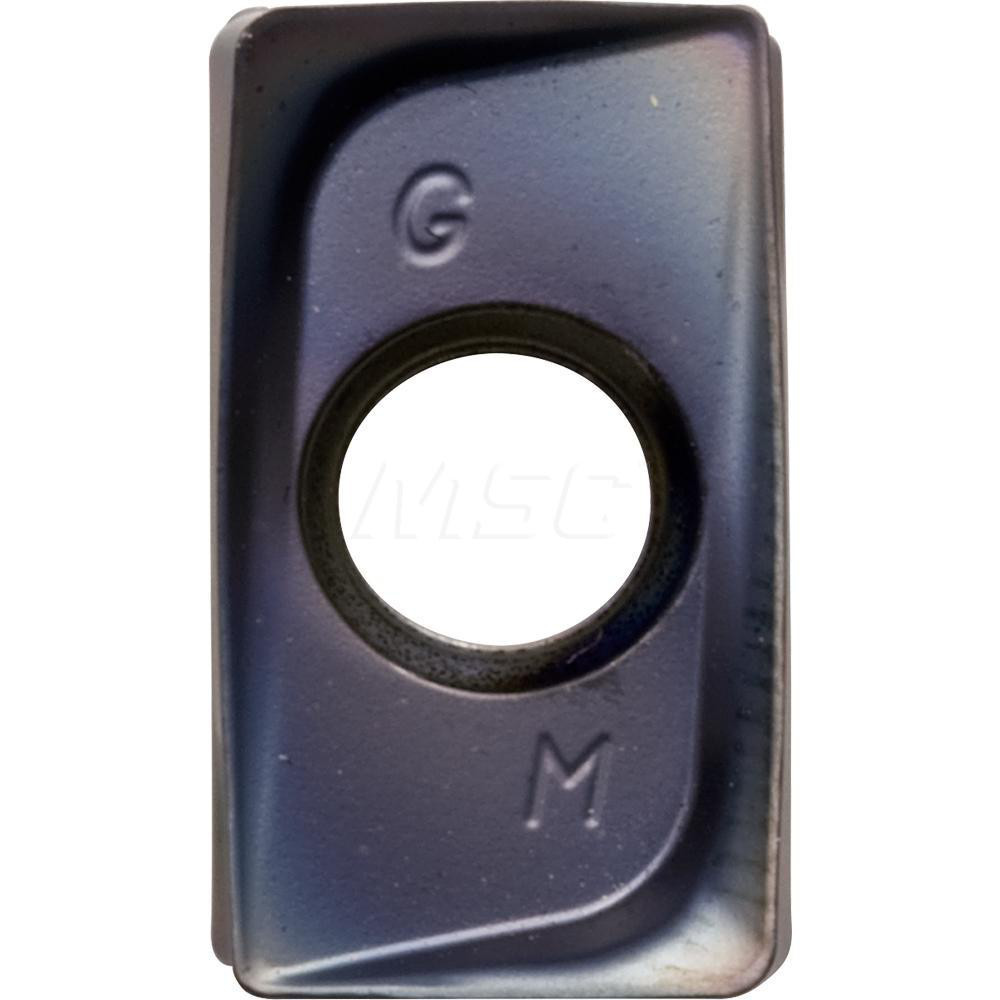

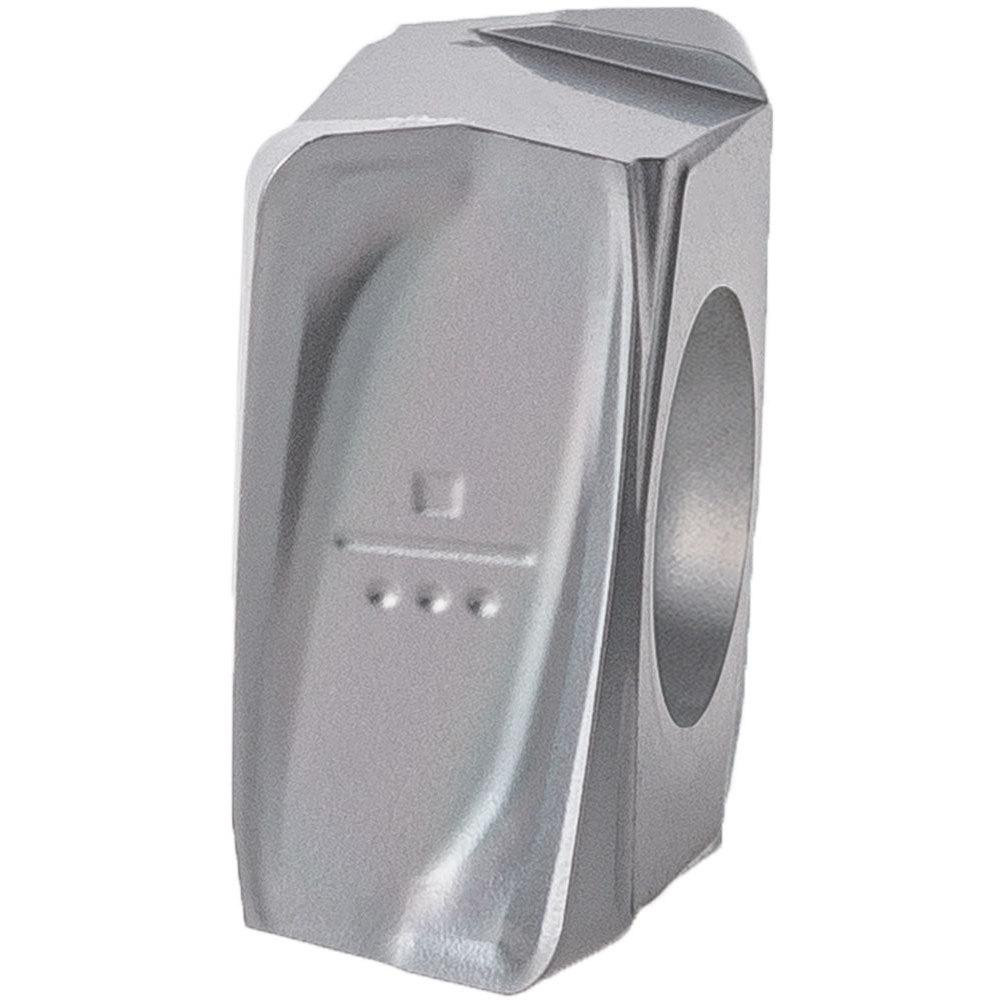

MEGACOAT NANO EX Finish, 4.4000 mm Thick, 9.10 mm Wide
| Insert Style | LOMU |
|---|---|
| Insert Size | 040410 |
| Insert Material | Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1732 |
| Thickness (mm) | 4.4000 |
| Coating/Finish | MEGACOAT NANO EX |
| Insert Hand | Right Hand |
| Series | MFH-Max Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.1000 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Cutting Edge Effective Length (mm) | 14.50 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5709 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | LOMU040410ERGMPR1825 |
| Iso Code | LOMU040410ER-GM |
| Manufacturers Catalog Number | LOMU040410ERGMPR1825 |
| Chip Breaker | ER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3583 |
| Width (mm - 2 Decimals) | 9.10 |
| Multi-Use Tool | Yes |
| undefined | undefined |
| MSC Number | MSC# 86598141 |
